Default DIN Rail control panel users, let's see em!

I'm planning on rewiring my control panel and I'm hoping to clean it up a bit, so I'm interested in seeing any pictures of your control panels that use DIN Rails.

Anyone?

__________________
NinjaJoe is offline

Reply With Quote Quick reply to this message
Old 02-22-2012, 05:40 PM   #2
moparx12
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2010
Location: charlotte
Posts: 186
Default

i have one just havnt mounted it in there yet. Ill get you a pic when i do!

__________________
moparx12 is offline

Reply With Quote Quick reply to this message
Old 02-22-2012, 06:53 PM   #3
CidahMastah
Feedback Score: 2 reviews

CidahMastah's Avatar
Recipes

Join Date: Nov 2010
Location: , New York
Posts: 4,266
Liked 33 Times on 31 Posts
Likes Given: 17

Default

Post #503 -The tapped holes are for two more contactors. Of course it isn't wired up yet, but that is simply because I am wrapping up painting on the control box first.
__________________

Man,... That's a lotta hooch!
Steel rig in progress
ebuild info

CidahMastah is offline

Reply With Quote Quick reply to this message
Old 02-24-2012, 11:05 AM   #4
NinjaJoe
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: Columbia
Posts: 142
Likes Given: 2

Default

Anyone else?

__________________
NinjaJoe is offline

Reply With Quote Quick reply to this message
Old 02-24-2012, 09:58 PM   #5
HHP
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Harker Heights, Texas
Posts: 374
Liked 6 Times on 5 Posts
Likes Given: 2

Default

I have a din rail running through the middle of my panel, with non din rail items on the sides of it.

__________________

Texas is awesome.

HHP is offline
Bigscience Likes This
Reply With Quote Quick reply to this message
Old 02-24-2012, 10:15 PM   #6
Monster Mash
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2006
Location: Castaic, CA
Posts: 1,322
Liked 85 Times on 66 Posts
Likes Given: 12

Default

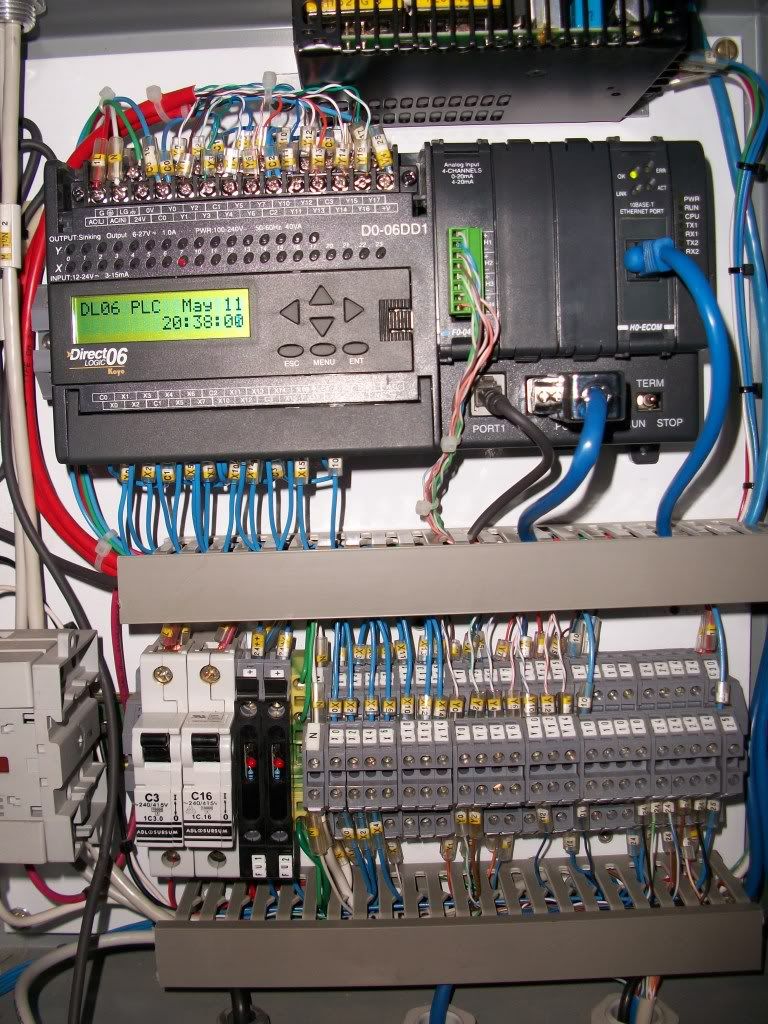

Here is mine...



__________________
My 1BBL Brewery Pics
Monster Mash is offline

Reply With Quote Quick reply to this message
Old 02-24-2012, 11:25 PM   #7
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,276
Liked 60 Times on 51 Posts
Likes Given: 119

Default

Quote:
Originally Posted by NinjaJoe View Post
I'm planning on rewiring my control panel and I'm hoping to clean it up a bit, so I'm interested in seeing any pictures of your control panels that use DIN Rails.

Anyone?
My brewing assistant, nothing special.
Gas fired brewery





Cheers,
ClaudiusB
__________________
My Brewery Pics
Grain Mill Glycol Chiller
Keg Washer
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 02-25-2012, 11:49 AM   #8
stlbeer
Senior Member
Feedback Score: 0 reviews

stlbeer's Avatar
Recipes

Join Date: Jan 2008
Location: Fenton, MO
Posts: 882
Liked 33 Times on 32 Posts
Likes Given: 83

Default

Thanks for starting this thread! I've been curious about a couple of different items regarding these DIN rail mounted components.

The terminal blocks. How do those work when ganged together? Can they be used to distribute power? Or don't they work that way? I'm looking at power distribution blocks and those are kind of pricey. If these terminal blocks can be used to distribute power in my control panel then I'd rather go with that.

__________________
My RIMS eBrewery build
stlbeer is offline

Reply With Quote Quick reply to this message
Old 02-25-2012, 11:56 AM   #9
Rbeckett
Feedback Score: 0 reviews

Rbeckett's Avatar
Recipes

Join Date: Dec 2011
Location: Bronson, Fl
Posts: 986
Liked 63 Times on 46 Posts
Likes Given: 29

Default

Two thumbs up on this thread. Since I am going to be building soon enough I have been looking for inspiration and ideas to "borrow" for my panel. I am pretty sure I want actual temp and target temp stacked one on top of the other. Then a pilot lite if that circuit is active and a burner on lite. I would like to include a timer that goes both ways and can signal when it is time to do something different like move wort, or initiate sparging or drain of Vorlauf. Lots of different possibilities just dont need it too complex and definately not usefull if it is too primitive, Keep the pics coming please. Thanks!!!!
Stuck in the wheelchair Bob

__________________

What do you mean "no Kidneys"???, WTF now I gotta drink less beer...
Join the Automation sub forum in Electric brewing for a discussion of components and control systems. I did!!!!

Rbeckett is offline

Reply With Quote Quick reply to this message
Old 02-25-2012, 02:31 PM   #10
WPStrassburg
Feedback Score: 2 reviews
Recipes

Join Date: Sep 2008
Location: Rochester, NY
Posts: 491
Liked 21 Times on 18 Posts
Likes Given: 1

Default

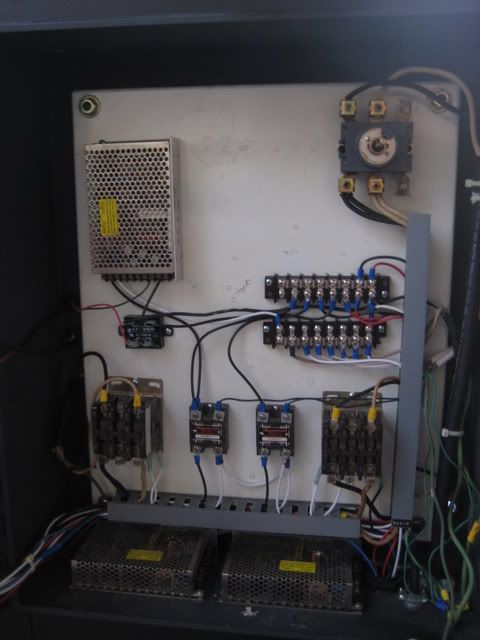

Here's the start of mine. Still have to add the ground bus.

Terminal strips, ssrs, fuses, & breakers are the only things on DIN rail and the rest is screwed to the backboard.
