Default Best/Safest Method of installing an Element

I have been reading through the electric forum and others for some time. I keep vacillating between propane and electric.

I finally (maybe) have decided to move over to electric.

I know there are a ton of ways to install an element, and I'm sure they all have some inherent risk.

Regardless of what method you personally use, what is the best or rather safest method of installing an element into a brew pot/kettle?

Regards,

Chris

__________________
goybar is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 01:24 AM   #2
mux
Feedback Score: 3 reviews
Recipes

Join Date: Sep 2011
Location: Chicago, IL - Illinois
Posts: 1,878
Liked 67 Times on 55 Posts
Likes Given: 23

Default

I use these and couldn't be happier! But I have tri clover ferrules welded into my kettle.

http://www.brewershardware.com/TC15F10NPSCOV.html

__________________
mux is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 02:13 AM   #3
lschiavo
Drinks Beer
Feedback Score: 0 reviews

lschiavo's Avatar
Recipes

Join Date: Sep 2009
Location: Surrounded by Yoopers
Posts: 4,002
Liked 793 Times on 529 Posts
Likes Given: 547

Default

There are plenty of methods out there and as long as they keep water away from the connections, they should all work equally well.

I don't like the setups that rely on the element threads as a ground. My element is grounded by the threads and my kettles and stand is grounded with a wire and lugs. This is a key safety point that seems to get overlooked sometimes.

__________________
lschiavo is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 02:24 AM   #4
goybar
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2010
Location: Southern Maine
Posts: 253
Liked 6 Times on 6 Posts
Likes Given: 2

Default

Ischiavo, yes there are a lot of methods. Kal has one method, mux uses the brewewshardware method (pretty slick looking btw). That's kinda of where my question is coming from. There are a lot of methods that work, and work well. But is one method safer by its design?

I agree with your point on grounding.

As I have yet to start my "electric" project, I'm looking for the best way.

Ease/difficulty or $ not necessarily what I'm looking for. That informed decision will come later.

Chris

__________________
goybar is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 02:34 AM   #5
lschiavo
Drinks Beer
Feedback Score: 0 reviews

lschiavo's Avatar
Recipes

Join Date: Sep 2009
Location: Surrounded by Yoopers
Posts: 4,002
Liked 793 Times on 529 Posts
Likes Given: 547

Default

I tack weld the element nut to the back of a steel electrical box with a hole drilled in it to get the element connections inside the box. We have argued this point in a few other threads. I think it's inherently safer as any leak that occurs past the element threads cannot end up in the box as most other methods can. Mine is in the show us your element thread which you have probably seen.

__________________
lschiavo is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 02:43 AM   #6
goybar
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2010
Location: Southern Maine
Posts: 253
Liked 6 Times on 6 Posts
Likes Given: 2

Default

Yes, I did see it there. So the idea with yours is that if there is a leak it will hit the gasket and hopefully drop down to the outside of the electrical box/wires. Where as if you have the rubber gasket inside the box there is a potential to hit the wire.

Chris

__________________
goybar is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 02:56 AM   #7
lschiavo
Drinks Beer
Feedback Score: 0 reviews

lschiavo's Avatar
Recipes

Join Date: Sep 2009
Location: Surrounded by Yoopers
Posts: 4,002
Liked 793 Times on 529 Posts
Likes Given: 547

Default

Quote:
Originally Posted by goybar View Post
Yes, I did see it there. So the idea with yours is that if there is a leak it will hit the gasket and hopefully drop down to the outside of the electrical box/wires. Where as if you have the rubber gasket inside the box there is a potential to hit the wire.

Chris
Exactly. You catch on quick. There was at least one thread shut down from arguing exactly that point...
__________________
lschiavo is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 02:56 AM   #8
Dert
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Mpls, Mn
Posts: 93
Liked 14 Times on 10 Posts
Likes Given: 1

Default

I used a NEMA 4x SS box on mine. Sandwiched between a silver soldered SS nut and the water heater element gasket.

Works great and safe...grounded the box, kettle and my stand.



__________________
Dert is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 07:47 PM   #9
-TH-
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: Zeeland, Michigan
Posts: 981
Liked 62 Times on 37 Posts
Likes Given: 2

Default

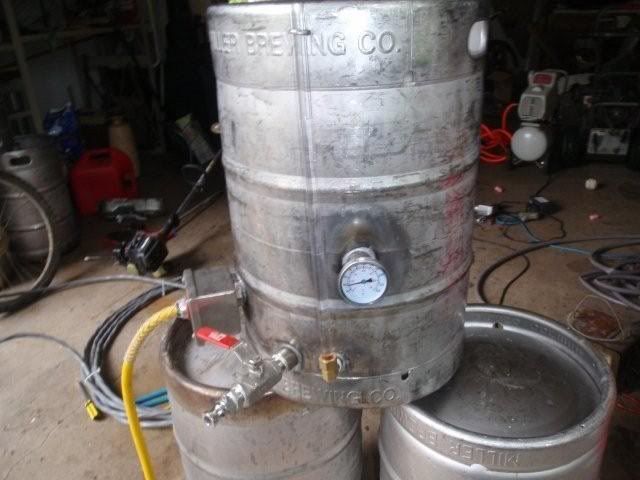

I am also in the "keep your element threads/nut outside of your enclosure" camp. I haven't posted mine in the show me your element thread because I'm not quite done yet, but here's what I've got so far:

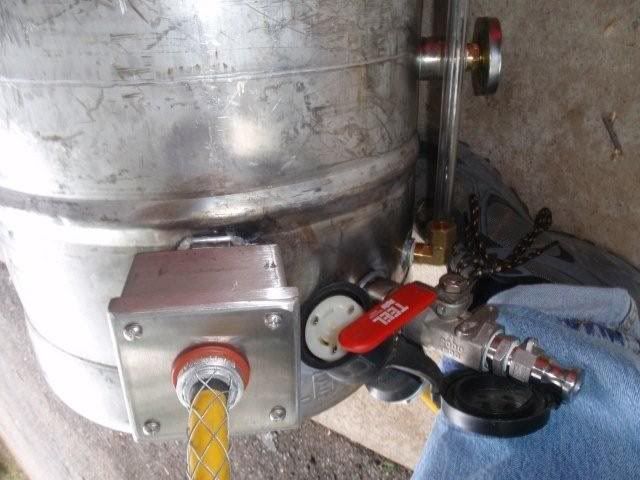

Boxes are reclaimed junction boxes off scrap electric motors, modified to take a cover on both sides. I drilled a hole in the cover for the element contact block to fit through, then welded the element nut to the outside. I put a bead of silicone sealant on the inside of the cover around the contact block just for good measure.

__________________
TH

Builds, etc: E-Brewery | Pneumatic Bottle Capper | Fermentation Chamber | Stirplate | Bottle Cabinet
Water Spreadsheet: www.EZWaterCalculator.com
-TH- is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 11:24 PM   #10
lschiavo
Drinks Beer
Feedback Score: 0 reviews

lschiavo's Avatar
Recipes

Join Date: Sep 2009
Location: Surrounded by Yoopers
Posts: 4,002
Liked 793 Times on 529 Posts
Likes Given: 547

Default

Looks good TH. Nice looking cord connectors too. Where are those from?
