Default BCS Temp probe to Cat5e Help

I bought several of these bad boys for my BCS-462 control panel build:

http://www.brewershardware.com/4-Tem...r-BCS-460.html

From ebrewsupply.com, I got the idea to tie these into a Cat5e plug to ultimately run to my BCS (see http://www.ebrewsupply.com/controlle...-4in-temp.html). I didn't want to run the temp probes directly to my BCS since I was afraid they would get ripped out.

How exactly do I do this?

The temp probes are 22 gauge (2 wires only I think), but how do I connect to a Cat5e? Do I just need the end crimps? Or do I need to splice to an ethernet cord? Also how would I then connect the female Cat5e receptacle to the BCS?

Sorry for the noob questions. Please help!

__________________
THIRD LEAP BREWING CO. www.thirdleapbrew.com

Visit my website for the list of beers in progress
kaz4121 is offline

Reply With Quote Quick reply to this message
Old 05-05-2013, 11:26 AM   #2
bullywee
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Greensboro NC
Posts: 186
Likes Given: 2

Default

just connect the probes to the BCS as they, works great!

__________________
bullywee is offline

Reply With Quote Quick reply to this message
Old 05-05-2013, 04:51 PM   #3
kaz4121
Feedback Score: 3 reviews
Recipes

Join Date: Jul 2010
Location: USA
Posts: 371
Liked 23 Times on 12 Posts
Likes Given: 3

Default

I know I can connect directly, I was trying to avoid this in case there was too much tension on the wire. I'd like to avoid a direct connect.

Any other suggestions?

__________________
THIRD LEAP BREWING CO. www.thirdleapbrew.com

Visit my website for the list of beers in progress
kaz4121 is offline

Reply With Quote Quick reply to this message
Old 05-05-2013, 08:38 PM   #4
luhrks
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Posts: 331
Liked 20 Times on 17 Posts
Likes Given: 10

Default

Easy peasy.

1. Get cat 5 ends and a crimper.
2. Insert the temp probe leads into any pair in the end (I use 4 and 5).
3. Crimp.

For the jack, just wire the same pair and connect one lead to your out, and one to the ground.


__________________
luhrks is offline

Reply With Quote Quick reply to this message
Old 05-06-2013, 03:15 AM   #5
kaz4121
Feedback Score: 3 reviews
Recipes

Join Date: Jul 2010
Location: USA
Posts: 371
Liked 23 Times on 12 Posts
Likes Given: 3

Default

@luhrks

I have these cat5e ends:http://www.ebrewsupply.com/more/xlr-...-crimp-on.html

And these cat5e receptacles: http://www.ebrewsupply.com/more/xlr-...connector.html

Couple of other questions:

1. How do I know which spots in the end correspond to the correct spots in the receptacle?
2. The numbers on the receptacle correspond to the appropriate spot right?
3. Do the receptacles need any other wiring besides the above?
4. Do I wire one of the wires to the corresponding temp in and one to the ground of the BCS?

Thanks for the help, I'm still learning obviously.

__________________
THIRD LEAP BREWING CO. www.thirdleapbrew.com

Visit my website for the list of beers in progress
kaz4121 is offline

Reply With Quote Quick reply to this message
Old 05-06-2013, 11:05 AM   #6
luhrks
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Posts: 331
Liked 20 Times on 17 Posts
Likes Given: 10

Default

Use slots 1 and 8 and you don't have to count.

The jack will be marked for 1 and 8 as well.

__________________
luhrks is offline

Reply With Quote Quick reply to this message
Old 05-07-2013, 01:05 AM   #7
garbageman
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: Lexington, SC
Posts: 153
Liked 7 Times on 7 Posts
Likes Given: 4

Default

Yes, use one and 8.

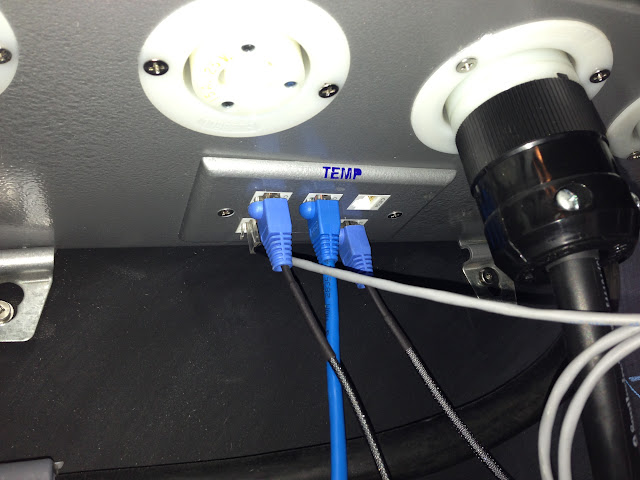

This is on the bottom of my ebrewsupply panel.

Outside, Bottom



Inside

__________________

My Electric Brewery Picasa Web Albums
Ratebeer profile: Ratebeer.com

garbageman is offline

Reply With Quote Quick reply to this message
Old 05-07-2013, 04:54 AM   #8
JonW
Feedback Score: 0 reviews

JonW's Avatar
Recipes

Join Date: Dec 2009
Location: Huntington Beach ☼
Posts: 1,468
Liked 97 Times on 59 Posts
Likes Given: 38

Default

I run 4 probes on my rig in a single CAT-5 cable. Ensure that you put a jumper wire at the BCS from the BCS ground to the AC ground. If you don't, you'll see fluctuations amplified in your temperatures (they'll bounce up & down).

__________________
Surf City Brewing (TM)

My Single Tier, 3 Pump, BCS-462, Brutus Build: http://www.homebrewtalk.com/f51/single-tier-3-pump-bcs-462-automated-rig-204705/
My customized BCS-462 controller web interface: http://www.homebrewtalk.com/f51/hacking-bcs-add-customized-web-pages-done-209388/
My 8 tap, 11 keg, upright Keezer build: http://www.homebrewtalk.com/f51/upright-keezer-8-taps-11-kegs-371438/
JonW is offline

Reply With Quote Quick reply to this message
Old 05-09-2013, 02:27 PM   #9
kaz4121
Feedback Score: 3 reviews
Recipes

Join Date: Jul 2010
Location: USA
Posts: 371
Liked 23 Times on 12 Posts
Likes Given: 3

Default

Where did you get your wire? I need to buy extra to run longer lengths and can't find it anywhere. Mine is 22 gauge with two conductors.

__________________
THIRD LEAP BREWING CO. www.thirdleapbrew.com

Visit my website for the list of beers in progress
kaz4121 is offline

Reply With Quote Quick reply to this message
Old 05-10-2013, 02:07 AM   #10
luhrks
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Posts: 331
Liked 20 Times on 17 Posts
Likes Given: 10

Default

Um. Get cat5 cable, cut ends off and take what you need.
