Default How do I install this weldless bulkhead?

I just received 2 weldless bulkheads with valves from bargainfittings.com. Each kit comes with the following parts:

2 inch barrel coupler with internal threading
hex nut
washer
external threaded pipe
valve
two rubber gaskets.

my question is where do the gaskets go? what order to the parts go in? where does the wall off the pot/keg go?

__________________
Dogphish is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:07 PM   #2
Dogphish
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Beach, VA
Posts: 654
Liked 6 Times on 5 Posts

Default

another thing i have to say is: why is the barrel so long? if i tilt the pot toward the valve to get the remaining water out, then this long barrel will be sticking up out of the water preventing me from pouring the remaining water. i have never used this thing and i already hate it.

__________________
Dogphish is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:12 PM   #3
Dogphish
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Beach, VA
Posts: 654
Liked 6 Times on 5 Posts

Default

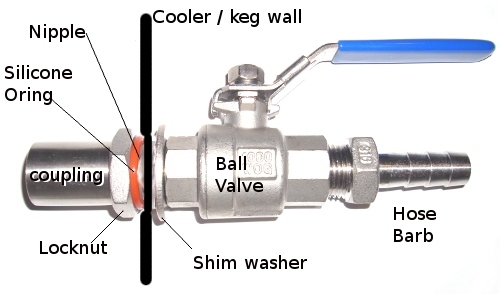

...just found this schematic on bargainfittings.com

can i just not use the coupling? i have nothing attaching to the inside of the pot, just the valve on the outside.

__________________
Dogphish is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:16 PM   #4
Rowdy
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Brick, New Jersey
Posts: 459
Liked 10 Times on 10 Posts
Likes Given: 2

Default

Quote:
Originally Posted by Dogphish View Post
another thing i have to say is: why is the barrel so long? if i tilt the pot toward the valve to get the remaining water out, then this long barrel will be sticking up out of the water preventing me from pouring the remaining water. i have never used this thing and i already hate it.
which is why most people use some sort of diptube attached on the inside, needs no tilting
__________________

Cruiscín Lán Grúdlann
In wine there is wisdom, In beer there is freedom, In water there is bacteria.

Rowdy is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:17 PM   #5
Myrdhyn
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: North Alabama
Posts: 303
Liked 1 Times on 1 Posts

Default

Coupling is for just that: Coupling something to the bulkhead. If you're not going to use any dip tube or other threaded attachment then yes, you can skip using it, but you can't skip the locknut and should definitley check to make sure it's secure BEFORE you put liquid in it when you brew.

__________________

Left tap: Myrd's IPA
Right tap: Heffeweizen
Kegged: Blimey's ESB, Apfelwein, Ed's Haus Pale Ale
Fermenting: Air, but soon to be Ode-to-Arthur and more Apfelwein.

Myrdhyn is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:18 PM   #6
wildwest450
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Posts: 9,099
Liked 165 Times on 150 Posts
Likes Given: 4

Default

Quote:
Originally Posted by Dogphish View Post
can i just not use the coupling? i have nothing attaching to the inside of the pot, just the valve on the outside.
You don't have to, but it's better to attach a dip tube to it so you can get most of the water out.
__________________
wildwest450 is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:19 PM   #7
Dogphish
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Beach, VA
Posts: 654
Liked 6 Times on 5 Posts

Default

this is the first i've heard about a diptube. any advice on the parts i need, where i can find them, and how to construct the diptube? thanks.

__________________
Dogphish is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:22 PM   #8
tasq
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Denver, Colorado
Posts: 582
Liked 12 Times on 12 Posts
Likes Given: 11

Default

Quote:
Originally Posted by Dogphish View Post
this is the first i've heard about a diptube. any advice on the parts i need, where i can find them, and how to construct the diptube? thanks.
They have them on the same site.
http://www.bargainfittings.com/index...&product_id=94

They also have a copper option for cheaper.
__________________
The Keg Ran Out Club
Broomfield, Colorado
http://www.kroc.org/
tasq is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:23 PM   #9
Dogphish
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Beach, VA
Posts: 654
Liked 6 Times on 5 Posts

Default

doh! thanks.

__________________
Dogphish is offline

Reply With Quote Quick reply to this message
Old 12-17-2010, 04:54 PM   #10
lostboysbrew
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Michigan
Posts: 246
Liked 3 Times on 3 Posts
Likes Given: 13

Default

much cheaper to go to homedepot........get a connection to attach to the coupling.......and then there is a copper tube that looks just like the dip tube that you can cut the one end off......$5 maybe.....alot cheaper

__________________
Lost Boys Brewing Company

Planning:Shadow Chaser Amber, ARRRR P.A., Oktoberfest (Yeast tests)
Primary:
Secondary:
Lagering:
Bottled/Kegged:Hook's Revenge 18.7% IIPA, Cinnamon Witbier, Blueberry Witbier
