Default Would this Chilling idea work?

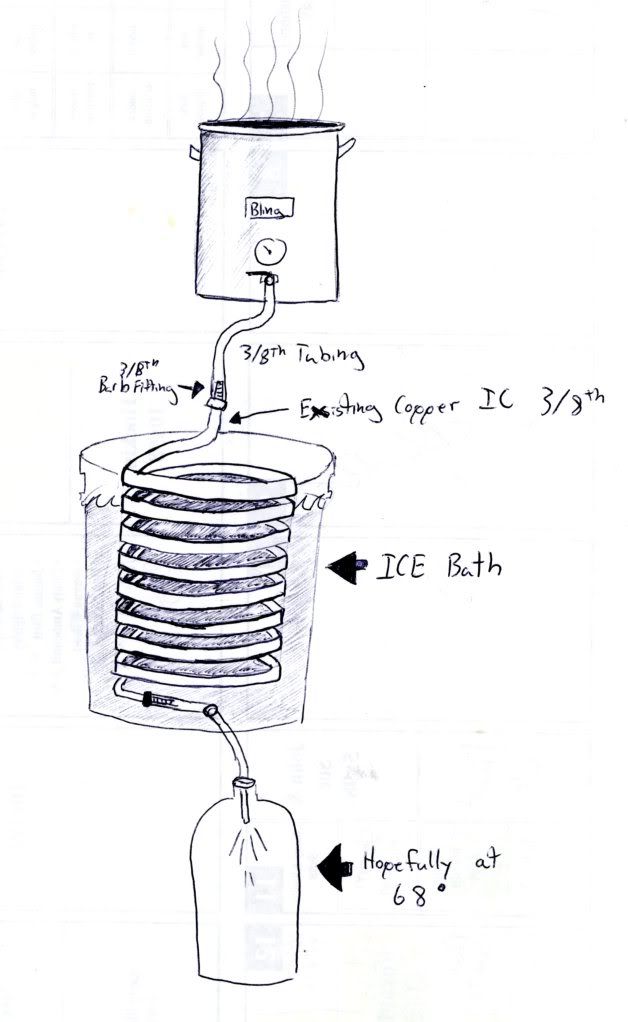

I think I'd rather do this then create a CFC, as long as it will work ofcourse.

The reason being I have my old bottling bucket sitting around; I never used it since I keg. Since it's taking up space anyway, I might as well put it to good use.

I will still need to re-coil my Immersion chiller to fit the bucket. Right now the coils are really close together, but i figure for the wort to effectively cool off they shouldn't be close together using this method. I want as much cold water surrounding the copper piping as possible.

Another reason, I think this will save water.


Quick question though. How do you assemble quick disconnects? I think it would be a good idea to have one on the hose connecting the BK to the chiller.
__________________
mhermetz is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 07:19 PM   #2
HomerJR
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2009
Location: Indiana
Posts: 309
Liked 3 Times on 3 Posts

Default

I think this would work great! I think you'd want to stir the ice bath while draining, that would maximize the cooling potential. And you're right, you'd only need about 5 gallons of water versus maybe 20-100 gallons (depending on tap water temp and flow rate).

Can't help you with the quick disconnects though. Sorry.

PS Like your drawing, and the proper labeling of "Bling"!

__________________
HomerJR is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 07:31 PM   #3
oceanselv
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Holly Springs, NC
Posts: 470
Liked 3 Times on 3 Posts
Likes Given: 2

Default

I've often thought of something similar. What stopped me I am not sure a 5 gallon container is enough ice water and the hassle of sanitizing the inside of the chiller and being very careful not to get any trub in the chiller, thereby creating a blockage.

__________________
Das Leben is zu kurz um schiess Bier zu trinken
oceanselv is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 07:33 PM   #4
shortyjacobs
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2009
Location: Twin Cities, MN
Posts: 2,511
Liked 29 Times on 29 Posts
Likes Given: 3

Default

That's gonna take a lot of ice.

Dropping 5.5 gallons of water from 212 to 68 F requires 7 million Joules. 7 million joules is roughly equivalent to melting 45 lbs of ice.

Granted, you'll have some water in there, and the ice will have to warm a bit to hit 32F, but figure on at least 40 lbs assuming for inefficiencies. That's what The Pol had to use for his Icy Herms.

Note also that 45 lbs of ice probably won't fit into a 5 gallon bucket with a coil in it, so you'll need a bigger bucket, or you'll need to be constantly adding new ice and draining off meltwater, but then you'll be losing more efficiency by dumping cool water.

__________________
Itchy Dog Brewery.

(As of 10-24-2011)
Primary - Steppe 112 PA, 2x Monday RyePA
Aging - None :-(
On tap - Big Dog, Apfelwein, Steppe 112 PA

My invisible AG sculpture, with no actual sculpture and a tiny footprint.
My Kegerator goes offroading!
My Coors Home Draft dispenser for boating/beering on the go.
shortyjacobs is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 07:35 PM   #5
IrregularPulse
Hobby Collector
Feedback Score: 0 reviews

IrregularPulse's Avatar
Recipes

Join Date: Nov 2007
Posts: 41,977
Liked 2747 Times on 2698 Posts
Likes Given: 110

Default

Quote:
Originally Posted by oceanselv View Post
I've often thought of something similar. What stopped me I am not sure a 5 gallon container is enough ice water and the hassle of sanitizing the inside of the chiller and being very careful not to get any trub in the chiller, thereby creating a blockage.
These concerns would be the same as if using the CFC, so not really a deal breaker.
__________________
Tap Room Hobo

I should have stuck to four fingers in Vegas. :o - marubozo
IrregularPulse is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 07:48 PM   #6
MonkeyWrench
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2009
Location: Republic of Cascadia
Posts: 349
Liked 2 Times on 2 Posts
Likes Given: 1

Default

Quote:
Originally Posted by HomerJR View Post
you'd only need about 5 gallons of water versus maybe 20-100 gallons (depending on tap water temp and flow rate).
For point of referance, the first 2 gallons I run through my IC is really hot and I save in the sink for clean up. When the temp drops, the next 5 gal goes into a culligan bottle for further cleanup or I save it to brew with. After that 7 gallons, my wort is 80 ish degrees. I transfer to my primary and let sit to pitching temp.

I don't use 20 gal between brewing, chilling and cleanup.
__________________
Monkey Wrench Brewing
MonkeyWrench is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 07:55 PM   #7
Cliff897
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: NJ
Posts: 468
Liked 5 Times on 5 Posts

Default

There are commercial counterflow heat exchangers that work exactly that way.

__________________
Cliff897 is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 08:05 PM   #8
mhermetz
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: Oshawa, Ontario
Posts: 289
Liked 3 Times on 3 Posts
Likes Given: 1

Default

okay I'm going to try it...

If it doesn't cool down by the time it reaches the fermenter I will just use a trusty Ice Bath. I'm pretty sure it will though. I'm severly reducing the surface area of the hot wort, which should lead to faster cooling even without it being submerged in cold water.

I guess I could always do a dry-(maybe "wet")-run of this first with just hot water.

__________________
mhermetz is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 08:33 PM   #9
binaryc0de
Torrence Brewing
Feedback Score: 0 reviews

binaryc0de's Avatar
Recipes

Join Date: Feb 2009
Location: Conway, AR
Posts: 218
Liked 5 Times on 5 Posts

Default

Are you going to be using a pump? I didn't notice that in the drawings. I'm not sure if a gravity feed siphon will be enough force to liquid through the IC and into the carboy. It might if everything including the carboy is lower than the previous components. I have never tried it though.

__________________

Last edited by binaryc0de; 02-10-2010 at 08:37 PM.
binaryc0de is offline

Reply With Quote Quick reply to this message
Old 02-10-2010, 08:38 PM   #10
the_bird
10th-Level Beer Nerd
Feedback Score: 0 reviews

the_bird's Avatar
Recipes

Join Date: May 2006
Location: Adams, MA
Posts: 20,441
Liked 352 Times on 290 Posts
Likes Given: 93

Default

Quote:
Originally Posted by binaryc0de View Post
Are you going to be using a pump? I didn't notice that in the drawings. I'm not sure if a gravity feed siphon will be enough force to liquid through the IC and into the carboy. It might I have never tried it though.

I'd be concerned with that, too, depending on how high your boil kettle is. If you have a pump, and if the wort being pumped out is NOT at 68°, you always have the option of recirculating for a while.

Personally, I'd just buy/build a CFC. The "counter" part is key for quickly wicking away the heat from the wort. This design, you'll be constantly adding ice, stirring, etc. The "waste" hot water from the CFC, have that exit into your bucket and use that for cleaning, if efficiency is a concern.

EDIT: My other concern, without a pump it's not as easy to get the inside of the tubing as clean/sanitize. With a pump, you can easily circulate PBW/Oxiclean and your sanitizer. But, I know people who use CFC gravity-fed, so it CAN be done w/o a pump, it's just got to be trickier.
__________________
Come join Yankee Ingenuity!

"I'm kind of toasted. But I looked at my watch and it's only 6:30 so I can't stop drinking yet." - Yooper's Bob
"Brown eye finally recovered after the abuse it endured in Ptown last weekend, but it took almost a full week." - Paulie
"no, he just doesn't speak 'stupid'. i, however, am fluent...." - motobrewer
"... I'll go both ways." - Melana

That'll do, Pigley. That'll do.
