Default Two Tier / One Pump / Fly Sparge Brew Sculpture Questions Questions

I am ready for a brew stand. I've been going gravity for a while and more recently have started doing 10 gallon batches. I'm already tired of picking up 10 gallons of liquid.

Here is my current setup:


I'm getting a pump and building a brew sculpture. I really only want to get one pump right now and I still want to fly sparge so I need a two tier setup. My question is really which vessel should I elevate. I've been searching this forum and the web and there doesn't seem to be a real consensus on which setup is better. I can see some pros and cons of each setup, but not having used a pump for brewing yet, I'd like to hear from some fellow brewers that have experience with these setups and can tell me the real deal.

Here are the setups I'm considering:


Which one is better in your opinion? Let me know the pros and cons.

__________________
thomashp is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 01:13 AM   #2
CoalCracker
Senior Member
Feedback Score: 0 reviews

CoalCracker's Avatar
Recipes

Join Date: Sep 2009
Location: Macungie, Pa
Posts: 1,589
Liked 100 Times on 63 Posts
Likes Given: 35

Default

I just built option one. I run a HERMS system and this way I can recirculate on one level. Option two will work well too. I prefer to gravity drain the mash tun into the brew kettle. Option three would require you to pump from your MLT to your BK. Not fond of that idea. Any will work. It pretty much is personal preference. I recommend option one though.

__________________

coalcrackerbrewing.blogspot.com
Vintage Kegerator Build
1 BBL Tippy Dump

CoalCracker is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 02:17 AM   #3
thomashp
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: Richmond, VA, Richmond, VA
Posts: 55
Default

I'm curious about that. What happens when you pump from the mash tun? Can you actually sparge faster than gravity would normally go?

__________________
thomashp is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 02:24 AM   #4
cyberwollf
Feedback Score: 1 reviews
Recipes

Join Date: Oct 2010
Location: Dayton, OH
Posts: 203
Liked 1 Times on 1 Posts

Default

Same situation as you. Cant decide. Here's the thread I posted with a few answers
http://www.homebrewtalk.com/f36/3-ve...levate-272461/

__________________
cyberwollf is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 02:43 AM   #5
Fat_Bastard
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2010
Location: central coast, california
Posts: 310
Liked 6 Times on 4 Posts
Likes Given: 2

Default

I would prefer option 3 for my pick.It matches better with my methods.I prefer to measure my runnings from the mash tun before I add them to the brew pot.That way I know exactly how much I have and how much sparge water I need for my batch sparges.

__________________
Fat_Bastard is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 10:55 AM   #6
Cuzco_Brew
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: Cusco - Peru
Posts: 82
Likes Given: 1

Default

I have a 2 tier setup in which I pump from the MLT and gravity feed from the HLT. Works great for me.

I had it set up the other way around to start with, as I was concerned pumping from the MLT might compact the grainbed too much and lead to a stuck sparge.

I made the switch as I was having cavitation problems pumping hot sparge water. The bottom tier of my setup is quite low, this was contributing to the cavitation issues I think. I have no such issues pumping boiling wort from the BK which about 2 feet higher.

__________________
Cuzco_Brew is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 01:33 PM   #7
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,008
Liked 968 Times on 647 Posts
Likes Given: 28

Default

Quote:
Originally Posted by Fat_Bastard View Post
I would prefer option 3 for my pick.It matches better with my methods.I prefer to measure my runnings from the mash tun before I add them to the brew pot.That way I know exactly how much I have and how much sparge water I need for my batch sparges.
<An unintended advertisement> You wouldn't need to measure runnings externally if you put a sight glass in your BK. </>

Also, runoff volume is pretty predictable and even more so once you learn your system's dead space losses.
__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 01:36 PM   #8
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,008
Liked 968 Times on 647 Posts
Likes Given: 28

Default

I like option 3, but with the lower tier at the same height as the lower tier in design 1. The MT and BK only have to be high enough to allow for some head pressure on the pump input which can be just a few inches.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 02:05 PM   #9
bigljd
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2010
Location: Sacramento, CA
Posts: 471
Liked 22 Times on 18 Posts
Likes Given: 6

Default

One advantage to option 1 or 2 is that you are pumping water thru your pump instead of wort. The hot sparge water is actually cleaning the pump for you as you sparge, so you'll have one less thing to clean (unless you plan to use the pump later at the end of the boil - then ignore this post since it won't help you).

__________________
E-Brewery Build

$10 DIY Stainless Hop Stopper
bigljd is offline

Reply With Quote Quick reply to this message
Old 10-16-2011, 04:28 PM   #10
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 40 Times on 33 Posts
Likes Given: 52

Default

Look at this thread. http://www.homebrewtalk.com/f11/brew...stands-263378/
It works excellent

Hot liquor tank on top. Gravity sparge. One pump. Fits in a small footprint.

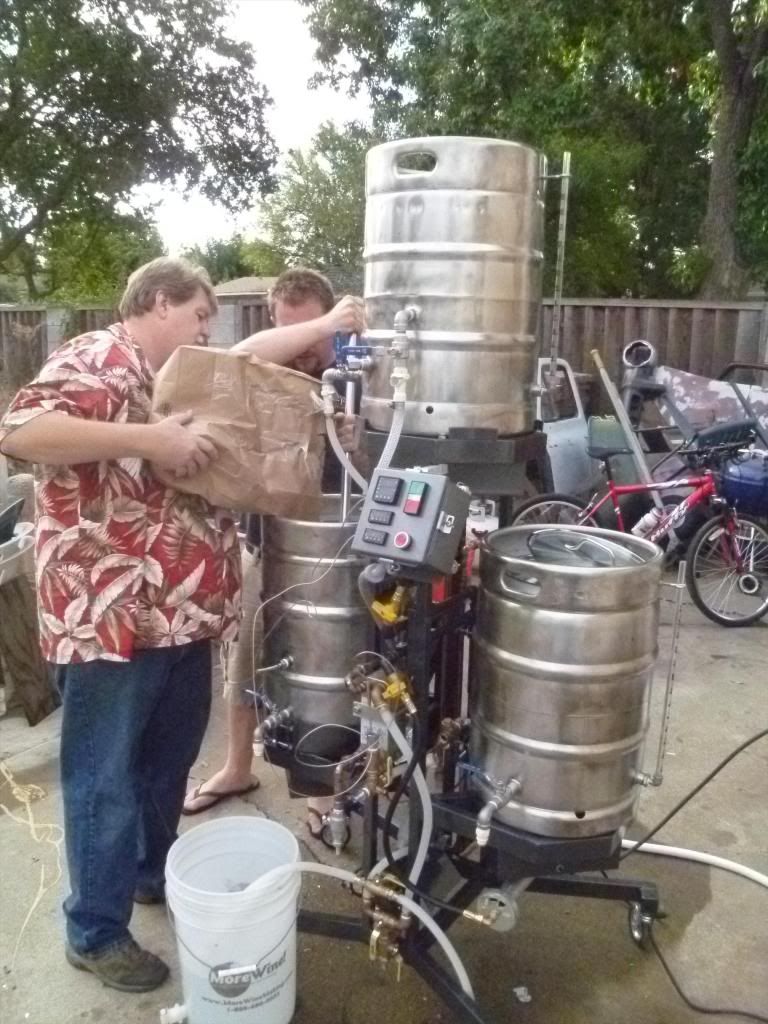

This photo gives you a perspective of the total height:
