Default Ten minute DIY cooler mash tun conversion

Very simple, cheap and effective batch sparger! 48 quart coleman on its way to the landfill gets a second life.
Slightly oversized tubing is inserted through cooler drain hole, For lautering, I used a washing machine supply
hose braid, it seems a bit heavier and more substantial than the sink / toilet supply braids. Zip tie secures the braid.

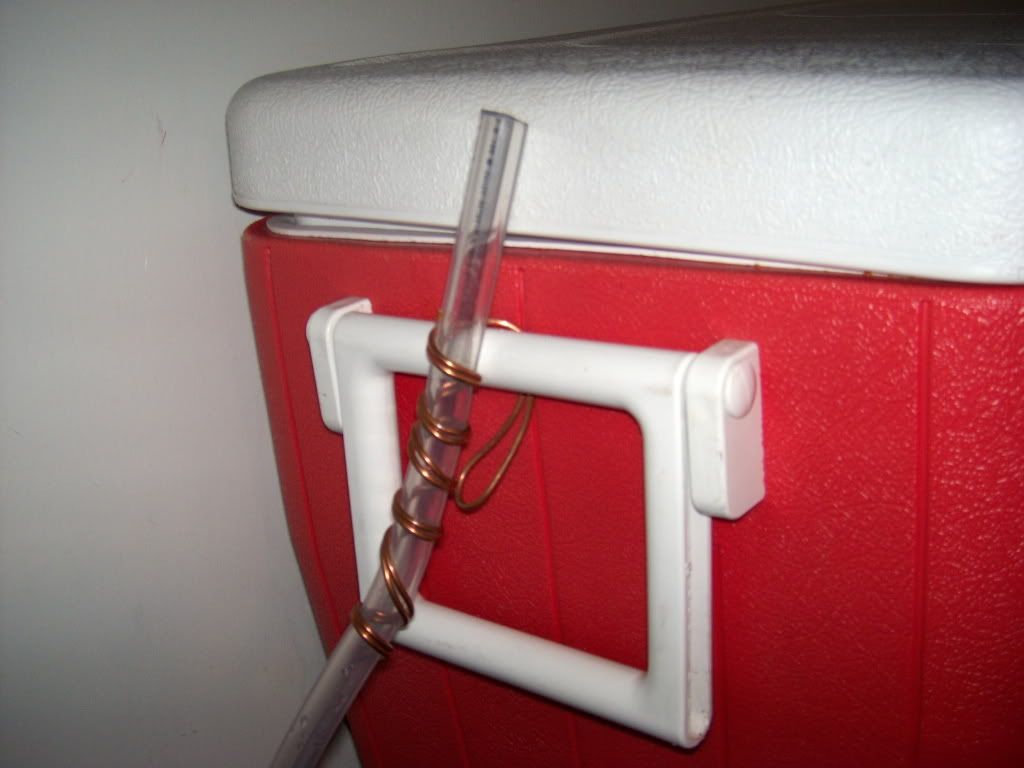

12 gauge copper wire is used to hook the tubing above the wort level to control flow...down is on, and up above the wort level in the cooler is off, a caveman could do it.







No valve, no washers, no teflon tape, no leaks, stripped down to the bare essentials!


wilserbrewer is offline

Reply With Quote Quick reply to this message
Old 06-23-2009, 03:25 PM   #2
ohiobrewtus
Feedback Score: 0 reviews

ohiobrewtus's Avatar
Recipes

Join Date: Nov 2006
Location: Ohio
Posts: 7,814
Liked 37 Times on 35 Posts
Likes Given: 4

Default

You still need something on/off to control the flow. How are you doing this, or did I miss something in the above pictures?

__________________
Quote:
Originally Posted by the_bird
Well, if you *love* it.... again, note that my A.S.S. has five pounds.
ohiobrewtus is offline

Reply With Quote Quick reply to this message
Old 06-23-2009, 03:33 PM   #3
wilserbrewer
Sponsor
Vendor Ads
Feedback Score: 9 reviews

wilserbrewer's Avatar
Recipes

Join Date: May 2007
Location: Jersey Shore, Jersey
Posts: 7,289
Liked 573 Times on 468 Posts
Likes Given: 11

Default

Quote:
Originally Posted by ohiobrewtus View Post
You still need something on/off to control the flow. How are you doing this, or did I miss something in the above pictures?
Gravity, raising the outflow tube is off, lowering the tube is on. Place the tube into a pitcher and lower slowly to vorlaugh over kettle, when pitcher is almost full, move hose end to bottom of kettle. Or one can just fold the hose and kink it for the off function. Or, once the hose is warm and soft, pinching it b/w your fingers makes a pretty good valve.

Sounds difficult perhaps, but it is very easy.
wilserbrewer is offline

Reply With Quote Quick reply to this message
Old 06-23-2009, 03:34 PM   #4
WortMonger
United States Mashtronaut
Feedback Score: 0 reviews

WortMonger's Avatar
Recipes

Join Date: Nov 2006
Location: Edmond, OK, Oklahoma
Posts: 3,143
Liked 28 Times on 27 Posts
Likes Given: 3

Default

Flow is probably controlled by height of tubing. I like it except for the use of vinyl tubing. Vinyl gives off flavors at high temperatures, which is why most use it for beer serving/beer gas tubing/transfers.

__________________
"Beer... Nutritious and Delicious!"

"It's like a 15.5 gallon Mr. Beer!"
WortMonger is offline

Reply With Quote Quick reply to this message
Old 06-23-2009, 03:46 PM   #5
wilserbrewer
Sponsor
Vendor Ads
Feedback Score: 9 reviews

wilserbrewer's Avatar
Recipes

Join Date: May 2007
Location: Jersey Shore, Jersey
Posts: 7,289
Liked 573 Times on 468 Posts
Likes Given: 11

Default

Quote:
Originally Posted by WortMonger View Post
I like it except for the use of vinyl tubing. Vinyl gives off flavors at high temperatures...
It is my understanding that vinyl is good for up to 180 degrees? Lots of people using vinyl on a MT no?

Any idea where i could locally source some better tubing, silicone I assume? Shipping is a hassle and $$$ for a single item.
__________________
wilserbrewer BIAB bags
custom sized BIAB Bags, hop bags and ratchet pulleys at reasonable prices


Http://biabbags.webs.com/

Corona Mill Bucket System V. 2
wilserbrewer is offline

Reply With Quote Quick reply to this message
Old 06-23-2009, 03:59 PM   #6
WortMonger
United States Mashtronaut
Feedback Score: 0 reviews

WortMonger's Avatar
Recipes

Join Date: Nov 2006
Location: Edmond, OK, Oklahoma
Posts: 3,143
Liked 28 Times on 27 Posts
Likes Given: 3

Default

Yeah, shipping is going to eat you up for just one piece of tubing. Plus the silicone is the most expensive tubing out there, pretty much. I'm pretty sure HomeDepot/other like store would have NSF grade hot water tubing. You won't need it to go over 180*F-ish due to your process, so they should carry something. Just remember that vinyl is better for cold.

__________________
"Beer... Nutritious and Delicious!"

"It's like a 15.5 gallon Mr. Beer!"
WortMonger is offline

Reply With Quote Quick reply to this message
Old 06-23-2009, 04:19 PM   #7
leboeuf
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Albuquerque, NM
Posts: 322
Liked 2 Times on 2 Posts

Default

Maximum operating temperature on watts vinyl tubing is 175F. Lots and lots of people have used it for brewing with no ill effects, including myself over the last 5 years.

Taken from the Watts website:
Maximum operating temperature: 175 F. Brittle temperature: -40 F. Material: Clear, nontoxic, FDA and NSF listed PVC compounds. Hardness: A. Durometer: 80 listed by NSF, glass-like clarity and smoothness, abrasion-resistant, handles a wide variety of chemicals, gases, and liquids, visual contact with material flow. Can be used as protective or insulating cover, drainage lines of all kinds.

I've always used the braid reinforced stuff for brewing and it's done fine.
Tom

__________________
leboeuf is offline

Reply With Quote Quick reply to this message
Old 06-23-2009, 04:30 PM   #8
wilserbrewer
Sponsor
Vendor Ads
Feedback Score: 9 reviews

wilserbrewer's Avatar
Recipes

Join Date: May 2007
Location: Jersey Shore, Jersey
Posts: 7,289
Liked 573 Times on 468 Posts
Likes Given: 11

Default

Hey, thanks for the info Tom, I figured i wasn't the only one using vinyl tubing on a mash tun.

__________________
wilserbrewer BIAB bags
custom sized BIAB Bags, hop bags and ratchet pulleys at reasonable prices


Http://biabbags.webs.com/

Corona Mill Bucket System V. 2
wilserbrewer is offline

Reply With Quote Quick reply to this message
Old 06-24-2009, 04:11 AM   #9
RecklessDeck
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Posts: 17
Default

Quote:
Originally Posted by leboeuf View Post
Maximum operating temperature on watts vinyl tubing is 175F. Lots and lots of people have used it for brewing with no ill effects, including myself over the last 5 years.

Taken from the Watts website:
Maximum operating temperature: 175 F. Brittle temperature: -40 F. Material: Clear, nontoxic, FDA and NSF listed PVC compounds. Hardness: A. Durometer: 80 listed by NSF, glass-like clarity and smoothness, abrasion-resistant, handles a wide variety of chemicals, gases, and liquids, visual contact with material flow. Can be used as protective or insulating cover, drainage lines of all kinds.

I've always used the braid reinforced stuff for brewing and it's done fine.
Tom
+ if the max operational temp is 175 then its fine. I use it too, and checked this fact first
__________________
RecklessDeck is offline

Reply With Quote Quick reply to this message
Old 06-24-2009, 04:17 AM   #10
MikeG
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: Atlanta, GA
Posts: 1,020
Liked 8 Times on 7 Posts

Default

Props for the inexpensive MLT! I do think the non-high-temp tubing might be an issue but that's easy and cheap item to deal with.
