Default Switching dip tube positioning. Is it easy?

I am wanting to get a weldless bulkhead/valve and diptube setup for my keggle.

How difficult and time consuming would it be to switch the positioning of a dip tube in the kettle on brew day?

Say I only have 1 kettle (a keggle) and I want to use it to heat my strike/sparge water and also use it as a boil kettle.

For the strike/sparge water, I would want the dip tube to pull from the center of the kettle and from the very bottom.

For draining the boil kettle, I would want to use it as a side pickup (post-whirlpool).

Would it be difficult to switch this orientation after my sparge water is heated and drained?


Images are from the bargainfittings website, I would want to do something like this at first (although even lower if possible):

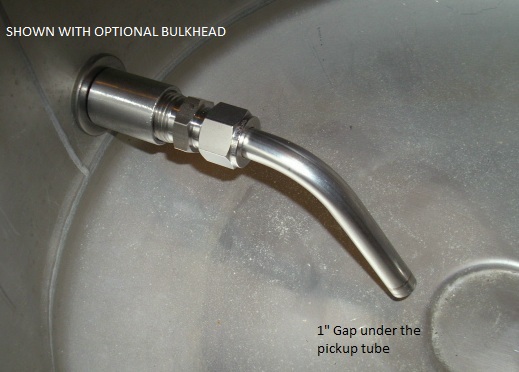

Then switch to this:

__________________
beertastic is offline

Reply With Quote Quick reply to this message
Old 11-27-2012, 02:21 AM   #2
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 11,179
Liked 1379 Times on 1114 Posts

Default

I would try to simplify the switch-over by finding both a center pickup and a side pickup tube for the bulkhead shown in this picture



If you then used silicone O-rings with the compression fitting the change-over would take a pair of wrenches and around a minute to do...

Cheers!

__________________
day_trippr is offline

Reply With Quote Quick reply to this message
Old 11-27-2012, 12:16 PM   #3
NCGrayson
Feedback Score: 1 reviews
Recipes

Join Date: Nov 2011
Location: Wlmington, North Carolina
Posts: 209
Liked 3 Times on 3 Posts

Default

why do you want to have both? i know you want to use your keggle dual purpose, but....what's the purpose? you can do both with a side pickup tube.

__________________
NCGrayson is offline

Reply With Quote Quick reply to this message
Old 11-27-2012, 01:22 PM   #4
Barnesie
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2010
Location: Fairfax, Virginia
Posts: 360
Liked 64 Times on 34 Posts
Likes Given: 10

Default

Quote:
Originally Posted by beertastic View Post

For the strike/sparge water, I would want the dip tube to pull from the center of the kettle and from the very bottom.

For draining the boil kettle, I would want to use it as a side pickup (post-whirlpool).
Or here's a better idea...orient it as a side pickup and use for both. Who cares if you don't get the last few drops of sparge water out of your HLT? If you're doing exact volume measurement, just figure out how much is left in the HLT after your side drain bottoms out and then add that much more to your HLT on your brewday.

Switching would be a pain, but more importantly it would be silly just to drain a few extra cups of hot water.
__________________
BrewDC Blog BrewDC Twitter
Primary: Unnamed Stout, unnamed Belgian Blonde
Secondary: Ogre Barleywine, Oak aged Belgian Tripel
Bottles: none
Keg: Junkyard IPA, Alagash Belgian Tripel clone

Beware: Everyone is an expert on the internet.
Barnesie is offline

Reply With Quote Quick reply to this message
Old 11-27-2012, 02:40 PM   #5
beertastic
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2011
Location: CHARLOTTE, NC
Posts: 109
Liked 4 Times on 3 Posts
Likes Given: 18

Default

I was under the impression that the side pickup would leave a considerable amount of water behind (more than a few cups). I haven't measured, but I have started leave about a gallon or so behind in the kettle when I siphon. This allows me to transfer very clear wort into the fermenter. I do whirlpool, but not everything compacts to the center.

Either way I guess if it is a pain to switch it out, I can just measure that wasted volume and add it to my strike and sparge volumes.

__________________
beertastic is offline

Reply With Quote Quick reply to this message
Old 11-27-2012, 02:56 PM   #6
Barnesie
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2010
Location: Fairfax, Virginia
Posts: 360
Liked 64 Times on 34 Posts
Likes Given: 10

Default

For a mash tun, you want to get as much wort as possible. For a kettle, you want to get as much wort as possible without trub. For a HLT...it's just hot water. You don't lose anything by leaving some behind.

I don't even have a dip tube on my HLT at the moment, haven't had any strong desire to add one any time soon, but I generally fill my HLT with more water then I expect to use either way. Better to have more sparge water on demand then not enough.

__________________
BrewDC Blog BrewDC Twitter
Primary: Unnamed Stout, unnamed Belgian Blonde
Secondary: Ogre Barleywine, Oak aged Belgian Tripel
Bottles: none
Keg: Junkyard IPA, Alagash Belgian Tripel clone

Beware: Everyone is an expert on the internet.
Barnesie is offline

Reply With Quote Quick reply to this message
Old 11-27-2012, 07:02 PM   #7
beertastic
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2011
Location: CHARLOTTE, NC
Posts: 109
Liked 4 Times on 3 Posts
Likes Given: 18

Default

Thanks, I was hoping to eliminate the pouring of hot liquids from my brew day, which is why I was thinking of changing the dip tube

__________________
beertastic is offline

Reply With Quote Quick reply to this message
Old 11-27-2012, 07:16 PM   #8
jsguitar
Feedback Score: 0 reviews

jsguitar's Avatar
Recipes

Join Date: May 2011
Location: Overland Park, KS
Posts: 1,082
Liked 96 Times on 75 Posts
Likes Given: 503

Default

Day Trippr's suggestion is the cheapest way to do what you're wanting. You could just install both, but of course that means more money and another hole. You might also be able to rig it up with camlocks somehow, but I'm not sure how solid the seal would be.

__________________
jsguitar is offline

Reply With Quote Quick reply to this message
Old 11-27-2012, 07:27 PM   #9
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,249
Liked 1056 Times on 704 Posts
Likes Given: 28

Default

Center pickup rotated to hit the bottom during HLT function. Rotate the tube like 5 degrees to hover an inch above the bottom to leave trub behind. Alternative.. use hop bags and leave the diptube alone.

__________________
BrewHardware.com has a new website. Please check it out and let me know what you think!
New 100% Stainless Steel Heating Elements are IN!
Chugger Pumps, Pump Kits, Camlocks, Sightglasses, Clear USA made Silicone Tubing, RIMS, Electric Install Parts, etc. Did you know we are also now a full service homebrew shop selling malt, hops, yeast (Wyeast), etc?
Bobby_M is offline

Reply With Quote Quick reply to this message
