Old 06-21-2011, 07:18 AM   #131
JuanMoore
Feedback Score: 0 reviews

JuanMoore's Avatar
Recipes

Join Date: Oct 2009
Location: The Old Pueblo
Posts: 15,982
Liked 3202 Times on 3106 Posts
Likes Given: 18

Default

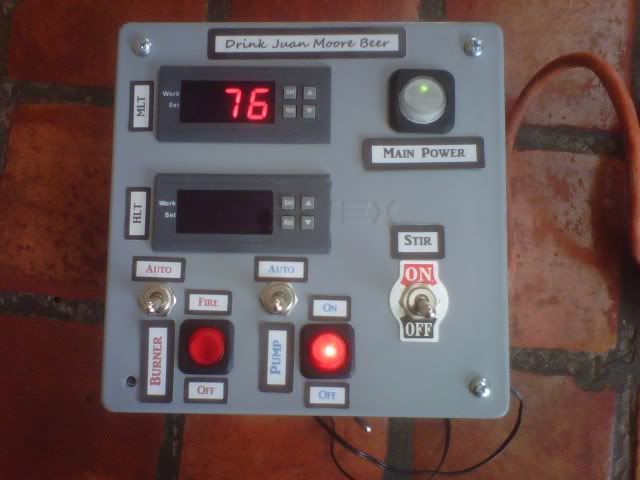

Here's my recently finished prototype control panel built mostly from parts I had laying around. There are a lot of upgrades I want to make for the final panel (twist lock receps, center off switches, larger enclosure, etc.), but this is what time and money currently allow, and using this should help me to refine the final design. The controllers are similar to the ones in the e-bay aquarium temp controller thread, but single stage, fahrenheit display, and SS temp probe (and cheaper). It's not nearly as well constructed or fancy as most of the ones I see here, but I think it's a nice addition to my ghetto HERMS, and it only cost me ~$45 out of pocket.

__________________
JuanMoore is online now

Reply With Quote Quick reply to this message
Old 07-07-2011, 12:31 PM   #132
bull8042
I like 'em shaved
Feedback Score: 0 reviews

bull8042's Avatar
Recipes

Join Date: Jul 2008
Location: Fort Mill, SC
Posts: 10,279
Liked 444 Times on 443 Posts
Likes Given: 11

Default

Quote:
Originally Posted by kladue View Post
Is the software package you are using the Lab Jack offering or is it something you have created in VB to work with the touch screen monitor shown.
Sorry for the delay in responding to your question. I am using DAQFactory for my SCADA interface with the LabJack. Granted, it is a little pricey for a garage project, but it is probably the best solution that I have found. So, well worth it for me.
Unfortunately, I couldn't justify the version that contains the fancy symbol library, so I have had to create my own.
__________________
"I brew with a water cooler and some part from the toilet." - JohnnyO

"I do gravity feed the last gallon or two through my Therminator, but I expect you could suck start a Volkswagen before you could suck start one of these. - GilaMinumBeer

"..... Bull was right." - TXCurtis
bull8042 is offline

Reply With Quote Quick reply to this message
Old 07-07-2011, 07:41 PM   #133
kladue
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: Turner, Oregon, Oregon most of the time now
Posts: 2,303
Liked 46 Times on 42 Posts

Default

Your efforts look very nice so far, any plans for I/O expansion to incorporate level or flow control.
With the hardware I used and the number and types of points, there were no software packages available so I had to build my own.

__________________
kladue is offline

Reply With Quote Quick reply to this message
Old 07-07-2011, 08:28 PM   #134
bull8042
I like 'em shaved
Feedback Score: 0 reviews

bull8042's Avatar
Recipes

Join Date: Jul 2008
Location: Fort Mill, SC
Posts: 10,279
Liked 444 Times on 443 Posts
Likes Given: 11

Default

Thanks. I have 2 flow switches on it now, but have yet to add them to the program.
I would like to do level monitoring, but haven't found a suitable solution. Do you know of any sensors with an analog signal that won't cost an arm & a leg?
DAQFactory will definitely do exactly what you want. Having some Basic, C++ type of programming experience will definitely help. Even familiarity with PHP is a huge plus. It is a pretty simple text-based programming language.

__________________
"I brew with a water cooler and some part from the toilet." - JohnnyO

"I do gravity feed the last gallon or two through my Therminator, but I expect you could suck start a Volkswagen before you could suck start one of these. - GilaMinumBeer

"..... Bull was right." - TXCurtis
bull8042 is offline

Reply With Quote Quick reply to this message
Old 07-07-2011, 10:42 PM   #135
kladue
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: Turner, Oregon, Oregon most of the time now
Posts: 2,303
Liked 46 Times on 42 Posts

Default

There are new 0-2 psi wet pressure transmitters in the $120 range, or do like I have and watch Ebay pressure transmitter/pressure sensors for a wet pressure transmitter in the price range you can handle, with a current or voltage output.

__________________
kladue is offline

Reply With Quote Quick reply to this message
