Default Sanitary Pumps to use in CIP brewery

I am designing a CIP brewery but I'm not finding the pump I want.

I want something like a March 815-SS-C but with Tri-Clover clamp ends instead of NPT. I saw one of those on MoreBeer's pro site once, but it is gone now and nobody there knows anything about it.

Can anyone recommend a pump that comes with TC ends? Preferably 1" OD tubing, but 3/4" would be acceptable.

If all I can get are threaded pumps, how feasible is it to have someone cut off the threads and weld on a TC ferrule?

Is there some other way to get a sanitary pump that I should know about?

__________________
wuertele is offline

Reply With Quote Quick reply to this message
Old 05-21-2010, 11:50 PM   #2
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,264
Liked 57 Times on 49 Posts
Likes Given: 110

Default

Quote:
I am designing a CIP brewery but I'm not finding the pump I want.

I want something like a March 815-SS-C but with Tri-Clover clamp ends instead of NPT. I saw one of those on MoreBeer's pro site once, but it is gone now and nobody there knows anything about it.
I don't think the March you selected is the pump for the job.
It takes 1/2 HP or larger pump to get the pressure and flow rate required to use with spray balls for your CIP system.
Many years ago I purchased a Chinese made SS pump for the cleaning process.
Search for a used commercial pump.


Cheers,
ClaudiusB
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 05-22-2010, 12:38 AM   #3
wuertele
Feedback Score: 0 reviews

wuertele's Avatar
Recipes

Join Date: Oct 2009
Location: Menlo Park
Posts: 134
Liked 1 Times on 1 Posts

Default

ClaudiusB, it looks like your pumps have threaded ports. Are you happy with that?

__________________
wuertele is offline

Reply With Quote Quick reply to this message
Old 05-22-2010, 01:26 AM   #4
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,264
Liked 57 Times on 49 Posts
Likes Given: 110

Default

Quote:
ClaudiusB, it looks like your pumps have threaded ports. Are you happy with that?
Yes.
The pump is only used with PBW and Acid washing the tanks.

Sanitizing the fermenters and other equipment is done with pressurized SaniClean tanks, no pump.
You can find this type of pump or similar used, if you go to ProBrewer.com., no threaded ports.



Remember I am a homebrewer.

Cheers,
ClaudiusB
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 03:21 AM   #5
wuertele
Feedback Score: 0 reviews

wuertele's Avatar
Recipes

Join Date: Oct 2009
Location: Menlo Park
Posts: 134
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by ClaudiusB View Post
You can find this type of pump or similar used, if you go to ProBrewer.com., no threaded ports.

That looks like a positive displacement pump. Do they even make those for single phase 110V with 1" ports? Everything I see on probrewer.com is 10x bigger than what I could use.

Quote:
Originally Posted by ClaudiusB View Post
Remember I am a homebrewer.
Hmm... Your photos make it difficult to imagine that you are not a pro!
__________________
wuertele is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 03:35 AM   #6
mattd2
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2009
Location: Papamoa, New Zealand
Posts: 3,411
Liked 238 Times on 194 Posts
Likes Given: 42

Default

What is the issue with using threaded parts for a CIP system?

__________________
mattd2 is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 07:01 PM   #7
wuertele
Feedback Score: 0 reviews

wuertele's Avatar
Recipes

Join Date: Oct 2009
Location: Menlo Park
Posts: 134
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by mattd2 View Post
What is the issue with using threaded parts for a CIP system?
CIP implies that the system won't be disassembled for cleaning. Threaded interfaces can only be thoroughly cleaned if they are disassembled.
__________________
wuertele is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 09:18 PM   #8
mattd2
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2009
Location: Papamoa, New Zealand
Posts: 3,411
Liked 238 Times on 194 Posts
Likes Given: 42

Default

oh yeah, for some reason I was thinking it was a didicated pump for the cleaning Doh!
Thinking about this, could you get the threaded pump, thread some tri clover furrules or flanges, screw them in, fillet weld between the inside of the threaded flange and the end of the pump thead.

__________________
mattd2 is offline

Reply With Quote Quick reply to this message
Old 05-24-2010, 09:30 PM   #9
wuertele
Feedback Score: 0 reviews

wuertele's Avatar
Recipes

Join Date: Oct 2009
Location: Menlo Park
Posts: 134
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by mattd2 View Post
could you get the threaded pump, thread some tri clover furrules or flanges, screw them in, fillet weld between the inside of the threaded flange and the end of the pump thead.
That sounds like a great idea. How hard would it be to make a smooth weld?
__________________
wuertele is offline

Reply With Quote Quick reply to this message
Old 05-25-2010, 04:08 AM   #10
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,264
Liked 57 Times on 49 Posts
Likes Given: 110

Default

Quote:

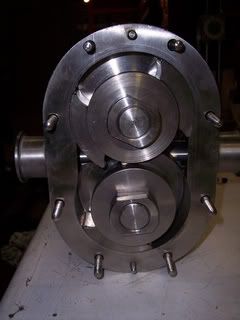

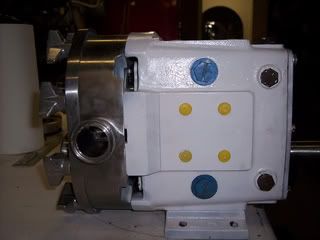

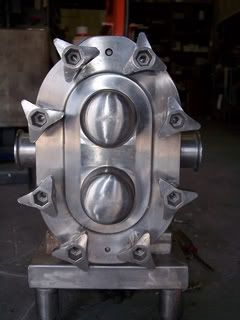

That looks like a positive displacement pump.
Yes, lobe type




Quote:
Do they even make those for single phase 110V with 1" ports? Everything I see on probrewer.com is 10x bigger than what I could use.
I replaced the original 240 V single phase with a 120 V, 1 HP motor.

Quote:
oh yeah, for some reason I was thinking it was a didicated pump for the cleaning Doh!
Mattd2 mine are dedicated cleaning pumps.

Cheers,
ClaudiusB
__________________
My Brewery Pics
Grain Mill Glycol Chiller
Keg Washer
ClaudiusB is offline
