Default pick up tube for bargainfittings ball valve

I recently bought a weldless fitting from bargainfittings for my brew kettle.



I've got the fitting installed on the brew pot but I'd like to get a diptube in there to pick up as much wort as possible.

Is there a thread on this (a search came up empty)? Does someone have experience?

thanks in advance



__________________
TacoGuthrie is offline

Reply With Quote Quick reply to this message
Old 10-21-2009, 09:37 PM   #2
cvstrat
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Richmond, VA
Posts: 691
Liked 5 Times on 5 Posts
Likes Given: 2

Default

It has been my experience that anything below the coupler is typically junk you don't need in your fermentor. If there is any actual quality wort below that point you can tip the brew kettle a small amount to get the rest. If you had a dip tube it'd be pointed directly into the hops and precipitated proteins. Not that draining 100 percent of the stuff in the kettle into the carboy is going to really hurt your beer, but honestly if you can leave it in the kettle it makes it easier to have clearer, better looking beer.

My advice is to scale you recipes up 1 gallon above you desired final volume. I keg in 5 gallon kegs to I always brew 6 gallons of beer. I use 6 gallons carboys. I end up with exactly 6 gallons post boil and when I rack over to the carboy I leave roughly a half gallon behind that is full of hops and other junk. Then when I rack from primary to secondary, or primary straight to keg or bottling bucket I find I leave behind about a half gallon to avoid the trub in the bottom of the fermentor. It's a marginal cost increase to brew an extra gallon, but you'll be sure you are racking super clean and clear beer to your keg/bottles.



__________________
cvstrat is offline

Reply With Quote Quick reply to this message
Old 10-21-2009, 09:53 PM   #3
JenkintownBrewer
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Posts: 5
Default

It isn't hard to fashion a pick up out of copper fittings. I made one out of a 1/2" threaded to sweat adapter, 2 short lengths of 1/2" pipe and a 90 degree elbow. Solder it all together and screw into the fitting that you bought.

This does stick into the kettle by a few inches and does pick up some of the break & hop material, but I whirlpool and most of the junk gets left behind. I haven't felt the need to try using any of the chore boy type scrubbers around the end of the pickup tube with my setup.

You could also use the same threaded adapter with some pipe that you bend into shape so that it rests next to the wall of the kettle.

I end up leaving somewhere in the neighborhood of just over a quart of liquid in my 60 qt kettle with my setup.

HTH
Nate

__________________
JenkintownBrewer is offline

Reply With Quote Quick reply to this message
Old 10-21-2009, 09:56 PM   #4
ShortSnoutBrewing
Kwanesum Chinook Illahee
Feedback Score: 0 reviews

ShortSnoutBrewing's Avatar
Recipes

Join Date: Oct 2007
Location: Portland, OR
Posts: 3,266
Liked 12 Times on 11 Posts
Likes Given: 1

Default

I will respectfully disagree with the above statement (cvstrat's), depending on your brewing kettle. The typical spot for a bulkhead on a keggle, for example, is near the 3 gallon mark. I wouldn't suggest anybody increase their recipes to make up for a 3 gallon loss. Also, you can terminator your pick up tube off to the side of your kettle and whirlpool so your solids will be in the center of your kettle. Numerous other methods, but that wasn't the original question.

Take your coupler with you to HD, Lowes Etc and get some copper fittings with male ends and copper tubing and you can put together a p/u tube pretty quick, easy, and cheap.

ShortSnoutBrewing is offline

Reply With Quote Quick reply to this message
Old 10-21-2009, 10:01 PM   #5
TwoHeadsBrewing
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2008
Location: Chico, CA
Posts: 3,930
Liked 26 Times on 25 Posts
Likes Given: 2

Default

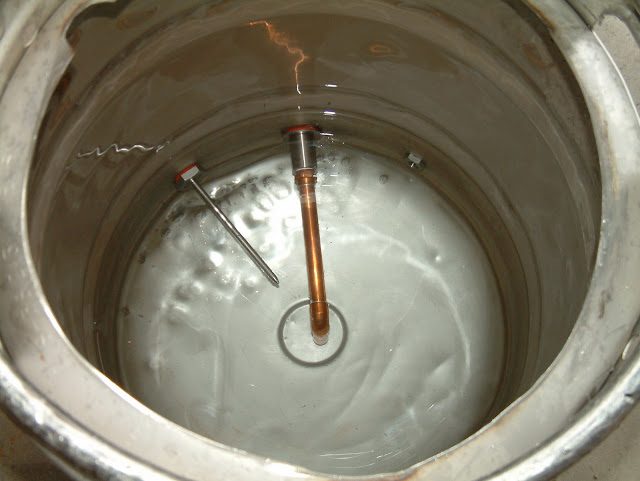

I tried to put my bulkhead on my HLT as low as I could while still having a good surface for the washers to mount against. This is indeed at about 3 gallons, maybe a bit less. I fabbed a quick 90 degree elbow out of 1/2" copper pipe and a 1/2" NPT fitting to connect with the bulkhead. Here is the result:

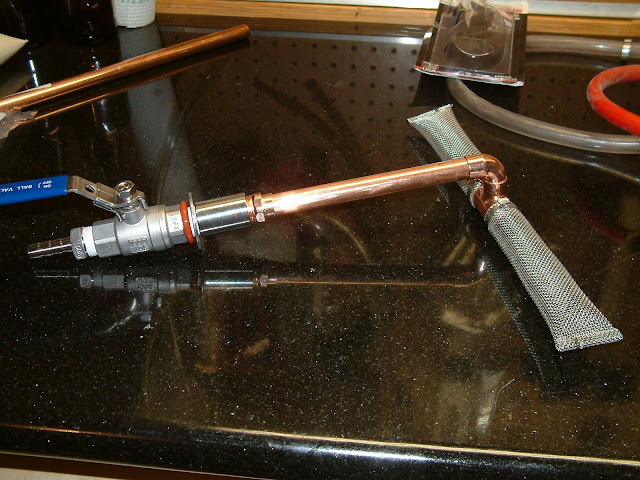

This works fantastic, and picks up all but 2 ounces of fluid. On my boil kettle I've used a Bazooka T-Screen to keep out the hop junk and again sweated together a copper fitting. Also works very well, but this sits a little higher off the bottom of the kettle and leaves about 6 ounces of wort behind.

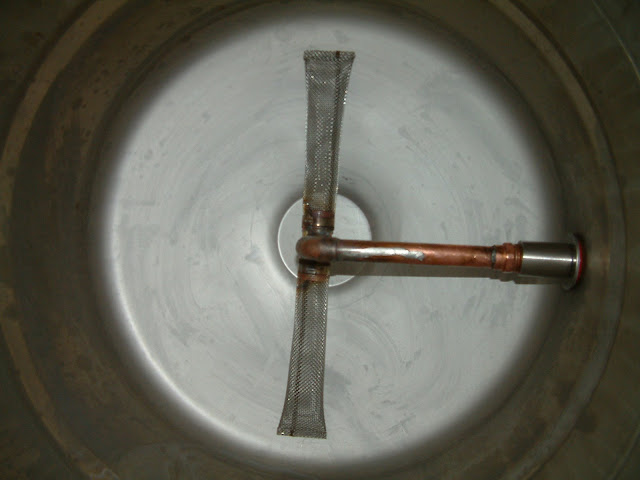

Installed:

__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff

Last edited by TwoHeadsBrewing; 10-21-2009 at 10:07 PM.
TwoHeadsBrewing is offline

Reply With Quote Quick reply to this message
Old 10-21-2009, 10:03 PM   #6
AnOldUR
fer-men-TAY-shuhn
Feedback Score: 0 reviews

AnOldUR's Avatar
Recipes

Join Date: Mar 2007
Location: New Jersey
Posts: 5,746
Liked 448 Times on 328 Posts
Likes Given: 355

Default

McMaster-Carr

__________________
Sent from my POS computer because I refuse to own a smartphone!
AnOldUR is offline

Reply With Quote Quick reply to this message
Old 10-22-2009, 01:22 AM   #7
BargainFittings
Vendor
Feedback Score: 1 reviews

BargainFittings's Avatar
Recipes

Join Date: Nov 2008
Location: Allen TX
Posts: 1,834
Liked 37 Times on 32 Posts
Likes Given: 3

Default

All of the suggestions are good ways of doing it.

__________________

Wayne


Stainless Weldless kits and Flat $5.00 shipping to USA 50 States!
NEW - KENT CARBONATION CAPS AND QUICK DISCONNECTS

BargainFittings.com

BargainFittings is offline

Reply With Quote Quick reply to this message
Old 10-22-2009, 01:43 AM   #8
TacoGuthrie
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: P.R., B.C.
Posts: 429
Default

Lots of options. Thanks for all the posts so far.

I was able to install the fitting near the bottom of my brewpot - a 10 Gal stainless steel pot. I think I will step slowly into this. I plan on brewing this weekend so I'll see how it works without any kind of dip tube. I doubt I would leave much wort behind but i'll still plan for a 6G batch.

Once I see the results I'll take the next baby step of heading down to the hardware store and building something out of the parts suggested.

Oh and I can see myself investing in a bazooka screen but for this weekend does anyone have a short term workaround for a screen to filter whole hops?

Thanks!

and thanks to bargainfittings for the great no-hassle fitting. it would've cost me twice as much to put it together here and twice the hassle. cheers!

__________________
TacoGuthrie is offline

Reply With Quote Quick reply to this message
Old 10-22-2009, 02:24 AM   #9
cyberbackpacker
Feedback Score: 2 reviews

cyberbackpacker's Avatar
Recipes

Join Date: Jul 2008
Location: Holland, Michigan
Posts: 1,438
Liked 12 Times on 11 Posts
Likes Given: 15

Default

Quote:
Originally Posted by TacoGuthrie View Post

Oh and I can see myself investing in a bazooka screen but for this weekend does anyone have a short term workaround for a screen to filter whole hops?

Thanks!

and thanks to bargainfittings for the great no-hassle fitting. it would've cost me twice as much to put it together here and twice the hassle. cheers!
Get a copper "chore boy" scrubber found with the dish detergents at the grocery store! and stuff it snug, but not tight, into the inner bulkhead.
__________________

-Kevin
cyberbackpacker

Trinke Das Bier Das Du Gebraut Hast

cyberbackpacker is offline

Reply With Quote Quick reply to this message
Old 10-22-2009, 06:05 PM   #10
bendavanza
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: Oak CLiff, TX
Posts: 2,348
Liked 13 Times on 13 Posts
Likes Given: 2

Default

Leaving a full gallon of wort in the kettle is pretty wasteful, all that trub will settle out in the fermenter leaving you with almost the extra gallon.
