Here is a picture of the ignition module, solenoid shutoff valve, Mass flow contoller, and pilot fuel needle valve http://picasaweb.google.com/kevin.la...flowController

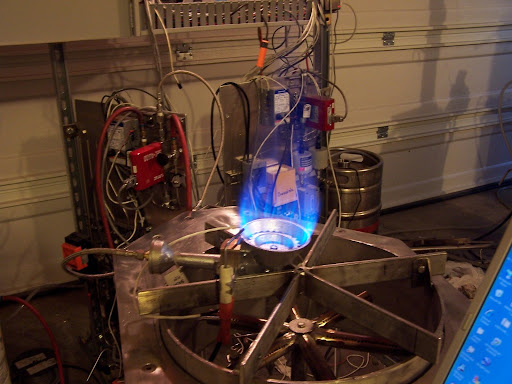

Here are pictures of the pilots and burners in operation http://picasaweb.google.com/kevin.ladue/PilotLights
The Honeywell S87D ignition module uses a flame rod to sense flame presence, if flame goes out module shuts off solenoid in 6 seconds.

__________________
kladue is offline

Reply With Quote Quick reply to this message
Old 04-01-2008, 10:17 PM   #22
mZnthebend
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Aurora, OH
Posts: 102
Liked 4 Times on 2 Posts

Default

Absolutely Incredible. From one Enginerd to another...Great work! Will be following closely.

__________________
mZnthebend is offline

Reply With Quote Quick reply to this message
Old 04-01-2008, 10:54 PM   #23
Big "A"
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Location: Marietta, Georgia
Posts: 138
Default

Ummmmm WOW!!!!!

__________________

"You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer."
-Frank Zappa

Big "A" is offline

Reply With Quote Quick reply to this message
Old 04-01-2008, 10:59 PM   #24
Brewpastor
Beer, not rocket science
Feedback Score: 0 reviews

Brewpastor's Avatar
Recipes

Join Date: Feb 2006
Location: Corrales, New Mexico
Posts: 4,580
Liked 30 Times on 26 Posts

Default

That looks like a beautiful set-up, well thought out and built. PLEASE keep us updated on your progress.

__________________
Before I learned to brew I was poor, sober and lonely. Now I am just poor.
Brewpastor is offline

Reply With Quote Quick reply to this message
Old 04-02-2008, 07:07 PM   #25
FSR402
Feedback Score: 0 reviews

FSR402's Avatar
Recipes

Join Date: May 2007
Location: Jenison, MI
Posts: 2,881
Liked 16 Times on 14 Posts
Likes Given: 1

Default

just posting to say WOW and to keep an eye on this.

__________________
TWO FISTED BREWING CO.

Quote:
Originally Posted by mr_cad View Post
Its nice when you and your friends have comparable equipment.
Quote:
Originally Posted by Walker-san View Post
some people will tap anything that has a hole.
Buy Two Fisted Brewing gear
FSR402 is offline

Reply With Quote Quick reply to this message
Old 07-20-2008, 09:38 AM   #26
WBC
Feedback Score: 0 reviews

WBC's Avatar
Recipes

Join Date: Jun 2007
Location: La Puente, CA, California
Posts: 2,175
Liked 8 Times on 8 Posts

Default

Any more progress? Most impressive!

__________________

Cheers,
WBC

Fermentor 1: Bill's House Ale II, Fermentor 2: German Helles, Fermentor 3: Bill's Schworzbier (Black Bier)
Tap 1: Bill's House Ale II, Tap 2: German Hefewizen, Tap 3: Nut Brown Ale
Future Brews: Stone IPA Clone, Blonde Ale, Budvar Clone, Newcastle Clone
New toy: Blichmann 27 gallon fermentor


“If you find yourself in a hole, the first thing to do is stop digging”

“Good judgment comes from experience, and a lotta that comes from bad judgment”

WBC is offline

Reply With Quote Quick reply to this message
Old 07-20-2008, 01:58 PM   #27
kladue
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: Turner, Oregon, Oregon most of the time now
Posts: 2,309
Liked 47 Times on 43 Posts

Default

Should be able to finish mash tun and go for the wet testing today and possibly a test run with operating software. One item was apparent during burner testing last week, radiant heat from underside of boil kettle burner needs to be sheilded to prevent hot spot on floor. The combustion venting system worked well as there was no noticible combustion smell inside brew shed during boiler and boil kettle testing. This system is kind of like frankenstein, built out of many used parts by a mad scientist and brought to life with electricity. I did not realise how many hours it would take to put this thing together as it is not done yet, I still have to build the glycol cooling system then finish the permanent power, plumbing connections and inside walls of brew shed.

__________________
kladue is offline

Reply With Quote Quick reply to this message
Old 07-20-2008, 04:54 PM   #28
WBC
Feedback Score: 0 reviews

WBC's Avatar
Recipes

Join Date: Jun 2007
Location: La Puente, CA, California
Posts: 2,175
Liked 8 Times on 8 Posts

Default

I am retired and was a tool and diemaker for 30 years and worked with engineers every day to build new automated machines for a production line and to modify and maintain the existing ones so I know you must be retired if you are living in Oregon but still needed a project so you could create something of your own. From the experiences I had I can see that you have many challenges ahead and will have to deal with each one of them as they surface. It's a lot of work to do and can and does cost a fortune. Please do not get discouraged as I know this can happen but just keep at it. I also know it takes a lot of time but the self satisfaction will come.

__________________

Cheers,
WBC

Fermentor 1: Bill's House Ale II, Fermentor 2: German Helles, Fermentor 3: Bill's Schworzbier (Black Bier)
Tap 1: Bill's House Ale II, Tap 2: German Hefewizen, Tap 3: Nut Brown Ale
Future Brews: Stone IPA Clone, Blonde Ale, Budvar Clone, Newcastle Clone
New toy: Blichmann 27 gallon fermentor


“If you find yourself in a hole, the first thing to do is stop digging”

“Good judgment comes from experience, and a lotta that comes from bad judgment”

WBC is offline

Reply With Quote Quick reply to this message
Old 07-20-2008, 08:32 PM   #29
kladue
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: Turner, Oregon, Oregon most of the time now
Posts: 2,309
Liked 47 Times on 43 Posts

Default

Wish I was retired but that is about 7 years away, at least it is only 40 hour weeks these days and commuting distance from home, down side is trying to run 3 high tech I&C installation projects in hillsboro Or, and a 450 Mw turbine generator instrument install in springerville AZ.

__________________
kladue is offline

Reply With Quote Quick reply to this message
Old 07-21-2008, 01:22 AM   #30
beerthirty
big beers turn my gears
Feedback Score: 0 reviews

beerthirty's Avatar
Recipes

Join Date: May 2008
Location: Phoenix AZ
Posts: 2,651
Liked 27 Times on 12 Posts

Default

I was jealous, but now that you have to come to AZ during monsoon season I feel for you. Every time I step outside a new plan springs to mind for cooling wort below 85*. Oh, I really like that grain elevator. Are you using an electric actuator motor to turn it? couldn't really tell in the picture.
