Default Need help designing a -COMPACT- AG system

Ok, so I decided to post this nice and early so I have time to build it all up.

My situation is that I just moved from my apartment with a back yard to a 3rd floor 1BR with an electric stove and no reasonable access to the back yard. Couple that with the fact that in January I'll be headed to NYC where my girlfriend just moved. There we'll have a 5th floor walk up and no one even knows what a backyard is.

Suffice to say, she's gung ho for me to keep brewing (the kegerator is coming with), but I've recently begun AG, and have a decent system. However, I don't have a burner, a pot over 7.5g, or plans for either.

I have been thinking hard about how compactly I could build a system, and here's what I've come up with.

My current MLT, but modified with a pressure-cooker for steam mashes. (I like Mr. X's Design here)
2 five-gal pots for a split boil - I'll have a decent gas-stove up there. (need these - the current one I use isn't mine)
Better bottles or buckets for fermenting - no need for broken glass anymore - bottle bombs were enough.
My modified BeverageAir kegerator. (holds 4 kegs, have 6)

Anything I'm missing? I already do a quasi- recirculated-ice-water system to cool my wort - (more like a siphon from ice-water to another bucket).

I also need to make things as self-managable as possible since I'm losing my brew-partner when I move away.

Thoughts?

thanks all.
kvh.

__________________
Make beer, not bombs.
(...and not bottle bombs either.)
Primary Fermentor - *empty*
Primary Fermentor -

Secondary - Mystery IPA
Secondary -
Bottle Conditioning -
Keg Conditioning -

Draft: - Apfelwein, Belgian-style Dubbel w/ Grains of Paradise
Bottles:(and still in stock): FIRST AG - (I)IPA 4.1.07, PK's Warm Spring Marzen, Summer Cerveza -BANG, PK's Winter Spice II, Espresso Stout, Indiana Pale Ale, PK's Chocolate Bitter II, Porterfield Porter, and New Year's 2006 remnants.


Last edited by kvh; 09-09-2007 at 08:05 PM.
kvh is offline

Reply With Quote Quick reply to this message
Old 09-09-2007, 08:08 PM   #2
the_bird
10th-Level Beer Nerd
Feedback Score: 0 reviews

the_bird's Avatar
Recipes

Join Date: May 2006
Location: Adams, MA
Posts: 20,499
Liked 371 Times on 306 Posts
Likes Given: 97

Default

Sounds like cooling's going to be the big challenge for you. Not sure how easy it will be to manage two ice baths at once. You could make a pair of small immersion chillers that would either hook up to the sink's faucet, or use a small pump to circulate ice water.

The other option you might have on the boiling side, I've seen pictures (within the last day, I think) of submersible electric elements that people use for boiling. Maybe something like that could be used, perhaps in a 10-12 gallon pot that's also being heated on the stove, so you wouldn't have to split the boil. Just a thought.... if you could do something like that, though, it would make chilling a lot easier. You'd definately need an immersion chiller (no ice bath for 5 gallons), but you'd only have to wrestle with one pot instead of two.

__________________
Come join Yankee Ingenuity!

"I'm kind of toasted. But I looked at my watch and it's only 6:30 so I can't stop drinking yet." - Yooper's Bob
"Brown eye finally recovered after the abuse it endured in Ptown last weekend, but it took almost a full week." - Paulie
"no, he just doesn't speak 'stupid'. i, however, am fluent...." - motobrewer
"... I'll go both ways." - Melana

That'll do, Pigley. That'll do.
the_bird is offline

Reply With Quote Quick reply to this message
Old 09-09-2007, 08:22 PM   #3
kvh
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2005
Location: Baltimore, MD
Posts: 343
Default

What I currently use is an immursion chiller siphoning 5-10 gallons of ice water. It works ok, but you're right, more boil, more heat, longer cool.

I'll look into the submersible electric heaters - that might be nice. My other issue right now is LONG boils, which leads to darker colored beer and a whole day of only brewing...

I found www.theoverstockedkitchen.com, which has both commercial and non-commercial SS stockpots - they have a pair, 20 and 24 qt, which, while not commercial quality, should be fine, and combined are only about $70. Plus, they'll nest when not in use. I'd like to find a pair about a gallon larger each - so I'll keep looking.

Thanks

kvh

__________________
Make beer, not bombs.
(...and not bottle bombs either.)
Primary Fermentor - *empty*
Primary Fermentor -

Secondary - Mystery IPA
Secondary -
Bottle Conditioning -
Keg Conditioning -

Draft: - Apfelwein, Belgian-style Dubbel w/ Grains of Paradise
Bottles:(and still in stock): FIRST AG - (I)IPA 4.1.07, PK's Warm Spring Marzen, Summer Cerveza -BANG, PK's Winter Spice II, Espresso Stout, Indiana Pale Ale, PK's Chocolate Bitter II, Porterfield Porter, and New Year's 2006 remnants.

kvh is offline

Reply With Quote Quick reply to this message
Old 09-09-2007, 08:23 PM   #4
FlyGuy
Feedback Score: 0 reviews

FlyGuy's Avatar
Recipes

Join Date: Jan 2007
Location: Calgary, Alberta
Posts: 3,618
Liked 129 Times on 41 Posts
Likes Given: 7

Default

Yeah, I agree with Bird that siphoning ice water probably won't cut it. A recirculating system using a pump might be your best bet.

You should also think about how you will maintain good fermentation temps in your apartment. Not sure how warm or consistent it would get in there, but you might want to build a fermentation chamber in your closet. Or get an apartment sized-freezer and a temp controller.

Otherwise, you sound good to go. Best of luck!

FlyGuy is offline

Reply With Quote Quick reply to this message
Old 09-09-2007, 10:08 PM   #5
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,004
Liked 967 Times on 647 Posts
Likes Given: 28

Default

You probably won't have enough circuits/current capacity to run hot enough elements to go electric.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 09-09-2007, 10:13 PM   #6
rohanski
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2006
Location: Boerne, Texas
Posts: 433
Default

Your moving to the wrong place for room. Move to Texas. We'll be glad to have another homebrewer have a place to call home.

__________________
rohanski is offline

Reply With Quote Quick reply to this message
Old 09-09-2007, 10:22 PM   #7
kvh
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2005
Location: Baltimore, MD
Posts: 343
Default

Quote:
Originally Posted by Bobby_M
You probably won't have enough circuits/current capacity to run hot enough elements to go electric.
Likely true, though I was imagining a combination gas/electric system, where the electric kept the boil going a little faster/hotter... Does anyone have more info on what Bird was talking about?

kvh.
__________________
Make beer, not bombs.
(...and not bottle bombs either.)
Primary Fermentor - *empty*
Primary Fermentor -

Secondary - Mystery IPA
Secondary -
Bottle Conditioning -
Keg Conditioning -

Draft: - Apfelwein, Belgian-style Dubbel w/ Grains of Paradise
Bottles:(and still in stock): FIRST AG - (I)IPA 4.1.07, PK's Warm Spring Marzen, Summer Cerveza -BANG, PK's Winter Spice II, Espresso Stout, Indiana Pale Ale, PK's Chocolate Bitter II, Porterfield Porter, and New Year's 2006 remnants.

kvh is offline

Reply With Quote Quick reply to this message
Old 09-09-2007, 11:31 PM   #8
Lil' Sparky
Cowboys EAC
Feedback Score: 0 reviews

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 4,013
Liked 50 Times on 33 Posts

Default

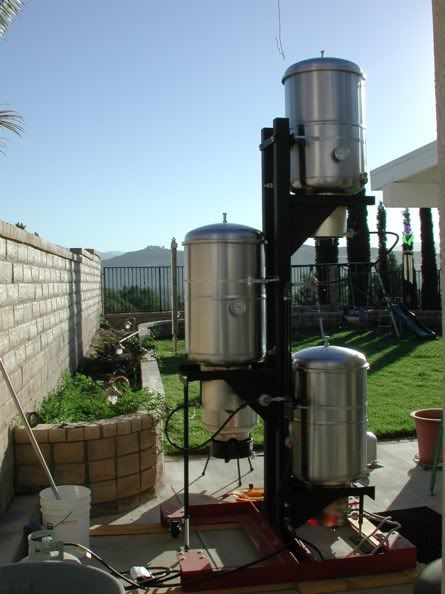

I think you should go with something like Monster Mash's. Seems nice and compact. Just stick it on the patio.

__________________
Quote:
Originally Posted by duffman2 View Post
I dub this beer the Double Slutty Triple Nutty Bodacious Booty Brunette!
Lil' Sparky is offline

Reply With Quote Quick reply to this message
Old 09-09-2007, 11:42 PM   #9
kvh
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2005
Location: Baltimore, MD
Posts: 343
Default

Ha, yeah, wink wink indeed. That'll be in the works, in 5 years or so. For now, though, I think it qualifies as a fire hazard on the 'patio' (fire-escape).

thx though.
kvh

__________________
Make beer, not bombs.
(...and not bottle bombs either.)
Primary Fermentor - *empty*
Primary Fermentor -

Secondary - Mystery IPA
Secondary -
Bottle Conditioning -
Keg Conditioning -

Draft: - Apfelwein, Belgian-style Dubbel w/ Grains of Paradise
Bottles:(and still in stock): FIRST AG - (I)IPA 4.1.07, PK's Warm Spring Marzen, Summer Cerveza -BANG, PK's Winter Spice II, Espresso Stout, Indiana Pale Ale, PK's Chocolate Bitter II, Porterfield Porter, and New Year's 2006 remnants.

kvh is offline

Reply With Quote Quick reply to this message
Old 09-10-2007, 01:18 AM   #10
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,674
Liked 62 Times on 46 Posts
Likes Given: 11

Default

IF...and ONLY IF... you know what you're doing, you may be able to unplug an electric stove (there ought to be an outlet) and use that to incorporate 220v electric into a compact electric HERMS. Look at some of the electric-only systems....that is as small as you'll get with a brew-rig.
