Default Melted handle on my Keggle

Anyone else have an issue of getting too hot on their burner and
burning/damaging their valve?

My last session, I had to crank my 60,000 BTU turkey fryer burner
for 60 min on my keggle to get it up to boiling. I used some alum. foil
to hold heat in under the kettle and caught the paint on the stand on fire
and later the valve handle coating melted on me.

I'm thinking of making some sort of heavy gauge deflector to keep the
heat off of the valve. Any other suggestions?

__________________

RIP-Ludweizen
Mac & Jacks African Amber clone,
-Dog Hair Pale Ale (Inspired by CWeston/Columbus Pale Ale)

megavites is offline

Reply With Quote Quick reply to this message
Old 04-12-2007, 05:38 PM   #2
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,022
Liked 983 Times on 655 Posts
Likes Given: 28

Default

Nadguard(tm) was equally effective in reducing ball valve handle combustion.



When are we going to group-brew man?

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 04-12-2007, 06:12 PM   #3
Lil' Sparky
Cowboys EAC
Feedback Score: 0 reviews

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 4,013
Liked 50 Times on 33 Posts

Default

I really can't imagine why you would have to crank your burner all the way up for an hour to get to a boil. I never turn mine all the way up. If I did, I'd probably melt my ball valve handle, too before long.

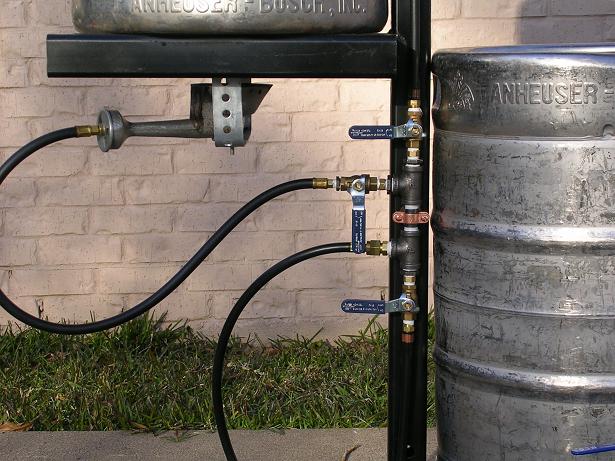

I just posted this in another thread, but I start heating the kettle during the sparge, and it only takes a few minutes to get to a boil when I'm done sparging. My burner's a little closer to the keggle on my brew stand than it was on my turkey fryer. I think this helps with efficient heat transfer, because the flame really spreads around the bottom of the keggle, and not too much heat is escaping around the bottom. I think for me, just turning up the burner would just waste propane. I need to take a pic with my burner on low and show you what I mean. Right now I can just show you this so you can see the distance from burner to keggle.

__________________

Last edited by Lil' Sparky; 05-02-2007 at 07:10 PM.
Lil' Sparky is offline

Reply With Quote Quick reply to this message
Old 04-12-2007, 06:14 PM   #4
Denny's Evil Concoctions
Grande Megalomaniac
Feedback Score: 0 reviews

Denny's Evil Concoctions's Avatar
Recipes

Join Date: Oct 2005
Location: West Kelowna BC, Canada
Posts: 7,767
Liked 51 Times on 42 Posts

Default

No, but my valves stick out more and are a bit higher than yours. I do you a foil heat shiled on my HLT to guard the sight tube I made with plastic compression fitted tubing. (the stuff used for ice makers)

__________________

I may not be an expert, but I did stay at a Holiday Inn Express........ 6 months ago.

http://www.homebrewtalk.com/f39/dennys-quick-dirty-faq-153729/#post1766281

http://groups.homebrewtalk.com/Taproom_Facebook_Repository

Denny's Evil Concoctions is offline

Reply With Quote Quick reply to this message
Old 04-12-2007, 06:15 PM   #5
Lil' Sparky
Cowboys EAC
Feedback Score: 0 reviews

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 4,013
Liked 50 Times on 33 Posts

Default

Quote:
Originally Posted by Bobby_M
Nadguard(tm) was equally effective in reducing ball valve handle combustion.
I think you could shorten this to say, "Nadguard was equally effective in reducing ball combustion.
__________________
Lil' Sparky is offline

Reply With Quote Quick reply to this message
Old 04-12-2007, 06:31 PM   #6
sirsloop
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2006
Location: South River, NJ
Posts: 2,592
Liked 17 Times on 15 Posts
Likes Given: 1

Default

Sounds like you need to stop brewing beer and start marketing

__________________
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~~~~~~
~~~~~~~~~~~___//_ ____________________________~~~~~~~~~~~
~~~~~~~~~_/ [][]| | /```\/```\/```\/```\/```\ |~~~~~~~~~~
~~~~~~~_/_______| |____NOW TRIPLE HOPPED______|~~~~~~~~~~
~~~___/[_]| 00 /| | \,,,/\,,,/\,,,/\,,,/\,,,/ |~~~~~~~~~~
~~|___|___|___/_| |___________________________|~~~~~~~~~~
~~|=(*)[________]==(*)(*)=| \________/=(*)(*)=|~~~~~~~~~~
sirsloop is offline

Reply With Quote Quick reply to this message
Old 04-12-2007, 06:32 PM   #7
olllllo
[]-O-[]
Feedback Score: 0 reviews

olllllo's Avatar
Recipes

Join Date: Apr 2006
Location: Phoenix, Arizona
Posts: 13,514
Liked 125 Times on 106 Posts
Likes Given: 13

Default

Did you put your valve over the hole in the Keggle skirt. That's a no-no that sometimes gets overlooked.

__________________
Rabbit And Coyote Schwag
Rob - Phoenix Ambassador to Milwaukee
Where did your avatar go?
Ginger Beer for Moscow Mules Bacon Vodka
Twitter
olllllo is offline

Reply With Quote Quick reply to this message
Old 04-13-2007, 01:39 AM   #8
megavites
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2007
Location: Jackson, NJ
Posts: 177
Default

Spark,
I like your setup. Is that a galv. strip or alum. holding the burner?
I have a second burner that I could take apart and do something like that.

As far as the keg, I made sure to keep the valve away from the holes
on the bottom. I even plugged them with alum. foil. I don't think I can heat
earlier, because I'm fly sparging. It would mess up my hop/boil schedule.
A may pick up a jet burner from a buddy.

Bobby,
I'd certainly welcome a group brew session. Although I would be doing
more listening than sharing of my brewing knowledge. I'll PM my cell.

Looks like it'll have to be the Nadguard(tm) for now until I come up
with something a little more robust.

__________________

RIP-Ludweizen
Mac & Jacks African Amber clone,
-Dog Hair Pale Ale (Inspired by CWeston/Columbus Pale Ale)

megavites is offline

Reply With Quote Quick reply to this message
Old 04-13-2007, 03:47 AM   #9
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,022
Liked 983 Times on 655 Posts
Likes Given: 28

Default

Once I mount this keggle on a proper sculpture, I'll be adding a wind/heat shield out of aluminum roof flashing. I have a bunch sitting around just waiting to be used.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 04-13-2007, 03:57 AM   #10
brewman !
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Posts: 1,227
Liked 14 Times on 13 Posts
Likes Given: 16

Default

If you have enough heat to melt stuff on the side of your keggle, there is a ton of heat being wasted. I want a fast boil as much as the next guy, but I think these burners have gotten out of control heat wise.

I'm going to investigate using propane fueled radiant heaters under my pots. I suspect that will inncrease the energy efficiency a lot. Maybe boil the wort faster too.

__________________

Getting back into brewing...

brewman ! is offline
