Old 11-18-2009, 03:45 PM   #61
johnlvs2run
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: western u.s.
Posts: 56
Liked 1 Times on 1 Posts
Likes Given: 27

Default

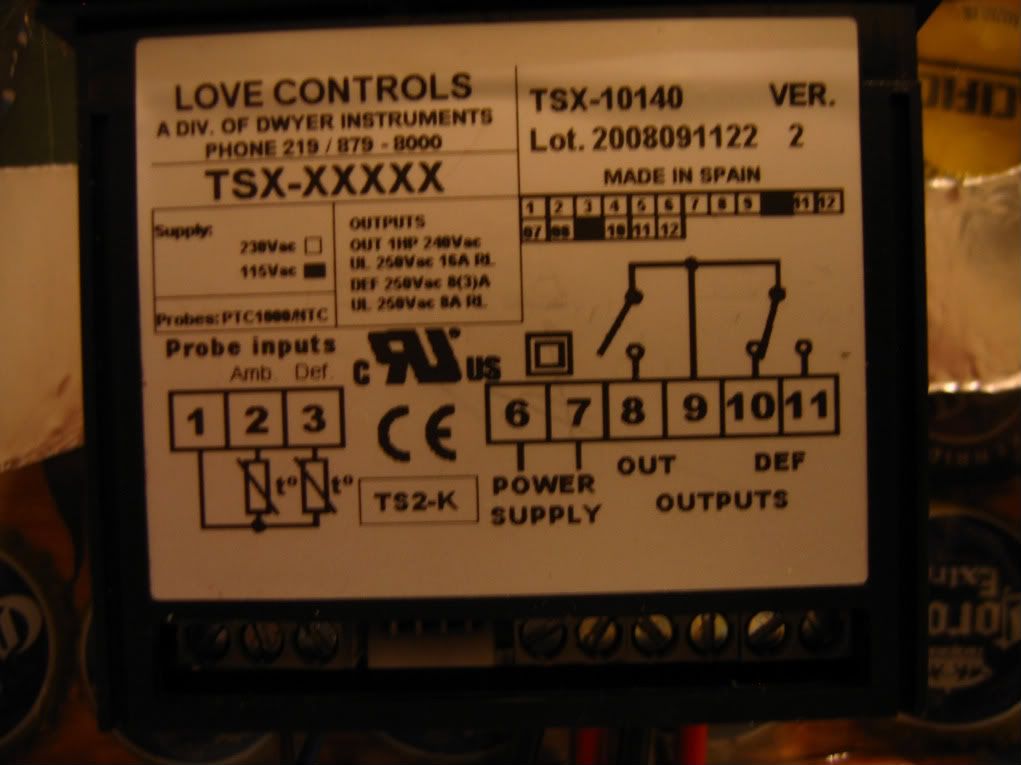

I sent email to Dwyer Instruments and they were very helpful with replies.

info@dwyer-inst.com

Also alies@dwyermail.com or edelreal@dwyermail.com .

I followed up with a phone call to them, which was quite helpful too.
219 879-8000



johnlvs2run is offline

Reply With Quote Quick reply to this message
Old 11-18-2009, 05:00 PM   #62
Rick500
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: KY
Posts: 2,617
Liked 9 Times on 7 Posts
Likes Given: 1

Default

Quote:
Originally Posted by Kelly. View Post
i was wondering if anyone could help me out with a wiring diagram for this love controller?


i cant seem to get it figured out
im using a 5cu holiday freezer if that matters.

i keep getting a EP2 error (defrosting probe error)
thanks in advance
My reply (#58) on the page previous to this one is how you hook that one up.


__________________
Rick500 is offline

Reply With Quote Quick reply to this message
Old 11-18-2009, 05:09 PM   #63
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,220
Liked 50 Times on 45 Posts
Likes Given: 105

Default

If you are not using the defrost function set d2=0, P4= 1


Cheers,
ClaudiusB

ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 11-20-2009, 10:17 PM   #64
Kelly.
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2007
Location: A Mile High - Colorado
Posts: 84
Default

Quote:
Originally Posted by ClaudiusB View Post
If you are not using the defrost function set d2=0, P4= 1


Cheers,
ClaudiusB
i think this is what i was missing.
Thanks!
__________________

Cloud 9 Brewing

Kelly. is offline

Reply With Quote Quick reply to this message
Old 12-11-2009, 04:44 PM   #65
hdthorn
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Louisiana
Posts: 2
Default

I have a TSS2-2200 and would like to controll a 220 AC unit with a heat strip in a walk in cooler. Can anyone help me with this?

__________________
hdthorn is offline

Reply With Quote Quick reply to this message
Old 01-16-2010, 05:46 AM   #66
erikrocks
Feedback Score: 0 reviews

erikrocks's Avatar
Recipes

Join Date: Jun 2009
Location: Ithaca, NY
Posts: 625
Liked 11 Times on 9 Posts
Likes Given: 7

Default

First off, thanks everyone...this thread has been a great reference to me as I build my fermentation chamber out of a free mini fridge I picked up today and a $12 heater from Home Depot.

My question is about the settings. I don't really understand what the r0 dependency means. What do you all have that set to? IND or DEP?

Thanks.

EDIT: I figured it out. IND is the way to go.

__________________

Last edited by erikrocks; 01-16-2010 at 05:57 AM.
erikrocks is offline

Reply With Quote Quick reply to this message
Old 02-04-2010, 10:21 PM   #67
MBasile
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: Sunnyvale, CA (NorCal)
Posts: 1,513
Liked 7 Times on 7 Posts
Likes Given: 2

Default

This is a very helpful thread, but I have a question. I want to use a ceramic heater or a heating pad in my fermentation chamber, but I'm concerned that the heated )or coled air from the compressor) wont circulate around the chamber very well. Would it draw too much current through the controller (TSS2-2100) to wire an electrical outlet to each output so that I can plug the heater/fridge in as well as a 4" fan to each output?

Also, does it matter if the hot from the input goes into 4 or 5? I've seen some diagrams with it going into 4, and these ones with it going into 5.

__________________

Up next: beer
Fermenting: beer
Conditioning: and more beer

Total gallons in 2012: 10


Last edited by MBasile; 02-04-2010 at 10:29 PM.
MBasile is offline

Reply With Quote Quick reply to this message
Old 05-25-2010, 11:26 PM   #68
ubermick
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: San Rafael, California
Posts: 989
Liked 20 Times on 19 Posts
Likes Given: 8

Default

Erm, is there any chance that someone could post up the "standard" set of parameters for programming the TS-13010 for a keezer? Mine's hooked up and working, but it's coasting WAY past my set point (38) by 5-6 degrees, with a differential of 1?

The LAST thing I need is frozen kegs!

__________________
Hey look, a Brutus! | Hey look, a keezer! | Hey look, a milling station!
ubermick is offline

Reply With Quote Quick reply to this message
Old 05-25-2010, 11:32 PM   #69
johnlvs2run
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: western u.s.
Posts: 56
Liked 1 Times on 1 Posts
Likes Given: 27

Default

Quote:
Originally Posted by ubermick View Post
Erm, is there any chance that someone could post up the "standard" set of parameters for programming the TS-13010 for a keezer?
These are the settings that I use, but 1 degree higher in winter.

__________________
how to convert a chest freezer to a fridge
johnlvs2run is offline
mtnrider Likes This
Reply With Quote Quick reply to this message
Old 05-26-2010, 12:03 AM   #70
ubermick
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: San Rafael, California
Posts: 989
Liked 20 Times on 19 Posts
Likes Given: 8

Default

Cheers for that, John. More or less what I had... just concerned by that overshoot (which I see you have as well)



__________________
Hey look, a Brutus! | Hey look, a keezer! | Hey look, a milling station!
ubermick is offline

Reply With Quote Quick reply to this message
