Default Looking at drilling hole into cheest freezer, where to drill?

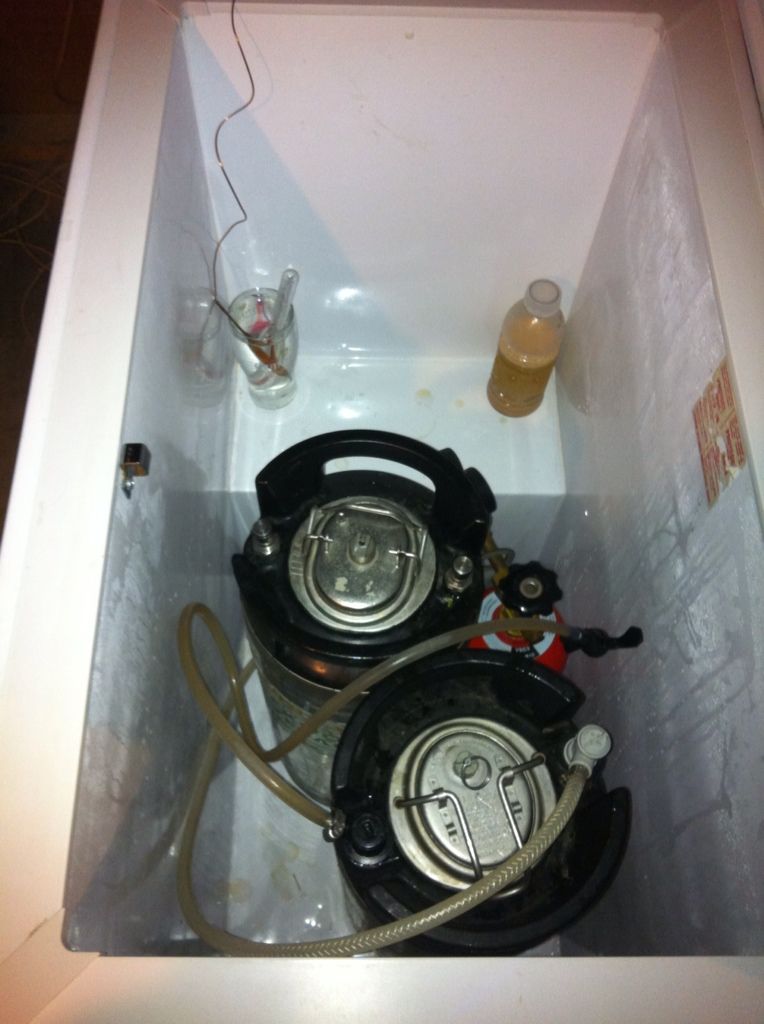

I'm looking at moving the tank to the outside for space reasons and easier adjusting. Looking to put a manifold through but don't know where to drill for these things. Does it vary widely across different brands and models or do they mostly follow a similar design?

Thank you.
__________________
cutchemist42 is offline

Reply With Quote Quick reply to this message
Old 10-25-2012, 06:19 PM   #2
cutchemist42
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Winnipeg
Posts: 148
Likes Given: 8

Default

Right now, I'm thinking of just drilling through the top part based on searches here.

__________________
cutchemist42 is offline

Reply With Quote Quick reply to this message
Old 10-25-2012, 07:23 PM   #3
BrewThruYou
Feedback Score: 2 reviews
Recipes

Join Date: Sep 2010
Location: Ambler
Posts: 1,686
Liked 35 Times on 32 Posts
Likes Given: 16

Default

Yeah, I would be really scared to drill the sides...they are probably lined with coils.

__________________
BrewThruYou is offline

Reply With Quote Quick reply to this message
Old 10-25-2012, 07:29 PM   #4
suds_zville
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: Central, Indiana
Posts: 79
Liked 3 Times on 3 Posts
Likes Given: 1

Default

If you just need to run a co2 line in, I'd just cut a hole in the middle of the weatherstripping between the lid and freezer and snake the line through there.

__________________
suds_zville is offline

Reply With Quote Quick reply to this message
Old 10-25-2012, 07:38 PM   #5
Balanced_Brew
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2012
Location: Portland, OR
Posts: 32
Liked 3 Times on 2 Posts

Default

Build a collar for it, then drill through that wood. Not the easiest answer, but you'll be glad you did.

__________________
www.exnovobrew.com
Balanced_Brew is offline
2
People Like This
Reply With Quote Quick reply to this message
Old 10-25-2012, 07:42 PM   #6
Golddiggie
Feedback Score: 1 reviews

Golddiggie's Avatar
Recipes

Join Date: Dec 2010
Location: Between here and there, and everywhere
Posts: 12,058
Liked 477 Times on 420 Posts
Likes Given: 266

Default

I'd look for repair drawings for the make/model freezer. That will show you where the coils are located. Once you know that, you can plan the hole placement.

Personally, I think the collar idea is a sound one. Even if you just use some 2x4's to do it. Then get one of the gas bulkheads (Austin sells them) to send the CO2 into the keezer. That way, you don't need to worry about sealing around the hose. Plus, it gives you other options. Like connecting a ball lock post to either side for easy connect/disconnect of the CO2 without needing a wrench. I'm looking at doing that with at least one of the CO2 feeds going into my brew fridge.

__________________
Hopping Tango Brewery

跟猴子比丟屎 ・ Gun HOE-tze bee DIO-se

On Tap: Caramel Ale, Mocha Porter II, MO SMaSH IPA
Waiting/Carbonating: 12.5% Wee Honey II, 8.9% Old Ale, English Brown Ale, Lickah ESB, Mocha Porter II
Fermenting
K1:
K2: Epic mead
K3: TripSix
On Deck: Caramel Ale
Aging:mead
Mead [bottled]:Oaked Wildflower Traditional, Mocha Madness, Blackberry Melomel, maple wine
Golddiggie is offline

Reply With Quote Quick reply to this message
Old 10-25-2012, 07:50 PM   #7
jds
Feedback Score: 0 reviews

jds's Avatar
Recipes

Join Date: Oct 2007
Location: Littleton, CO
Posts: 1,947
Liked 17 Times on 14 Posts

Default

Quote:
Originally Posted by Golddiggie View Post
I'd look for repair drawings for the make/model freezer. That will show you where the coils are located. Once you know that, you can plan the hole placement.

Personally, I think the collar idea is a sound one. Even if you just use some 2x4's to do it. Then get one of the gas bulkheads (Austin sells them) to send the CO2 into the keezer. That way, you don't need to worry about sealing around the hose. Plus, it gives you other options. Like connecting a ball lock post to either side for easy connect/disconnect of the CO2 without needing a wrench. I'm looking at doing that with at least one of the CO2 feeds going into my brew fridge.
I did something similar, but just used standard gas QD's you'd buy at the hardware store. It makes it a lot easier to pull off the CO2 tank for refills, pushing beer from fermenter to keg, and (believe it or not) blowing out my sprinkler system in the fall. You really do want to put a check valve or at least a ball valve in there though, to make sure you can hold pressure in your kegs when the gas bottle's not connected.
__________________
jds is offline

Reply With Quote Quick reply to this message
Old 10-25-2012, 07:50 PM   #8
dbrewski
This is my User Title
Feedback Score: 0 reviews

dbrewski's Avatar
Recipes

Join Date: Oct 2011
Location: Indeterminate
Posts: 1,019
Liked 52 Times on 46 Posts
Likes Given: 36

Default

Mine was in my garage, and it was hot as hell, and the thing had been running a long time. I could feel by touch where the coils were...it was warm to the touch. There was really only a couple of areas where there were no coils, it was within 1-2" of each hinge. Took my time, drill through the metal, stuck a thin wire in there to check, and then finished up.

maybe you set the thing really low and let it run a while and do the same.

__________________
dbrewski is offline

Reply With Quote Quick reply to this message
Old 10-25-2012, 07:52 PM   #9
beaksnbeer
Feedback Score: 1 reviews

beaksnbeer's Avatar
Recipes

Join Date: May 2011
Location: New Port Richey, Florida
Posts: 2,826
Liked 487 Times on 324 Posts
Likes Given: 67

Default

The lid is always a safe bet

__________________
Quote:
Home of the 12 Tap keezer
beaksnbeer is offline
Irrenarzt Likes This
Reply With Quote Quick reply to this message
Old 10-25-2012, 10:31 PM   #10
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,904
Liked 940 Times on 626 Posts
Likes Given: 28

Default

Put a collar between the body and lid. It's wasteful to open the lid every time you want to pour anyway.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now
mariojr Likes This
Reply With Quote Quick reply to this message
