Default In-Line Sight Glass (With Review Pics)

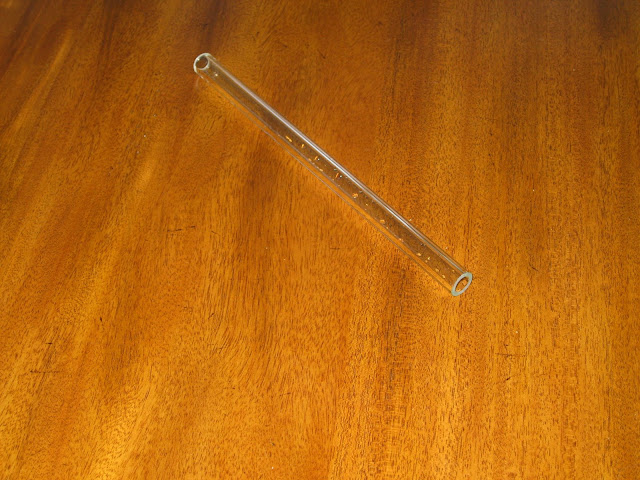

I'm sharing an idea I've had for an in-line sight glass. I will use it to monitor the clarification of the wort as well as monitor run-off color. I picked up a 1/2" diameter 8" long borosilicate glass tube from McMaster yesterday for less then $10. (3723K11) I plan to insert the sight glass just after my mash tun, on the low pressure side of the pump. I'm not worried about the pressure in the glass, but I'd like to get away with a slip fit from the silicone hose. If the slip fit doesn't cut it, I'll add some stainless hose clamps. The tubing is really thick and seems to be fairly strong. The ID is a little smaller than I expected, due to the wall thickness, but since it will be on the inlet side of a throttled pump, I don't expect any issues. If I have any issues I may try the 5/8" diameter next. I'll post pics from my next batch.



__________________

Last edited by mZnthebend; 04-01-2009 at 01:14 AM.
mZnthebend is offline

Reply With Quote Quick reply to this message
Old 03-20-2009, 02:14 PM   #2
bull8042
I like 'em shaved
Feedback Score: 0 reviews

bull8042's Avatar
Recipes

Join Date: Jul 2008
Location: Fort Mill, SC
Posts: 10,279
Liked 445 Times on 443 Posts
Likes Given: 11

Default

Interesting idea. Let us know how it goes with this. I am using the silicon tubing just so I can see the wort in some key areas of my rig, but I prefer to use the thermoplastic both because it is more rigid, and also because it is a fair bit cheaper.
If this works well on the suction-side of the pump, the I can go all thermoplastic and save $0.70/ft every time I have to replace it.

__________________
"I brew with a water cooler and some part from the toilet." - JohnnyO

"I do gravity feed the last gallon or two through my Therminator, but I expect you could suck start a Volkswagen before you could suck start one of these. - GilaMinumBeer

"..... Bull was right." - TXCurtis
bull8042 is offline

Reply With Quote Quick reply to this message
Old 03-20-2009, 04:41 PM   #3
jcdillin
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: Miami, FL
Posts: 705
Liked 2 Times on 2 Posts
Likes Given: 1

Default

That is a really cool idea. I would take a sanke spear and cut it the same length as the glass tube and then cut some circles out of the middle. Kind of a makeshift glass protector.

__________________

Current Rig
4.5KW E-HLT
5.5KW E-Kettle
MasterFlex Peristaltic Primary Pump
March Secondary Pump
Therminator for Chilling

Planned
Automated Grain Drop
Automated Hop Dropper


System controlled via BrewTroller

jcdillin is offline

Reply With Quote Quick reply to this message
Old 03-20-2009, 05:02 PM   #4
mZnthebend
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Aurora, OH
Posts: 102
Liked 4 Times on 2 Posts

Default

Not a bad idea. I have one of those just laying around. Maybe I could mill some long slots in it at work. I'll have to see if it would fit in there nicely.

__________________
mZnthebend is offline

Reply With Quote Quick reply to this message
Old 03-20-2009, 05:57 PM   #5
jcdillin
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: Miami, FL
Posts: 705
Liked 2 Times on 2 Posts
Likes Given: 1

Default

yeah i'm thinking the OD of the silicone is close to the ID of the spear, might just have to take strips of the silicone tubing and double it up. I'm for sure going to try something like this on my setup.

__________________

Current Rig
4.5KW E-HLT
5.5KW E-Kettle
MasterFlex Peristaltic Primary Pump
March Secondary Pump
Therminator for Chilling

Planned
Automated Grain Drop
Automated Hop Dropper


System controlled via BrewTroller

jcdillin is offline

Reply With Quote Quick reply to this message
Old 03-20-2009, 07:50 PM   #6
Anthony_Lopez
Feedback Score: 0 reviews

Anthony_Lopez's Avatar
Recipes

Join Date: Mar 2008
Location: Groton, MA
Posts: 1,694
Liked 17 Times on 8 Posts
Likes Given: 2

Default

Quote:
Originally Posted by bull8042 View Post
I prefer to use the thermoplastic both because it is more rigid, and also because it is a fair bit cheaper.
If this works well on the suction-side of the pump, the I can go all thermoplastic and save $0.70/ft every time I have to replace it.
Where are you sourcing this thermoplastic tubing? I'm trying to decide on tubing for my rig, and I'd love to cut some cost and avoid silicone tubing if I can.
__________________

I'd rather have a bottle in front of me, than a frontal lobotomy.
--Tom Waits

You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer.
--Frank Zappa

My Cheap and Easy Stirplate

Anthony_Lopez is offline

Reply With Quote Quick reply to this message
Old 03-20-2009, 08:02 PM   #7
bull8042
I like 'em shaved
Feedback Score: 0 reviews

bull8042's Avatar
Recipes

Join Date: Jul 2008
Location: Fort Mill, SC
Posts: 10,279
Liked 445 Times on 443 Posts
Likes Given: 11

Default

Quote:
Originally Posted by Anthony_Lopez View Post
Where are you sourcing this thermoplastic tubing? I'm trying to decide on tubing for my rig, and I'd love to cut some cost and avoid silicone tubing if I can.
I got mine from NB - Search Results

At $1.40 per ft, it saved me a dollar or twelve! It is thick wall and more rigid than the silicone, and you cannot see through it, but I really like it.
__________________
"I brew with a water cooler and some part from the toilet." - JohnnyO

"I do gravity feed the last gallon or two through my Therminator, but I expect you could suck start a Volkswagen before you could suck start one of these. - GilaMinumBeer

"..... Bull was right." - TXCurtis
bull8042 is offline

Reply With Quote Quick reply to this message
Old 03-20-2009, 08:21 PM   #8
jcdillin
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: Miami, FL
Posts: 705
Liked 2 Times on 2 Posts
Likes Given: 1

Default

Quote:
Originally Posted by Anthony_Lopez View Post
Where are you sourcing this thermoplastic tubing? I'm trying to decide on tubing for my rig, and I'd love to cut some cost and avoid silicone tubing if I can.
Any reason in particular for avoiding the silicone?
__________________

Current Rig
4.5KW E-HLT
5.5KW E-Kettle
MasterFlex Peristaltic Primary Pump
March Secondary Pump
Therminator for Chilling

Planned
Automated Grain Drop
Automated Hop Dropper


System controlled via BrewTroller

jcdillin is offline

Reply With Quote Quick reply to this message
Old 03-20-2009, 09:05 PM   #9
Anthony_Lopez
Feedback Score: 0 reviews

Anthony_Lopez's Avatar
Recipes

Join Date: Mar 2008
Location: Groton, MA
Posts: 1,694
Liked 17 Times on 8 Posts
Likes Given: 2

Default

$$$ is king... Building an all stainless brewing rig is going to be expensive as all hell. Eventually, I'm going to be making all of the wort transfer lines with SS tubing as well, so I don't want to buy the silicone tubing if I'm not going to be using it in the end.

__________________

I'd rather have a bottle in front of me, than a frontal lobotomy.
--Tom Waits

You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer.
--Frank Zappa

My Cheap and Easy Stirplate


Last edited by Anthony_Lopez; 03-20-2009 at 09:09 PM.
Anthony_Lopez is offline

Reply With Quote Quick reply to this message
Old 03-31-2009, 10:09 PM   #10
mZnthebend
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Aurora, OH
Posts: 102
Liked 4 Times on 2 Posts

Default Reporting Back with Results and Pics

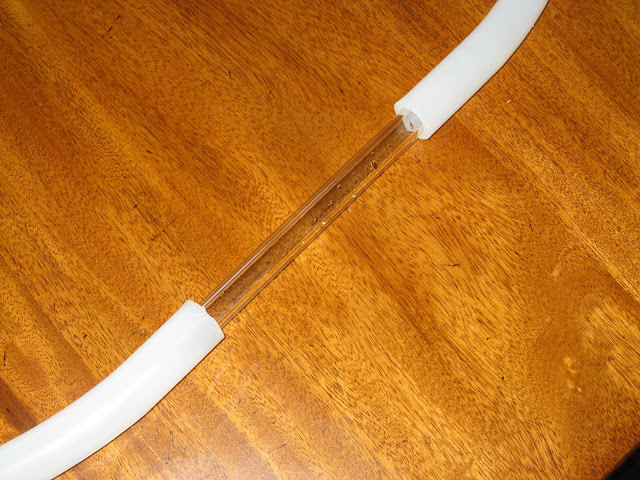

Worked great. I think 1/2" OD Glass Tubing is a little small for sealing with the 1/2" ID silicone. It sealed up, but with considerable tightening of the hose clamps. I think the 5/8" OD Glass Tubing would be a better route and will most likely get the 5/8" Tubing next.
