Default kettle measuring stick

I want to make a stick for measuring the depth of the wort in my kettle during the boil.

What do you guys use? I was thinking a peice of oak dowel or 2x2 oak with notches every half gallon or so.

Can I see what everybody else uses?

Linc

__________________

Tap#1 = Beer
Tap#2 = Beer

THey change to often to keep up with the Sig.

missing link is offline

Reply With Quote Quick reply to this message
Old 02-08-2008, 04:48 PM   #2
Boerderij_Kabouter
Feedback Score: 0 reviews

Boerderij_Kabouter's Avatar
Recipes

Join Date: Dec 2007
Location: Oconomowoc, Wisconsin
Posts: 8,461
Liked 115 Times on 100 Posts
Likes Given: 11

Default

I put notches in my oak mash paddle and use that for everything. It looks cool and is one less piece of equipment I need around.

Boerderij_Kabouter is offline

Reply With Quote Quick reply to this message
Old 02-08-2008, 04:52 PM   #3
Bombo80
Feedback Score: 0 reviews

Bombo80's Avatar
Recipes

Join Date: Jan 2008
Location: Maple Grove, Minnesota
Posts: 382
Liked 3 Times on 3 Posts

Default

I was thinking about something like this. I don't have anyway to gauge how much fluid I have in my keggle, or my smaller (8.5gal) boil pot. I might just use the long plastic spoon I have, and make some marks on that. Starting with 5 gal in the pot, then stick the measuring stick in to find out the level, then mark it. Then add a gallon and mark again. I will probably do this up to the 15 gal. level on my keggle. Might have to use a different measuring stick for my other boil pot.

Good idea, anyway.

__________________

On Deck - Crabapple Wine

Secondary - Pomegranate Wine, Red Table Wine, Wild Fox Grape Wine, Blueberry Wine, Surly Furious clone

Bulk Aging - Brewtopia Barleywine, Sugar Beet Wine

Bombo80 is offline

Reply With Quote Quick reply to this message
Old 02-08-2008, 05:05 PM   #4
missing link
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2007
Location: Highland, MI
Posts: 667
Liked 1 Times on 1 Posts

Default

I had started with my plastic spoon but the notches are hard to see in the boiling couldron of steaming bubbling beer. Especially when boiling 7 gallons in a 15 gallon pot. With the wood stick, you can stick it in the pot and lift it out to see where the fluid level is like an oil dispstick. That's my thought anyway.

__________________

Tap#1 = Beer
Tap#2 = Beer

THey change to often to keep up with the Sig.

missing link is offline

Reply With Quote Quick reply to this message
Old 02-08-2008, 05:10 PM   #5
WortMonger
United States Mashtronaut
Feedback Score: 0 reviews

WortMonger's Avatar
Recipes

Join Date: Nov 2006
Location: Edmond, OK, Oklahoma
Posts: 3,132
Liked 28 Times on 27 Posts
Likes Given: 3

Default

I use a yard stick.

__________________
"Beer... Nutritious and Delicious!"

"It's like a 15.5 gallon Mr. Beer!"
WortMonger is offline

Reply With Quote Quick reply to this message
Old 02-08-2008, 05:24 PM   #6
SenorWanderer
Beer Maniac
Feedback Score: 0 reviews

SenorWanderer's Avatar
Recipes

Join Date: Aug 2007
Location: Denver
Posts: 579
Liked 2 Times on 2 Posts
Likes Given: 1

Default

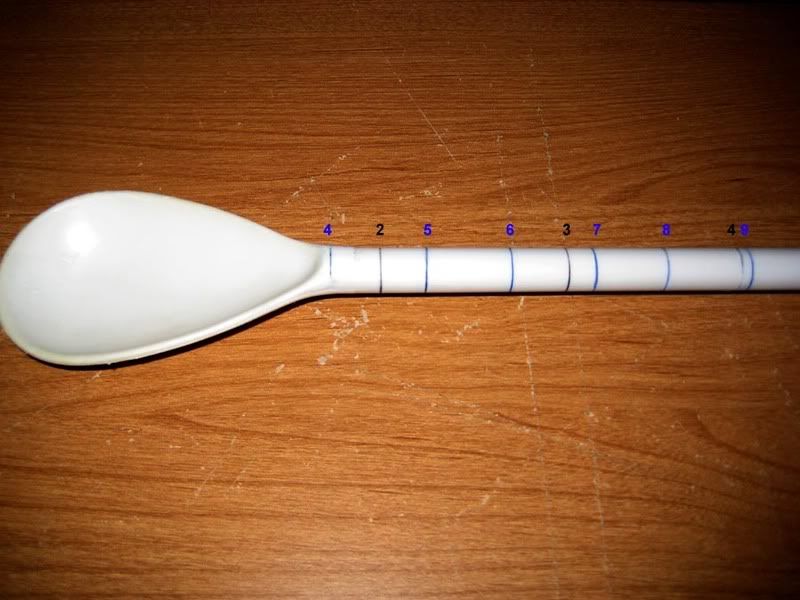

i used the spoon that came with my first beginners kit. i did exactly what Bombo80 talked about; marked the spoon with a sharpie for each gallon i added. after i had done 4-5 gallons on my 15 gallon kettle, i measured to find out that it was just over an inch per gallon, so i continued to mark off by measuring. the only reason i was able to do this is that my boil kettle has straight parallel sides. this wouldn't be as accurate on a keggle because of the way the sides bow. after i was done measuring i used a pipe cutter (the kind with a cutting wheel that you twist) to groove the marks. then i came back with the sharpie and colored in the grooves, making sure to get the ink all the way into the groove. next i sanded the stem of the spoon with 120 sandpaper to smooth out the bumps the pipe cutter left behind. i followed that up with 400 grit just to make it really smooth. the blue marks are for my 15 gallon kettle, and the black marks are for my 5 gallon. if i hadn't have had this spoon laying around i would have just used a piece of small diameter pvc pipe. if you're really fancy (but not fancy enough to make a sight glass) you could use a length of copper and notch it the same way, and tack that into the inside of the keggle.
__________________
SenorWanderer is offline

Reply With Quote Quick reply to this message
Old 02-08-2008, 06:36 PM   #7
WBC
Feedback Score: 0 reviews

WBC's Avatar
Recipes

Join Date: Jun 2007
Location: La Puente, CA, California
Posts: 2,175
Liked 8 Times on 8 Posts

Default

A sight glass is just a bunch more parts to clean. I personally have opted not to have any for this reason.

__________________

Cheers,
WBC

Fermentor 1: Bill's House Ale II, Fermentor 2: German Helles, Fermentor 3: Bill's Schworzbier (Black Bier)
Tap 1: Bill's House Ale II, Tap 2: German Hefewizen, Tap 3: Nut Brown Ale
Future Brews: Stone IPA Clone, Blonde Ale, Budvar Clone, Newcastle Clone
New toy: Blichmann 27 gallon fermentor


“If you find yourself in a hole, the first thing to do is stop digging”

“Good judgment comes from experience, and a lotta that comes from bad judgment”

WBC is offline

Reply With Quote Quick reply to this message
Old 02-08-2008, 11:53 PM   #8
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,674
Liked 61 Times on 46 Posts
Likes Given: 11

Default

I took my 21" brewing spoon (SS, can be had at morebeer) and notched both sides with my grinder at each gallon mark. No site glasses to break...or even buy. It does have a way of snagging my mesh bags, but not too badly. This is highly visible, durable, and serves a dual purpose.

__________________
UNIBREW 5500 SINGLE VESSEL BREWERY
WOODEN SINGLE TIER
ScubaSteve is offline

Reply With Quote Quick reply to this message
Old 02-09-2008, 12:22 AM   #9
Lil' Sparky
Cowboys EAC
Feedback Score: 0 reviews

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 4,013
Liked 48 Times on 32 Posts

Default

Quote:
Originally Posted by WBC
A sight glass is just a bunch more parts to clean. I personally have opted not to have any for this reason.
Not really. I just blow some water through them as I'm cleaning up. Easy.
__________________
Quote:
Originally Posted by duffman2 View Post
I dub this beer the Double Slutty Triple Nutty Bodacious Booty Brunette!
Lil' Sparky is offline

Reply With Quote Quick reply to this message
Old 02-09-2008, 12:47 AM   #10
Jim Karr
Feedback Score: 0 reviews

Jim Karr's Avatar
Recipes

Join Date: Dec 2005
Location: SW Michigan..Bangor/Covert area
Posts: 1,271
Liked 5 Times on 4 Posts

Default

I took a piece of 1/2" CPVC pipe, marked it with a sharpie, and also drilled holes through it at the marks. Works great!

__________________

As for me and my household, we shall serve the Lord. Joshua




"God is great, beer is good, people are crazy." Some country artist

Jim Karr is offline
