Default Buying buttons/switches on Ebay is pissing me off... can someone translate?

Hey guys!

I'm trying to buy a bunch of good industrial water/oil resistant buttons off of Ebay to use in my brewing control panel. Names like Allen-Bradley, Cutler Hammer, ABB, etc. Stuff that can live up to abuse. Stuff I'm used to seeing on plant floors.

Problem is the terminology. Some of it doesn't make sense to me and I'm familiar with terms like DPST (double pole/double throw), NO (normally open), NC (normally closed). Some of this stuff baffles me as they never seem to tell you how many poles or throws any of these switches have.

Example 1: NEW 22MM Selector Switch 3 Position Maintained 1NO/1NC
Ebay Link

It says it's a "SELECTOR SWITCH, 3 POSITION * MAINTAINED, 1 NO/1NC". Ok, it's switch with 3 positions but what's open/closed in each of the 3 positions? How can it have 1 NO contact and 1 NC contact? Under which circumstances? How many poles? Since it's 3 position is that 3-throw?


Example 2: PUSHBUTTON SELECTOR SWITCH AB ALLEN BRADLEY 800T-H2 XA
Ebay Link

Seems simple. It says it's a "2 P0SITION SELECTOR SWITCH. 1 NORMALLY OPEN AND 1 NORMALLY CLOSED CONTACT BLOCK". Ok, that makes sense, but why the word PUSHBUTTON in the title? How's that possible? It's a 2-position rotating switch. Or is it?

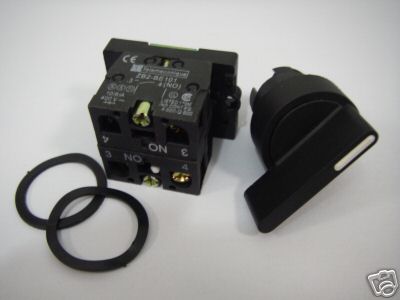

Example 3: Telemecanique Latching Select ON-OFF-ON Switch,EJ33
Ebay Link

It says it's a "Selector Switch. ON(left)-OFF(middle)-ON(right) LATCHING TYPE.". So it's 3 throw right? Or is it? But exactly how are the contacts wired? How am I supposed to know that? What's "Latching" mean? Does that mean "maintained"? (Ie: not momentary contact?)


Simple SPST switches (like example 2) are easy. Problem is that I'm looking for a DP3T (double pole, 3 throw) switch because I want to be able to be able to do the following in one switch so that only either my BK or HLT element is on at once in my 30A setup:

(1) Have BK PID send a control signal to BK SSR while HLT PID is cut off from HLT SSR.
(2) Both PIDs cut off from sending a signal to the PIDs (Switch center/off position).
(3) Have HLT PID send a control signal to HLT SSR while BK PID is cut off from BK SSR.

Forgetting Ebay for a moment, can anyone recommend any online stores that sell NEMA 4/12 style switches/buttons/pilot lights?

Kal


kal is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 12:40 AM   #2
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,681
Liked 64 Times on 47 Posts
Likes Given: 11

Default

Sometimes those stores hire people to put things on ebay who know nothing about what they're selling. It sounds like you know exactly what you want....you should just send the seller a message or call them. Ebay can be a PITA, or you can score cool stuff on the cheap. I guess it's a two way street.

ScubaSteve is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 12:44 AM   #3
kal
Feedback Score: 0 reviews

kal's Avatar
Recipes

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 2,158
Liked 212 Times on 145 Posts
Likes Given: 6

Default

Hey Steve, thanks for the input. Emailing them all would be a full time job.

I don't think it's that they don't know what they're talking about as I'm noticing very similar terminology with most of the sales so I think there's something I'm missing. Maybe these industrial switches are incredibly simple inside so that multiple poles/throws aren't usually done or something so how they work can be described simply. I dunno.

I wish I had a place I could walk in to and play around and try these things out. Trying to do it online is wasting me hours and hours. Frustrating.

Kal

kal is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 12:50 AM   #4
Yuri_Rage
Gritty.
Feedback Score: 0 reviews

Yuri_Rage's Avatar
Recipes

Join Date: Jul 2006
Location: Southwest
Posts: 13,955
Liked 622 Times on 388 Posts
Likes Given: 57

Default

If I'm reading this correctly, you want a DPDT switch with an off or "neutral" center position.

EDIT:
Perhaps like this one:
http://cgi.ebay.com/30-Amp-DPDT-3-Po...3286.m20.l1116

__________________
Homebrewed Blog..........YouTube Channel .......... Shirts, posters, etc
Yuri_Rage is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 12:48 PM   #5
kal
Feedback Score: 0 reviews

kal's Avatar
Recipes

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 2,158
Liked 212 Times on 145 Posts
Likes Given: 6

Default

Hi Yuri!

Yes! That's exactly what I need. I didn't know you could buy double throw switches with an 'off' or 'neutral'. I was going to use the center pole as the off but this is better/simpler.

So the switch is exactly what I want, but I want an industrialized version like in the examples above. One that can be exposed to the elements.

This helps a lot though - thanks! I have extra ammo now.

Kal

__________________
TheElectricBrewery.com: A step by step guide to building your own electric brewery
My basement/bar/brewery build 2.0
kal is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 01:12 PM   #6
kal
Feedback Score: 0 reviews

kal's Avatar
Recipes

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 2,158
Liked 212 Times on 145 Posts
Likes Given: 6

Default

Ok, so it really is something I'm missing. Take this 3-position switch (brand is Telemecanique):

Switch, 22mm, Selector OPERATOR, STD. LEVER, 3 Position, MAINT./MAINT./MAINT.


The official manufacturer's page is here.

So it has 3 positions and the positions are mainted (not spring-back momentary).
Here's the datasheet: http://www.alliedelec.com/Images/Pro...E/226-0093.PDF

Here's the page from the official allied catalog: Allied Electronics - Catalog
(See figure 11 or 12).

Nowhere does it explain to me how many poles or throws it has. I need at least double pole double throw with a dead neutral (center). How is someone to know? What am I missing? This could be a single pole switch with 3 throws for all I know.

Kal

__________________
TheElectricBrewery.com: A step by step guide to building your own electric brewery
My basement/bar/brewery build 2.0
kal is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 01:15 PM   #7
conpewter
Feedback Score: 0 reviews

conpewter's Avatar
Recipes

Join Date: Nov 2007
Location: East Dundee, Illinois
Posts: 5,130
Liked 41 Times on 36 Posts
Likes Given: 7

Default

Edit Edit:

Ok this one... but not waterproof

http://www.fruitridgetools.com/store...id=8171&dfid=1

Leviton 1288 brown DPDT (double pole, double throw), center-off, maintained contact switch (manufactured by Pass & Seymour). Industrial Specification Grade, back and side wired, grounding, rated 30A 120/277VAC. Features include:

* Positive switching action with center-off position
* Large silver cadmium-oxide contacts for long life and to prevent sticking, welding and excessive pitting
* Clamp-type terminals accept up to #10 copper wire
* Full rated current capacity on fluorescent, tungsten and resistive loads; motor load capacity up to 80% switch current rating

__________________

"People should not be afraid of their governments. Governments should be afraid of their people." - V

Primary: Nothin
Secondary: Shady Lord RIS, Water to Barleywine, Pumpkin wine, burnt mead
Kegged: Crappy infected mild
Bottles: Apfelwein, 999 Barleywine, Oatmeal Stout, Robust Porter, Robust smoked porter, Simcoe Smash


conpewter is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 01:21 PM   #8
conpewter
Feedback Score: 0 reviews

conpewter's Avatar
Recipes

Join Date: Nov 2007
Location: East Dundee, Illinois
Posts: 5,130
Liked 41 Times on 36 Posts
Likes Given: 7

Default

From the catalog on your allied switch

10 Amp, 600 V Contact Ratings

I still don't know how many poles it is though (Says up to 9 circuits?)

__________________

"People should not be afraid of their governments. Governments should be afraid of their people." - V

Primary: Nothin
Secondary: Shady Lord RIS, Water to Barleywine, Pumpkin wine, burnt mead
Kegged: Crappy infected mild
Bottles: Apfelwein, 999 Barleywine, Oatmeal Stout, Robust Porter, Robust smoked porter, Simcoe Smash

conpewter is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 01:26 PM   #9
somecallmetim
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2007
Location: Loudonville, OH.
Posts: 233
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by kal View Post
Ok, so it really is something I'm missing. Take this 3-position switch (brand is Telemecanique):

Switch, 22mm, Selector OPERATOR, STD. LEVER, 3 Position, MAINT./MAINT./MAINT.


The official manufacturer's page is here.

So it has 3 positions and the positions are mainted (not spring-back momentary).
Here's the datasheet: http://www.alliedelec.com/Images/Pro...E/226-0093.PDF

Here's the page from the official allied catalog: Allied Electronics - Catalog
(See figure 11 or 12).

Nowhere does it explain to me how many poles or throws it has. I need at least double pole double throw with a dead neutral (center). How is someone to know? What am I missing? This could be a single pole switch with 3 throws for all I know.

Kal
That is just the operator, you would need to buy the contacts separately. Many of the switches you are looking at are modular, you can put together nearly any combo you need.


I think this is the part you would need to complete that switch...

http://www.alliedelec.com/Search/Pro...&DESC=ZB4BZ103

With the 3 position operator it should be on-off-on. I would recommend you call to confirm before ordering.


Example #3 looks to be the same thing.
__________________

On Tap - Haus Ale, Baltic Porter.
Fermenting- SNPA Clone, Half Wit


somecallmetim is offline

Reply With Quote Quick reply to this message
Old 01-07-2009, 02:37 PM   #10
somecallmetim
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2007
Location: Loudonville, OH.
Posts: 233
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by conpewter View Post
From the catalog on your allied switch

10 Amp, 600 V Contact Ratings

I still don't know how many poles it is though (Says up to 9 circuits?)
If I understand correctly, Kal wants to switch the control between his PIDs & SSRs.

The one from fruitridge woud be perfect if he was switching the power side, overkill on the control side...
__________________

On Tap - Haus Ale, Baltic Porter.
Fermenting- SNPA Clone, Half Wit

somecallmetim is offline
