Default Brutus/More Beer 1100 Hybrid Stand Complete

It's been a 4-month process, but I'm finally 99% done with my brew stand. I showed my step dad the Brutus plans in BYO last year, and he decided that we should do it.

The stand is a hybrid between a Brutus 10 and More Beer's 1100. We used Lonnie's design as a base, but we also borrowed several More Beer design features. We also added a tippy dump and grain chute that aren't included on either stand.

Features:

  • We designed the stand to be longer and a bit wider to accept the 15 gallon More Beer heavy duty kettles. We also designed it to be able to accept the 26 gallon kettles as well, in case I ever want to scale up.
  • The middle kettle is held in a tippy dump. The kettle and burner are raised to allow it to swing.
  • The grain chute is removable. It clips over the frame in the back when needed. When not used, it clips on the side of the frame near the boil kettle, acting as a wind shield.
  • We used the More Beer set up for the automated HLT and SMART. Both use Ranco controllers.
  • We used the Brutus gas beam, but moved it to the front to allow for easier access to the ball valves controlling the burners.
  • The control panel design and mounting is also from the More Beer structure.
  • The liquid returns in the mash tun and boil kettle are a cross between the Brutus and More Beer stands. I've also incorporated Jamil's whirpool chiller as the boil kettle return.
  • We also ran conduit from the control panel to protect the pump, temp probe and other wires.

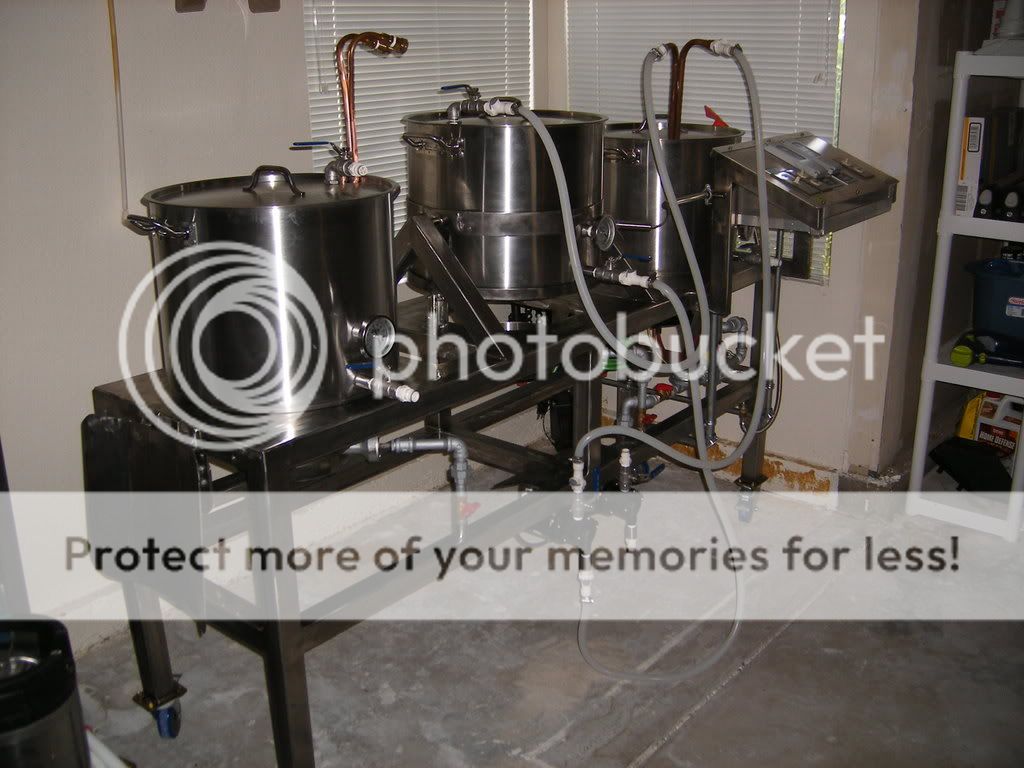

Here are a few pictures of the stand. I've documented the whole build in 16 Picasa albums. If anyone is interested in that detail, I can post links.









I still need to drill out the "crosshairs" on the plastic disconnects. They got stopped up with hops during my first brew in the system today. I think that I'll also put in some more work on the sanding the top. That should help to make it easier to clean if I get a boil over. I'd rather not spend an hour scrubbing with BKF like I did today. I think a smoother polish will work. I still need to order the last few name plates for the control panel also.

I've seen many stands on homebrewtalk that gave me ideas and pointers. Thank you to everyone. I want to give a big thank you to kladue for the help with the wiring of the ignition module,. That one was driving us nuts. Thanks also to Lonnie for the inspiration with the Brutus plans in BYO. This probably wouldn't have happened without them.
__________________
cdburg is offline
Bornmean Likes This
Reply With Quote Quick reply to this message
Old 07-21-2008, 06:12 AM   #2
Jaybird
Sponsor
HomeBrewTalk 2012 Vendor Giveaway Participate
Vendor Ads
Feedback Score: 2 reviews

Jaybird's Avatar
Recipes

Join Date: Jul 2006
Location: Nor*Cal
Posts: 6,098
Liked 415 Times on 303 Posts
Likes Given: 153

Default

Damn Bud thats BAD A$$ Nice work. have you brewed on it yet?
JJ

__________________
Need a False Bottom for your Keg, Kettle or Cooler?

I have been making custom False Bottoms for just about everything since 2008

Nor Cal Brewing Solutions, Reddings local homebrew store
(530)243-BEER and (530)221-WINE


Still have questions PM me here or hit the website.

http://www.norcalbrewingsolutions.com and like us on Facebook https://www.facebook.com/NorCalBrewingSolutionsfor Facebook only promos too
Smoke Cigars? www.stogietoys.com
Jaybird is offline

Reply With Quote Quick reply to this message
Old 07-21-2008, 12:30 PM   #3
evanmars
EAC Wannabe
Feedback Score: 0 reviews

evanmars's Avatar
Recipes

Join Date: Dec 2006
Location: Springport, Michigan
Posts: 882
Liked 39 Times on 28 Posts
Likes Given: 9

Default

Quote:
Originally Posted by cdburg View Post
I still need to drill out the "crosshairs" on the plastic disconnects. They got stopped up with hops during my first brew in the system today. I think that I'll also put in some more work on the sanding the top. That should help to make it easier to clean if I get a boil over. I'd rather not spend an hour scrubbing with BKF like I did today. I think a smoother polish will work. I still need to order the last few name plates for the control panel also.
I think he brewed on it...
__________________
Consistency is only a virtue if you're not a screwup

Primary - Pumpkin Pie Ale
Secondary - 0
Kegged - 0 No kegs anymore :(
Bottled - Raspberry Blonde
evanmars is offline

Reply With Quote Quick reply to this message
Old 07-21-2008, 01:03 PM   #4
delpo
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Posts: 42
Default

Would love to see the details of the build. If not too much trouble, could you please post the links or PM?

Thanks.

__________________
delpo is offline

Reply With Quote Quick reply to this message
Old 07-21-2008, 01:51 PM   #5
Lil' Sparky
Cowboys EAC
Feedback Score: 0 reviews

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 4,013
Liked 50 Times on 33 Posts

Default

Wow! You really SUCK!

That's probably the most professional looking DIY system I've ever seen. Great job!!!

__________________
Quote:
Originally Posted by duffman2 View Post
I dub this beer the Double Slutty Triple Nutty Bodacious Booty Brunette!
Lil' Sparky is offline

Reply With Quote Quick reply to this message
Old 07-21-2008, 02:31 PM   #6
cdburg
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2006
Location: Sacramento, CA
Posts: 352
Liked 7 Times on 5 Posts
Likes Given: 4

Default

Yup. I brewed on it yesterday. Everything works as expected. The plastic disconnect on the boil kettle clogged during recirculation. That's why I need to remove the plastic crosshairs on the inside of each of the disconnects. That should fix it for future batches.

Other than that, it worked great. I need to get used to a new system. The brew day took 9 hours, including cleaning it first. I hope to cut that down to 4-5 hours in the future.

Thanks for the compliments. My step dad did all the welding. He also did a lot of the design work, after I told him what I wanted. He's a contractor, so he takes quality very seriously. He also comes up with some unique solutions to problems. I couldn't be more pleased with how it turned out.

__________________
cdburg is offline

Reply With Quote Quick reply to this message
Old 07-21-2008, 02:39 PM   #7
cdburg
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2006
Location: Sacramento, CA
Posts: 352
Liked 7 Times on 5 Posts
Likes Given: 4

Default Links to Picasa Albums Documenting the Build

These are the 16 Google Picasa albums documenting the build from the very beginning. Hopefully the links work.

If anyone has any questions, fee free to post them.

Weekend 1: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 2: Picasa Web Albums - Chris - Brew Stand Da...

Weekend 3: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 4: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 5: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 6: Picasa Web Albums - Chris - Brew Stand Da...

Weekend 7: Picasa Web Albums - Chris - Brew Stand - ...

Weekend 8: Picasa Web Albums - Chris - Brew Stand - ...

Weekend 9: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 10: Picasa Web Albums - Chris - Brew Stand Da...

Weekend 11: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 12: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 13: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 14: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 15: Picasa Web Albums - Chris - Brew Stand Bu...

Weekend 16: Picasa Web Albums - Chris - Brew Stand Bu...\

UPDATES/ENHANCEMENTS 11/2009 (pump mount change, minor stand fixes): Enhancements/Fixes to Stand

UPDATES/ ENHANCEMENTS 1/2010 (plumbing and burner enhancements, minor stand fixes): Enhancements/ Fixes to Stand

__________________

Reason: Added "UPDATES/ ENHANCEMENTS 1/2010" Picasa link
cdburg is offline
2
People Like This
Reply With Quote Quick reply to this message
Old 07-21-2008, 04:01 PM   #8
p4ck37p1mp
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2008
Location: Acworth, GA
Posts: 399
Liked 1 Times on 1 Posts

Default

Man, I just went through all your pics of the build. I need to learn to weld! I'm bookmarking this thread, someday when I have the funds and the welding skills I will be replicating this. How wide are your kettles? My 100 qt kettles are 20" in diameter, I'd have to allow for that but otherwise I think I'll more or less 'borrow' your ideas.

__________________
p4ck37p1mp is offline

Reply With Quote Quick reply to this message
Old 07-21-2008, 04:58 PM   #9
nathan
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2008
Location: NC
Posts: 958
Liked 4 Times on 4 Posts

Default

Any particular reason you are using two types of burners?

Where did you order them from?

__________________

______________________________________
beer.

nathan is offline

Reply With Quote Quick reply to this message
Old 07-21-2008, 05:36 PM   #10
Boerderij_Kabouter
Feedback Score: 0 reviews

Boerderij_Kabouter's Avatar
Recipes

Join Date: Dec 2007
Location: Oconomowoc, Wisconsin
Posts: 8,461
Liked 123 Times on 104 Posts
Likes Given: 11

Default

Wow!!! Very impressive! That is one awesome brewery you have! Thanks for sharing

__________________
2P-Twent-E Simple Brew DITCHES 1 DITCHES 2 Fermentolagertaporator side-by-side ferm Twelve Hopostles Labels
Boerderij_Kabouter is offline
