Old 12-08-2012, 06:40 AM   #101
Irrenarzt
HNIC
Feedback Score: 2 reviews

Irrenarzt's Avatar
Recipes

Join Date: Aug 2009
Location: Half a mile from Tucson
Posts: 1,904
Liked 156 Times on 114 Posts
Likes Given: 91

Default

Doesn't sound good. I'm sorry to hear. Are you running any kind of heat shields around the burners? If so, have you tried running without them? It sounds like you aren't getting a good air/fuel ratio. I remember fussing with heat shields at one point and having similar issues and then no more issues once I removed them.

__________________
Irrenarzt is offline

Reply With Quote Quick reply to this message
Old 01-24-2013, 04:22 PM   #102
mbaker33
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2008
Posts: 134
Liked 2 Times on 2 Posts

Default

Irrenarzt, Are those the Blichmann 20's? I am looking to build a stand that will hold 3 of them (I only have one for now, but I'm trying to plan for the future) what is the spacing between the two beams that support the blichmann's, and also, what is the space between the two blichmanns.

Thanks in advance.

__________________
mbaker33 is offline

Reply With Quote Quick reply to this message
Old 01-28-2013, 08:03 PM   #103
Irrenarzt
HNIC
Feedback Score: 2 reviews

Irrenarzt's Avatar
Recipes

Join Date: Aug 2009
Location: Half a mile from Tucson
Posts: 1,904
Liked 156 Times on 114 Posts
Likes Given: 91

Default

No I only have one 20 and I use that as my BK for 10 gallon batches. My MT and HLT are 15's. My beam spacing is 12 x 12 on the BK and 12 x 10 on the 15's. 12 x 12 all round will work with three 20's...

Use the original Lonnie Mac dimensions and you'll be fine for three 20's.

__________________
Irrenarzt is offline

Reply With Quote Quick reply to this message
Old 01-28-2013, 08:27 PM   #104
Ricand
Feedback Score: 0 reviews

Ricand's Avatar
Recipes

Join Date: Dec 2009
Location: Sebastopol, CA
Posts: 705
Liked 14 Times on 13 Posts
Likes Given: 4

Default

I'm subscribed to this thread, since long ago I too was looking for updates. If I were to do it again, I'd definitely make it large enough for 25-30s. I'm wanting to upgrade to half barrels, since my beer seems to evaporate so fast from the taps. I ended up going with Stout Tanks and Kettles, since they had a tall 21.5 gallon that would fit on the stand. Even they bump handles. BTW, Stout Tanks and Kettles are beautifully done. I highly recommend them. They, like Blichmans are made in China so sometimes you have to wait.

__________________

If I was too drunk to remember it, it didn't happen.

If you got a good liver.. use it! - wife

CopperCat Brewery

Ricand is offline

Reply With Quote Quick reply to this message
Old 01-29-2013, 12:44 AM   #105
Irrenarzt
HNIC
Feedback Score: 2 reviews

Irrenarzt's Avatar
Recipes

Join Date: Aug 2009
Location: Half a mile from Tucson
Posts: 1,904
Liked 156 Times on 114 Posts
Likes Given: 91

Default

I do like the stout tanks. However, after using Blingmanns for so long now, I think I would miss the sight glasses and their incredibly functional false bottom. Nothing beats their false bottom.

__________________
Irrenarzt is offline

Reply With Quote Quick reply to this message
Old 02-04-2013, 11:28 PM   #106
TrickyDick
Feedback Score: 1 reviews

TrickyDick's Avatar
Recipes

Join Date: Feb 2010
Location: near Orlando, FL
Posts: 2,155
Liked 148 Times on 118 Posts
Likes Given: 60

Default

Finally have "fixed" the problems was having with my rig. The ring burners sucked. I have replaced with burners from brewers hardware dot com. There must have been an issue with the pigtail hose I connected to the portable cylinder OR the cylinder itself was bad or poorly functional. I got invisible flame now in Florida daylight on all three burners!!

Propane guy has me plumbed to the buried tanks and a padlock ball valve for connection and a QD for the brew rig with 15 feet of hose!!

Now I just need to get some time to brew again!

TD

__________________
TrickyDick is offline

Reply With Quote Quick reply to this message
Old 02-05-2013, 01:19 AM   #107
Irrenarzt
HNIC
Feedback Score: 2 reviews

Irrenarzt's Avatar
Recipes

Join Date: Aug 2009
Location: Half a mile from Tucson
Posts: 1,904
Liked 156 Times on 114 Posts
Likes Given: 91

Default

Congrats TrickyDick!

I think saying the ring burners suck is a bit strong. They may not have worked with your particulars but I think they are a damn fine burner when they are working. There are a lot of schitty chinese castings out there so you need to sort through a lot of chaff to get some good ones but the Tejas ones kickass albeit at a high cost. The guy from my local club who bought my old frame has found a source for 40 each with a guarantee from a country store in Texas but I can't recall the name. Maybe he'll chime in.

Regardless, congrats on your successful upgrade.

__________________
Irrenarzt is offline

Reply With Quote Quick reply to this message
Old 02-05-2013, 01:32 PM   #108
TrickyDick
Feedback Score: 1 reviews

TrickyDick's Avatar
Recipes

Join Date: Feb 2010
Location: near Orlando, FL
Posts: 2,155
Liked 148 Times on 118 Posts
Likes Given: 60

Default

Quote:
Originally Posted by Irrenarzt
Congrats TrickyDick!

I think saying the ring burners suck is a bit strong. They may not have worked with your particulars but I think they are a damn fine burner when they are working. There are a lot of schitty chinese castings out there so you need to sort through a lot of chaff to get some good ones but the Tejas ones kickass albeit at a high cost. The guy from my local club who bought my old frame has found a source for 40 each with a guarantee from a country store in Texas but I can't recall the name. Maybe he'll chime in.

Regardless, congrats on your successful upgrade.
I guess you're probably right in that. When I had the ring burners they worked fine. Mine must've been the cheapie ones. Wish I had known a reliable source enforce changing everything, would have been a much easier "fix" than the path I took,and less expensive too!

One of these days I'll post some darn pics of the thing!

TD
__________________
TrickyDick is offline

Reply With Quote Quick reply to this message
Old 02-17-2013, 03:58 PM   #109
Irrenarzt
HNIC
Feedback Score: 2 reviews

Irrenarzt's Avatar
Recipes

Join Date: Aug 2009
Location: Half a mile from Tucson
Posts: 1,904
Liked 156 Times on 114 Posts
Likes Given: 91

Default

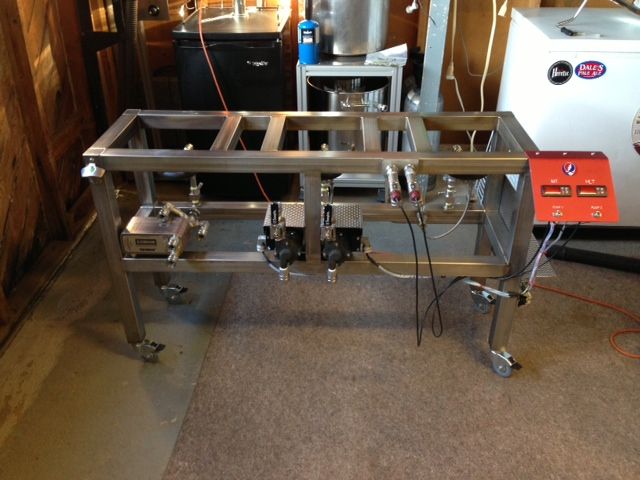

Here's my new rig. She's more closer to Lonnie's original design than the 8020 frame but with some nice upgrades.

__________________
Irrenarzt is offline

Reply With Quote Quick reply to this message
Old 02-18-2013, 11:29 AM   #110
TrickyDick
Feedback Score: 1 reviews

TrickyDick's Avatar
Recipes

Join Date: Feb 2010
Location: near Orlando, FL
Posts: 2,155
Liked 148 Times on 118 Posts
Likes Given: 60

Default

Looks very clean. Any details? Hard to see what you've done on big photo. Integral has manifold?
What's those connections by the plate chiller?

I gotta post some pics of my rig. Reassembled everything last night. Need to test for leaks and give a good cleaning then its back in business!!

TD

__________________
TrickyDick is offline

Reply With Quote Quick reply to this message
