Default BLING BLING Electric HERMS Conversion

WARNING, WARNING!!!!!!
DANGER, DANGER!!!!!
Electricity KILLS! I am not an electrician, nor do I claim to have any working knowlege of electricity and its properties!!!! Build this panel at your own risk!!!

This thread will document the conversion of my existing HERMS to ALL electric complete with PID, SSR, control panel etc.
I have already installed a new circuit in my garage using a DP 30A GFCI, #10 AWG wire to a (4) prong outlet, this will supply sufficient power to my MASH and to my BOIL halves of my control panel. It will require 13A during mashing, it will require 23A during the boil.

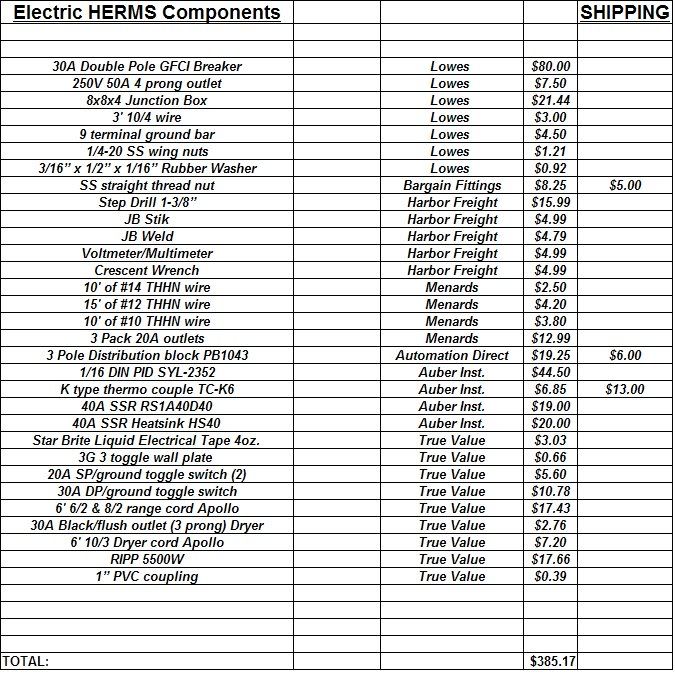

Here is a complete parts list. The remainder of this thread will document the entire build in separate phases. (this may be revised as the build requires)



PHASE #1. I will be converting my keggle to electric. Stay tuned for the pics, commentary and instructions to come.

DRILL A 1.25" HOLE THROUGH THE SIDE OF THE KEG AT THE 2.5 GALLON POSITION ON THE KEG

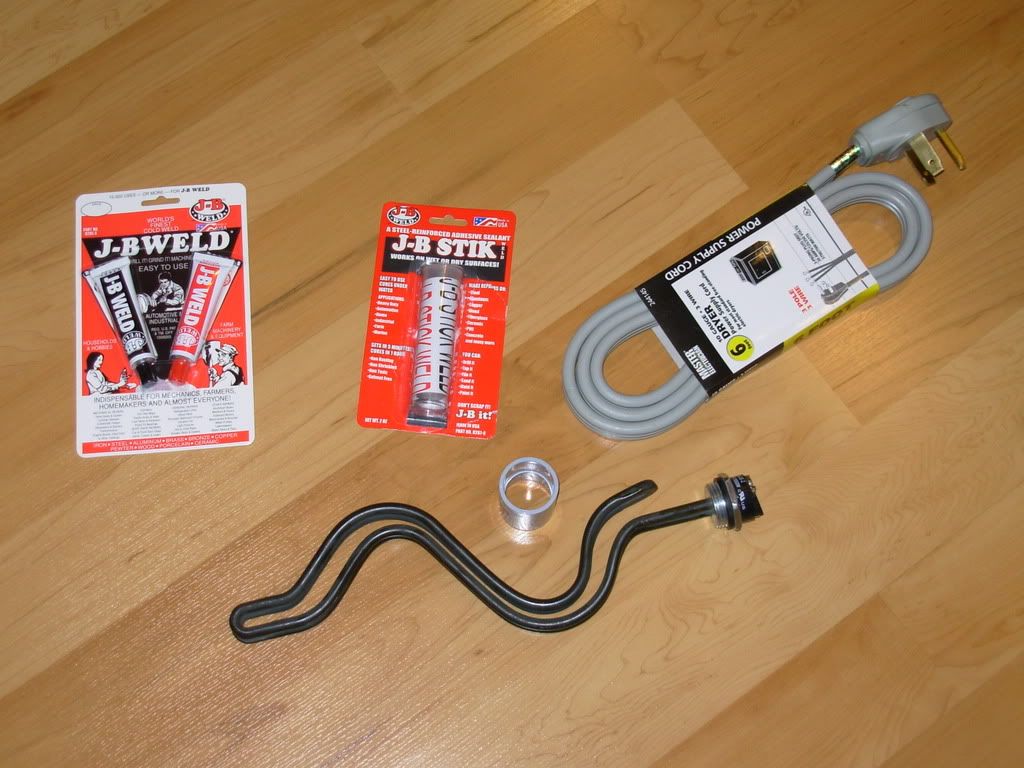

To build the element you will need:
5500W RIPP element
JB Stik
JB Weld
1" NON conductive PVC slip coupling
6' 10/3 dryer cord
(2) wire end terminals
Wire cutters
Philips screw driver

#1. Separate the three wires so that they are not attched approximately 2" from the terminal ends. (this will allow you to separate the ground wire and attach it to the keg if you place your thermowell in the same position that I placed mine)
#2. Cut approx. 1.5" from the end of the two HOT wires, yes this will remove the factory terminals.(this will allow the ground wire to reach the side of the keg with the element installed)
#3. Attach (2) new terminal ends to the two HOT wires on the cord.
#4. Slide the PVC coupler over the end of the cord
#5. Attach the two HOT wires to the element. Be sure to leave GROUND wire OUTSIDE of the coupler, this will attach to the keg.
#6. Knead a small ammount of JB Stik and roll it into a thin rope. Wrap the epoxy putty around the base of the element, where the PVC coupler will be seated. Press PVC coupling into place. Let set for 20 minutes.
#7. Mix two full tubes of JB Weld epoxy well and pour it into the void where the electrical connections lie. This will fill the void sufficiently to pot the connections and wires.
#8 Hang the element from the cord for 24 hours to allow proper curing of the epoxy.







PHASE #2. I will be building a control panel to run all of the components of this system, pump, BK boiler and HLT heater and mixer. PANEL NEARLY COMPLETE, PICS AND INSTRUCTIONS WILL BE POSTED BY JANUARY 1ST!!

__________________

The Pol is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 11:06 PM   #2
JayC
Feedback Score: 0 reviews

JayC's Avatar
Recipes

Join Date: Jan 2008
Location: Cleveland, OH
Posts: 111
Default

Eagerly awaiting updates.

__________________

I'll ferment anything that moves!

JayC is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 11:10 PM   #3
eschatz
Feedback Score: 0 reviews

eschatz's Avatar
Recipes

Join Date: Dec 2007
Location: Terre Haute, IN
Posts: 3,466
Liked 30 Times on 17 Posts

Default

Sometime I need to get up to Indy and see what this HERMS thing is all about. I'm an apartment brewer so it would be hard to have that set up but I'm interested.

__________________
play the bass, brew the beer

What's tappening? :D
eschatz is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 11:15 PM   #4
shecky
Moderator
Feedback Score: 0 reviews

shecky's Avatar
Recipes

Join Date: May 2008
Location: Watertown, CT
Posts: 38,017
Liked 3522 Times on 3409 Posts
Likes Given: 2

Default

Quote:
Originally Posted by eschatz View Post
Sometime I need to get up to Indy and see what this HERMS thing is all about. I'm an apartment brewer so it would be hard to have that set up but I'm interested.
How does one brew an apartment? I'm guessing you'd need a mammoth starter.
(sorry, couldn't resist)
__________________
shecky is offline
eman Likes This
Reply With Quote Quick reply to this message
Old 12-15-2008, 11:20 PM   #5
eschatz
Feedback Score: 0 reviews

eschatz's Avatar
Recipes

Join Date: Dec 2007
Location: Terre Haute, IN
Posts: 3,466
Liked 30 Times on 17 Posts

Default

I use a boat oar for a mash paddle and a hot tub for a boil kettle!

Seriously, I've got AG brewing in an apartment down to a frigin' science. It's not that hard if you can put up with rubbermaid storage boxes in your kitchen with carboys and fans!

__________________
play the bass, brew the beer

What's tappening? :D
eschatz is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 11:25 PM   #6
The Pol
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2007
Posts: 11,774
Liked 75 Times on 64 Posts
Likes Given: 14

Default

I plan to make this as detailed and complete as possible. I am trying to keep this build much more organized than my previous ones! My HERMS design is already being copied by several HBT'ers and I would like for this thread to be comprehensive enough to guide them and others through such a conversion. Stay tuned!

__________________

The Pol is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 11:26 PM   #7
The Pol
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2007
Posts: 11,774
Liked 75 Times on 64 Posts
Likes Given: 14

Default

Quote:
Originally Posted by eschatz View Post
Sometime I need to get up to Indy and see what this HERMS thing is all about. I'm an apartment brewer so it would be hard to have that set up but I'm interested.
I will be brewing again AS SOON as this conversion is complete. Id be glad to have another HBT member up here for a brew session.
__________________
The Pol is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 11:28 PM   #8
eschatz
Feedback Score: 0 reviews

eschatz's Avatar
Recipes

Join Date: Dec 2007
Location: Terre Haute, IN
Posts: 3,466
Liked 30 Times on 17 Posts

Default

That would be great. I'd love to see how you brew and bring up some of my beers.

__________________
play the bass, brew the beer

What's tappening? :D
eschatz is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 11:31 PM   #9
The Pol
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2007
Posts: 11,774
Liked 75 Times on 64 Posts
Likes Given: 14

Default

Great, I will have my Orange Cascade APA on tap at that point as well as my Hause Ale... or, maybe the Fire In The Hole... maybe.

__________________
The Pol is offline

Reply With Quote Quick reply to this message
Old 12-15-2008, 11:34 PM   #10
caskconditioned
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2007
Location: Colorado
Posts: 175
Default

Quote:
Originally Posted by The Pol View Post
I have already installed a new circuit in my garage using a DP 30A GFCI, #10 AWG wire to a (4) prong outlet, this will supply sufficient power to my MASH and to my BOIL halves of my control panel.
Photos:
Are you planning on using a waterproof outlet/plug to connect to the GFCI outlet? I also saw some that you twist so that you cannot accidentally disconnect them.
__________________
caskconditioned is offline
