Old 09-23-2009, 02:50 AM   #21
kladue
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: Turner, Oregon, Oregon most of the time now
Posts: 2,303
Liked 45 Times on 42 Posts

Default

For those folks that have to have the stainless steel look, buy the cheap brass version and have in nickel plated at your local chrome plating shop.

__________________
kladue is offline

Reply With Quote Quick reply to this message
Old 10-05-2009, 06:02 PM   #22
Saccharomyces
Be good to your yeast...
Feedback Score: 0 reviews

Saccharomyces's Avatar
Recipes

Join Date: Jun 2008
Location: Pflugerville, Texas
Posts: 5,443
Liked 78 Times on 52 Posts
Likes Given: 2

Default

I ordered one of the Dial Mfg. float valves and am going to try it out on my cooler.

__________________
[How to Calculate Mash Efficiency | Do I Need a Yeast Starter? | My Ghetto Fermentation Chamber | Twitter | 6 Gal. HDPE Fermenters | Slanting Yeast | No Sparge Brewing]

Quote:
Originally Posted by Soperbrew
big brother only monitors facebook and untappd
Saccharomyces is offline

Reply With Quote Quick reply to this message
Old 10-05-2009, 06:15 PM   #23
Catt22
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Posts: 4,998
Liked 57 Times on 55 Posts
Likes Given: 51

Default

Quote:
Originally Posted by kladue View Post
For those folks that have to have the stainless steel look, buy the cheap brass version and have in nickel plated at your local chrome plating shop.
Here's some from U S Plastics:

http://www.usplastic.com/catalog/pro...oduct_id=12596

The specs say the metal parts are SS and they are dirt cheap. The float is HDPE and NSF rated.
__________________
Catt22 is offline

Reply With Quote Quick reply to this message
Old 10-05-2009, 07:27 PM   #24
Sawdustguy
Feedback Score: 1 reviews
Recipes

Join Date: Mar 2009
Location: Manorville, New York
Posts: 2,761
Liked 28 Times on 25 Posts

Default

Quote:
Originally Posted by Catt22 View Post
Here's some from U S Plastics:

http://www.usplastic.com/catalog/pro...oduct_id=12596

The specs say the metal parts are SS and they are dirt cheap. The float is HDPE and NSF rated.
The US Plastic solution is almost perfect. I batch sparge because it is so simple so I would love to be able to attach a piece of silicone hose on the end to lay on top of the grain bed. It would be perfect if they had a 1/2" NPT on both ends.
__________________

Guy

Brewery URL: Black Dog Brewery NY

BBQ Team URL: Two Fat Polocks BBQ Team

Sawdustguy is offline

Reply With Quote Quick reply to this message
Old 10-05-2009, 08:46 PM   #25
Catt22
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Posts: 4,998
Liked 57 Times on 55 Posts
Likes Given: 51

Default

Quote:
Originally Posted by Sawdustguy View Post
The US Plastic solution is almost perfect. I batch sparge because it is so simple so I would love to be able to attach a piece of silicone hose on the end to lay on top of the grain bed. It would be perfect if they had a 1/2" NPT on both ends.
I took another look at that USP float valve. I'm not sure it would hold up to the heat exposure. They do have one with 1/2" NPT threads on the valve, but again, the valve body is PVC and I think it would soften when exposed to the heat. Close, but no cigar I think. I may have to settle for a brass swamp cooler valve. I don't have an aversion to brass as some do.
__________________
Catt22 is offline

Reply With Quote Quick reply to this message
Old 10-06-2009, 12:12 PM   #26
Sawdustguy
Feedback Score: 1 reviews
Recipes

Join Date: Mar 2009
Location: Manorville, New York
Posts: 2,761
Liked 28 Times on 25 Posts

Default

Quote:
Originally Posted by Catt22 View Post
I took another look at that USP float valve. I'm not sure it would hold up to the heat exposure. They do have one with 1/2" NPT threads on the valve, but again, the valve body is PVC and I think it would soften when exposed to the heat. Close, but no cigar I think. I may have to settle for a brass swamp cooler valve. I don't have an aversion to brass as some do.
Brass don't bother me either.
__________________

Guy

Brewery URL: Black Dog Brewery NY

BBQ Team URL: Two Fat Polocks BBQ Team

Sawdustguy is offline

Reply With Quote Quick reply to this message
Old 10-06-2009, 03:23 PM   #27
pjj2ba
Look under the recliner
Feedback Score: 0 reviews

pjj2ba's Avatar
Recipes

Join Date: Jul 2006
Location: State College, Pennsylvania
Posts: 3,427
Liked 192 Times on 158 Posts
Likes Given: 22

Default

Here's a different option and what I'd do if I decide to switch to fly sparging. I'd treat it just like an old fashioned gravity feed chromatography column. If you can make the lid to the mash tun airtight, then as the wort drains out, it is automatically replaced by the same amount of water from your HLT. No valves needed other than the one on the MLT outlet. The trick, is getting the lid to the MLT airtight. If you don't, then the hot water will likely flow in too fast, and might eventually start leaking. This would happen to me occassionally while running columns in grad school

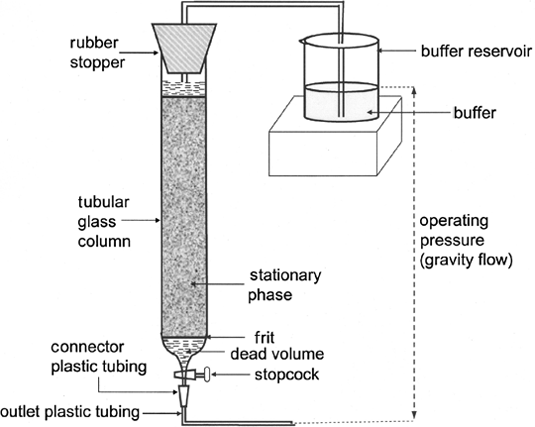

Like this. Look familiar at all?



Buffer reseervoir = HLT
Stationary phase = grain bed
Frit = false bottom/manifold

This is after all what we do in reality - column chromatography, and there is even a style of chromatagraphy called, you guessed it, batch chromatography

__________________
On Tap: Ger. Pils, OKZ (std Amer. lager), CZ Pils, Maibock,
Kegged and Aging/Lagering:CAP, CAP II, Wheat lager, Imperial Pilsner, Ger. Pils, OKZ (std Amer. lager), OKZ II (for base malt comparison), light beer - yes, light beer, Belgian IPA, IPA,
Secondary:
Primary: Pale Ale
Brewing soon: Saison
Recently kicked : ( IPA, Bock, Saison,
Pilsner Urquell Master Homebrewer
(1st NYC 2011, 2nd NYC 2012)
P U crowns winners in its inaugural master HB competition
pjj2ba is offline

Reply With Quote Quick reply to this message
Old 10-06-2009, 03:39 PM   #28
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,830
Liked 904 Times on 601 Posts
Likes Given: 26

Default

It would be pretty hard to get most MLT's to be airtight.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 10-07-2009, 02:51 PM   #29
pjj2ba
Look under the recliner
Feedback Score: 0 reviews

pjj2ba's Avatar
Recipes

Join Date: Jul 2006
Location: State College, Pennsylvania
Posts: 3,427
Liked 192 Times on 158 Posts
Likes Given: 22

Default

I'm thinking a wooden lid with a routed edge to hold a small tire innertube. (if I can find the right size). The innertube would be inflated to create a seal. One bonus is that the height is then adjustable. They make large home wine fermenters with a similar arrangement - an inflatable ring around the edge of the lid which allows them to be minimize headspace with variable sized batches

Like this:

Variable Volume Tank - 100L

__________________
On Tap: Ger. Pils, OKZ (std Amer. lager), CZ Pils, Maibock,
Kegged and Aging/Lagering:CAP, CAP II, Wheat lager, Imperial Pilsner, Ger. Pils, OKZ (std Amer. lager), OKZ II (for base malt comparison), light beer - yes, light beer, Belgian IPA, IPA,
Secondary:
Primary: Pale Ale
Brewing soon: Saison
Recently kicked : ( IPA, Bock, Saison,
Pilsner Urquell Master Homebrewer
(1st NYC 2011, 2nd NYC 2012)
P U crowns winners in its inaugural master HB competition
pjj2ba is offline

Reply With Quote Quick reply to this message
Old 11-04-2009, 10:40 PM   #30
wedge421
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Location: Harrisburg, PA
Posts: 957
Liked 11 Times on 10 Posts
Likes Given: 2

Default

THis might be a dumb question but how do you hook your sparge water line to this? Does it have some kind of Quick connect or something on the end? I cant tell what it is from the pics.

__________________
wedge421 is offline

Reply With Quote Quick reply to this message
