Default BIAB Basket sits too high... how to retain heat?

Hey guys,
So my thread name describes my problem. I made a custom kettle with a Bayou Classic 20.5 gallon kettle, installed a ball valve and sight glass (electric element to come), and have put feet on the basket to give it clearance. The problem I have is the basket now sits above the top of the kettle, which now is giving me a problem of keeping the heat enclosed during the mash. I have a temporary fix of wrapping the space between the lid and the top of the kettle with tinfoil and then wrapping a fleece blanket around that, but I am looking for a permanent fix. I am open to any and all solutions. I can't not use the basket as 1) I will have an element in there soon so I can't have the voile bag with a 25lb grain bill sitting directly on the element and 2) I paid $$ for the basket, so I need to use it! Thanks in advance for any suggestions. I don't have pictures currently, but if I need them to explain it better please let me know.

Cheers,
Chris

__________________
Chris7687 is offline

Reply With Quote Quick reply to this message
Old 01-25-2013, 09:58 PM   #3
Chris7687
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Palm Beach Gardens, FL
Posts: 479
Liked 11 Times on 9 Posts
Likes Given: 23

Default

Quote:
Originally Posted by wilserbrewer
Sell the basket on eBay.
And how to resolve the issue of the 25+ lb grain bag on top of the element?
__________________
Chris7687 is offline

Reply With Quote Quick reply to this message
Old 01-25-2013, 10:12 PM   #4
johns
Feedback Score: 1 reviews
Recipes

Join Date: Dec 2011
Location: warrenville, illinios
Posts: 453
Liked 34 Times on 32 Posts
Likes Given: 30

Default

How many inches of clearance do you have between the bottom of the basket and the bottom of the kettle?

I think the kettle and the basket must have several inches of clearance new. Am I right? DO you have any pictures?

__________________

Beauty lies in the hands of the beer holder
WC Fields

Kegged: Centennial Blond

Bottled: Mambo in your mouth, Cranberry mead, Peach Ginger mead, HopSlam, Citra DIPA

Primary: Vanilla Bean Dark Lord.

Secondary: Firestone Walker Wooky Jack

johns is offline

Reply With Quote Quick reply to this message
Old 01-25-2013, 10:15 PM   #5
wilserbrewer
BIAB Expert Tailor
Vendor Ads
Feedback Score: 9 reviews

wilserbrewer's Avatar
Recipes

Join Date: May 2007
Location: Jersey Shore, Jersey
Posts: 6,974
Liked 503 Times on 418 Posts
Likes Given: 9

Default

Quote:
Originally Posted by Chris7687

And how to resolve the issue of the 25+ lb grain bag on top of the element?
The grain and bag flow around the element and do not sit or push down on the element. More like a fluid. The bag should be oversized to allow this. It is not like 25 lbs sitting on the element at all, the grain and water combine to make a slurry that flows where it wants...not like a solid that sits heavy on the element. Also the grain has bouyancy...and weighs very little while submerged due to the water it has displaced...cheers!
wilserbrewer is online now

Reply With Quote Quick reply to this message
Old 01-25-2013, 10:28 PM   #6
Epimetheus
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2012
Location: Amherst, MA
Posts: 765
Liked 92 Times on 77 Posts
Likes Given: 54

Default

I have seen some elements with shields around them, either solid or punched full of holes. The elements were straight.

__________________
Whether beer is made in waders or in a toilet tank, as long as it is fun and the brewer likes how it tastes, who cares how it is brewed?
- VladOfTrub

Add your water analysis to the water report map! Instructions on this thread
Epimetheus is offline

Reply With Quote Quick reply to this message
Old 01-26-2013, 12:33 AM   #7
johns
Feedback Score: 1 reviews
Recipes

Join Date: Dec 2011
Location: warrenville, illinios
Posts: 453
Liked 34 Times on 32 Posts
Likes Given: 30

Default

Stainless Steel Stock Pot: 18.75 D x 17 H
Stainless: 0.8 mm / 20 Gauge
Full Size Perforated Boiling Basket
Vented Lid
Perforated stainless steel basket – 17.5 D x 13.25 H
Basket stainless steel – 0.6 mm / 22 gauge
There should be more then enough room. 17 inches hight minus 13.25 is less tehn 4 inches and should be more then enough room for your attachments. Maybe take off the feet and everything should fit swimmingly.

__________________

Beauty lies in the hands of the beer holder
WC Fields

Kegged: Centennial Blond

Bottled: Mambo in your mouth, Cranberry mead, Peach Ginger mead, HopSlam, Citra DIPA

Primary: Vanilla Bean Dark Lord.

Secondary: Firestone Walker Wooky Jack

johns is offline

Reply With Quote Quick reply to this message
Old 01-27-2013, 11:58 PM   #8
Chris7687
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Palm Beach Gardens, FL
Posts: 479
Liked 11 Times on 9 Posts
Likes Given: 23

Default

Hey guys,

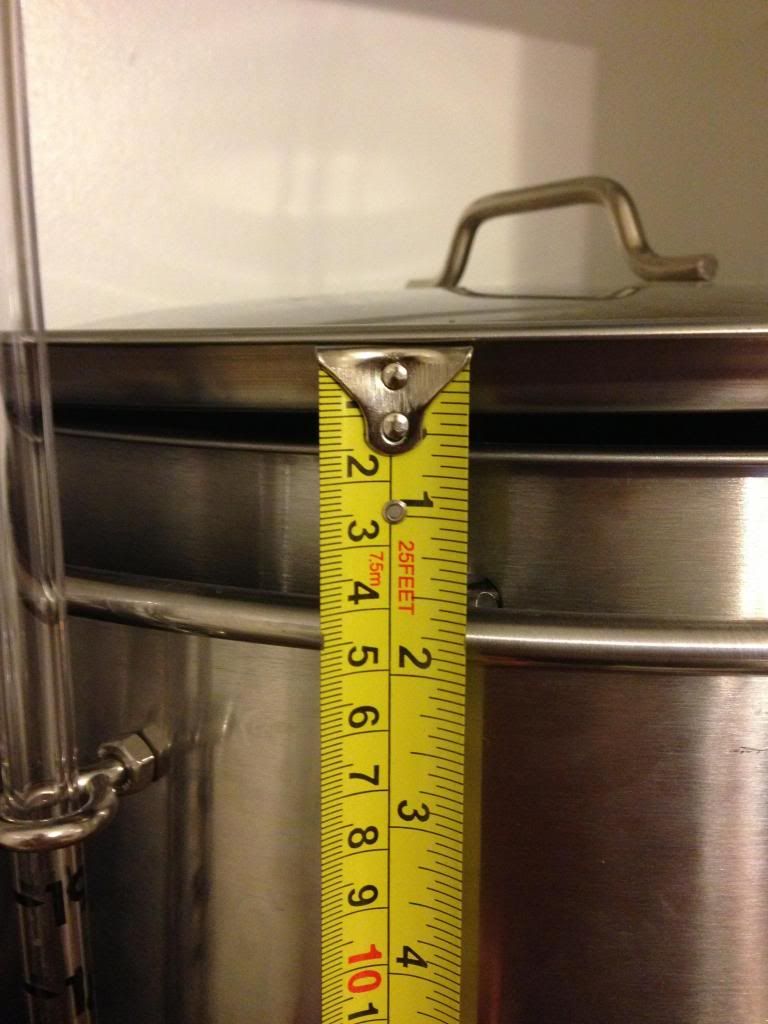

Here are some pictures.

__________________
Chris7687 is offline

Reply With Quote Quick reply to this message
Old 01-28-2013, 05:04 AM   #9
johns
Feedback Score: 1 reviews
Recipes

Join Date: Dec 2011
Location: warrenville, illinios
Posts: 453
Liked 34 Times on 32 Posts
Likes Given: 30

Default

I would say that the feet for the basket are too long for the kettle. How long are the feet? Can we see a picture of the feet with the tape measure?

__________________

Beauty lies in the hands of the beer holder
WC Fields

Kegged: Centennial Blond

Bottled: Mambo in your mouth, Cranberry mead, Peach Ginger mead, HopSlam, Citra DIPA

Primary: Vanilla Bean Dark Lord.

Secondary: Firestone Walker Wooky Jack

johns is offline

Reply With Quote Quick reply to this message
Old 01-28-2013, 12:52 PM   #10
Chris7687
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Palm Beach Gardens, FL
Posts: 479
Liked 11 Times on 9 Posts
Likes Given: 23

Default

I will put a picture of the feet up tonight. After re-reading wislerbrewer, the grain bouancy makes sense, but still would require some type of shielding from the bag as I am going to leave the element on during mashing with a recirculating pump to properly distribute the mash temp among the grain bed.

__________________
Chris7687 is offline

Reply With Quote Quick reply to this message
