Default bending copper

I just picked up 20ft of half in OD soft copper at Mernards for $23.00 pretty good price. I am going to build a immersion chiller with it and don't want to screw up, so do I use one of those spring thingies to bend so I don't kink it ? Do I need to heat the copper? should the coils be at the bottom or top or evenly spread out? What's your experiance with this? thanks

__________________
hammer one is offline

Reply With Quote Quick reply to this message
Old 03-19-2008, 11:45 PM   #2
JimC
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Ottawa, Ontario, Canada
Posts: 295
Liked 2 Times on 2 Posts

Default

`It can be bent by hand, but you might kink it, so one of those coil things is advisable. Also finding a round form to bend it around is handy. No need to heat it.

__________________
JimC is offline

Reply With Quote Quick reply to this message
Old 03-19-2008, 11:46 PM   #3
Schlenkerla
Feedback Score: 0 reviews

Schlenkerla's Avatar
Recipes

Join Date: Apr 2006
Location: Decatur, Illinois
Posts: 6,339
Liked 87 Times on 65 Posts
Likes Given: 7

Default Use your hands & the spring...

I bent mine around the deep fryer basket that came w/ my turkey fryer. Actually I formed it to the inside. It was too big otherwise, too much material was near the edge of the kettle.

I used the spring bender to do the top 90's leading out of kettle.

I used 50' though. Its really efficient.



__________________
Success is getting what you want. Happiness is wanting what you get. - Dale Carnegie

BS Nano-Brewery

Primary: SNPA Clone, Apfelwein
2ndary: Empty
Drinking: Dead Ringer IPA, Ma Duece (50 caliber) - Malt Liquor, Cranberry Wheat
Next: Cali-Common, American Amber, Smoked to Helles

|Myeast 50327|Easy Hop Oast|Smoked Homebrew|
Schlenkerla is offline

Reply With Quote Quick reply to this message
Old 03-20-2008, 01:52 AM   #4
IrregularPulse
Hobby Collector
Feedback Score: 0 reviews

IrregularPulse's Avatar
Recipes

Join Date: Nov 2007
Posts: 42,938
Liked 2771 Times on 2720 Posts
Likes Given: 120

Default

Whats this spring thingamigyg you speak of? I will be making an IC soon and haven't heard of this yet.

__________________
Tap Room Hobo

I should have stuck to four fingers in Vegas. :o - marubozo
IrregularPulse is offline

Reply With Quote Quick reply to this message
Old 03-20-2008, 02:03 AM   #5
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,043
Liked 992 Times on 661 Posts
Likes Given: 28

Default

You can bend the coil by hand around a form, jut don't try to get any tight 90 degree turns.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 03-20-2008, 02:18 AM   #6
Schlenkerla
Feedback Score: 0 reviews

Schlenkerla's Avatar
Recipes

Join Date: Apr 2006
Location: Decatur, Illinois
Posts: 6,339
Liked 87 Times on 65 Posts
Likes Given: 7

Default

Quote:
Originally Posted by IrregularPulse
Whats this spring thingamigyg you speak of? I will be making an IC soon and haven't heard of this yet.
This is a set. You slide them over the tubing and bend it. The tubing will bend but the pressure will only be on the outside. The inner part that would otherwise kink will slide inside the spring coil so it gets a clean good radius. It very simple and easy to use. I never got a kink and I bent up to a 90 very easily.

__________________
Success is getting what you want. Happiness is wanting what you get. - Dale Carnegie

BS Nano-Brewery

Primary: SNPA Clone, Apfelwein
2ndary: Empty
Drinking: Dead Ringer IPA, Ma Duece (50 caliber) - Malt Liquor, Cranberry Wheat
Next: Cali-Common, American Amber, Smoked to Helles

|Myeast 50327|Easy Hop Oast|Smoked Homebrew|
Schlenkerla is offline

Reply With Quote Quick reply to this message
Old 03-20-2008, 03:28 AM   #7
Nwcw2001
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2005
Location: Superior, CO
Posts: 268
Liked 3 Times on 3 Posts

Default

Get a corney keg, either own or borrow, and wrap it around the keg. It will fit nicely into just about any boil kettle. Straighten out the copper and start the coil and spin the keg as you wrap it, that way you stay close to the keg and minimize the chance for a kink.

__________________
Nwcw2001 is offline

Reply With Quote Quick reply to this message
Old 03-20-2008, 08:42 AM   #8
hammer one
Feedback Score: 0 reviews

hammer one's Avatar
Recipes

Join Date: Jan 2008
Posts: 304
Default

Thanks for all the advice. I've got a spring and a corny keg so I'm shure evrything will go just fine

__________________
hammer one is offline

Reply With Quote Quick reply to this message
Old 03-20-2008, 10:12 AM   #9
mrbowenz
Feedback Score: 0 reviews

mrbowenz's Avatar
Recipes

Join Date: Dec 2007
Location: Pennsylvania
Posts: 795
Liked 16 Times on 12 Posts
Likes Given: 4

Default

Here's a heat exchanger I recently did ( same as the IC ) , check it out:



Building a Heat Exchanger, or Immersion Chiller-they are pretty much one in the same.

This one is 1/2" OD type "L" copper :

So right out of the box , we are almost there, just need to re-coil the copper to the diameter I wanted:

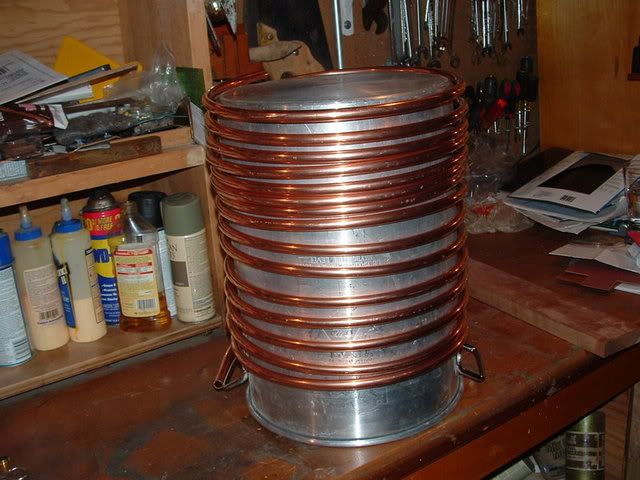

Re-Coiled around my grain pot



I like to use rigid copper to add to the stability and shape, so I added an elbow, and a lenght of pipe back up to the top




With one side rigid, I used my helper to strip some 14/3 copper wire, he's cheap,very reliable, and I teach him everything I know


__________________
mrbowenz is offline

Reply With Quote Quick reply to this message
Old 03-20-2008, 10:13 AM   #10
mrbowenz
Feedback Score: 0 reviews

mrbowenz's Avatar
Recipes

Join Date: Dec 2007
Location: Pennsylvania
Posts: 795
Liked 16 Times on 12 Posts
Likes Given: 4

Default

With a long piece of bare copper, I start the braiding process, I believe the equal spacing inproves the efficiency of the heat exchange, it also serves to add strenght to the shape.The process is, around the pipe, then 3 twists, then repeat. I use a scrap piece of 3/4" wood to keep the spacing even, a clamp completes the task



Finished with braiding, see how it stands on it's own, next up to solder each pipe to the riser on the vertical side



After a good cleaning, I solder each coil to the vertical pipe, this is a pain, but really worth the effort. Again, a few clamps make the job easier--- hint, lower your torch a bit, and use plenty of flux. Once finished, clean all joints with steelwool.



Installed into kettle, connected I/O, pretty simple
