Default Barley Crusher Motor

I am looking at motorizing my BC and was wondering if I could get some ideas on gearmotors to use. I would like to stay away from pulleys if at all possible. Suggestions are greatly appreciated!

schweaty is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 05:28 AM   #2
Ryno
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Olive Branch, MS
Posts: 269
Default

I was thinking the same thing. I bet you could make something work with this
- Harbor Freight Tools - Quality Tools at the Lowest Prices

__________________
Never put your mouth where you would'nt put your finger!
On tap: Apfelwein, Young's Double Choc Stout, Nut Brown, Delerium Tremens clone, Ordinary Bitter, American Pale Ale, DFH 90 min clone
Kegged: Irish Whiskey Barrel Barley Wine, ESB, Robust Porter
Fermenting: Robust Porter, Ryno' Wheat n Rye, Premium Bitter
Next up: Pliny the Elder, ESB, American Pils, Janets Brown, S&A IPA, Scottie's 80/-
Ryno is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 05:33 AM   #3
schweaty
Doe Re Mi Beer
Feedback Score: 0 reviews

schweaty's Avatar
Recipes

Join Date: Sep 2008
Location: Glass City
Posts: 1,951
Liked 35 Times on 19 Posts
Likes Given: 29

Default

Quote:
Originally Posted by Ryno View Post
I was thinking the same thing. I bet you could make something work with this
- Harbor Freight Tools - Quality Tools at the Lowest Prices
Looks good but the RPM might be high. From what I have read around here you want to stay under 300 RPM. I read about people having great success with the "Beefy" Bodine but I don't think the make it anymore.
schweaty is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 05:40 AM   #4
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,282
Liked 62 Times on 53 Posts
Likes Given: 122

Default

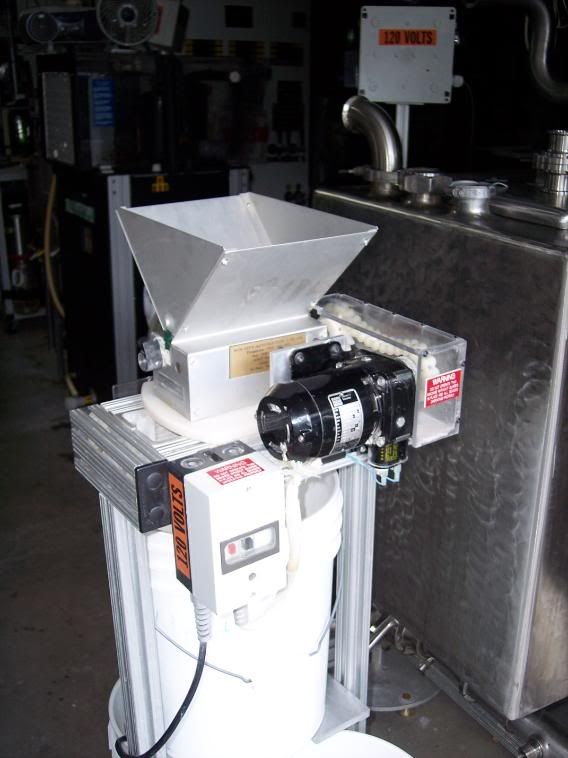

I use a Bodine gearmotor I had left over from an old project.
My mill runs at 94 RPM.
To keep the footprint as small as possible I don't use the direct drive method.
The mill has been running for almost 10 years.
Do a search and you will find great ideas.



Cheers,
ClaudiusB

ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 06:00 AM   #5
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,282
Liked 62 Times on 53 Posts
Likes Given: 122

Default

This Bodine should work well for you

Cheers,
ClaudiusB
__________________
My Brewery Pics
Grain Mill Glycol Chiller
Keg Washer
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 06:12 AM   #6
Jaybird
Sponsor
HomeBrewTalk 2012 Vendor Giveaway Participate
Vendor Ads
Feedback Score: 1 reviews

Jaybird's Avatar
Recipes

Join Date: Jul 2006
Location: Nor*Cal
Posts: 5,809
Liked 364 Times on 258 Posts
Likes Given: 128

Default

I am using a 1725 RPM 120 vac motor direct drive to the shaft of the crusher and using a Hz reducer that I got from my electrical wholesale house for $58. I use a 1/2 hp motor that I got from Harbor Freight. The Hz reducer is 1000W or 10A. I would be happy to get more of these and send them out as mentioned in another thread. They cost me $58 you all can have them for $58 just pay the paypal and shipping. They had about 5 on the shelves when I was there, but I am sure they can order more.
Good luck on the build
Cheers
Jay

__________________
Need a False Bottom for your Keg, Kettle or Cooler?

I have been making custom False Bottoms for just about everything since 2008

Nor Cal Brewing Solutions, Reddings local homebrew store
(530)243-BEER and (530)221-WINE


Still have questions PM me here or hit the website.

http://www.norcalbrewingsolutions.com and like us on Facebook https://www.facebook.com/NorCalBrewingSolutionsfor Facebook only promos too
Smoke Cigars? www.stogietoys.com
Jaybird is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 10:30 AM   #7
Sawdustguy
Feedback Score: 1 reviews
Recipes

Join Date: Mar 2009
Location: Manorville, New York
Posts: 2,772
Liked 28 Times on 25 Posts

Default

I just bought this DC Motor off Ebay for $10.00. The motor is 1/8 HP. works on 130 VDC, is 123 RPM and has 45 lbs/in Torque. I already have a PWM DC Motor Controller that will give me 130VDC at up to a 1/2 HP and more than enough current at stall speed.

__________________

Guy


Sawdustguy is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 06:32 PM   #8
rico567
Feedback Score: 0 reviews

rico567's Avatar
Recipes

Join Date: Apr 2008
Location: Central IL
Posts: 3,018
Liked 82 Times on 77 Posts
Likes Given: 21

Default

My thinking on how to power my mill (an "ugly junk" Corona mill that is being driven by an old 1/2" drill at present, and which grinds my grain bill just fine, thank you very much) ran something like this:

1. The trouble with AC is that the motors spin too fast, unless you use a pulley/belt to reduce RPM, which can be hard on the bearings of your crusher, and which require a shroud be constructed for safety. Either that or another technical accessory, such as the Hz controller specified above. You may get lucky and find a cheap AC gearmotor that will do that job, but I'm not counting on finding one cheap, and I don't want to spend any more on a power unit than I did on my mill ($24 delivered).

The trouble with DC is all the various voltages out there (such as the 130V motor above requiring a special power supply to run it)........except one, the familiar 12VDC that powers all manner of accessories on our vehicles.

Any auto wrecking yard ought to have mass quantities of this stuff, and pretty cheap if you're not looking for anything special. The most obvious geared-down low RPM motor would be a wiper unit. There are also other things.....I saw a transfer case motor coupled to a grinder in a You Tube video, only about 100 rpm. Great!

Apart from an old 12V / 25A power supply I have around about as massive as two concrete blocks, I also have a deep-cycle 12V battery that does absolutely nothing but sit there as backup power for one of my sump pumps. If you think about it, you probably have some source of 12V power sitting around....one of those little booster box things to start your car probably packs enough juice to do a batch of grain, etc.

__________________

“Malt does more than Milton can / To justify God’s ways to man”

-A. E. Housman (1859–1936). A Shropshire Lad , 1896.

rico567 is offline

Reply With Quote Quick reply to this message
Old 07-05-2009, 02:08 PM   #9
schweaty
Doe Re Mi Beer
Feedback Score: 0 reviews

schweaty's Avatar
Recipes

Join Date: Sep 2008
Location: Glass City
Posts: 1,951
Liked 35 Times on 19 Posts
Likes Given: 29

Default

Quote:
Originally Posted by ClaudiusB View Post
Does something like this need a speed controller or just hook up an on/off switch and its good to go?
__________________
Spent Grain Dog Treats
My Brewery Build
schweaty is offline

Reply With Quote Quick reply to this message
Old 07-05-2009, 02:38 PM   #10
Sawdustguy
Feedback Score: 1 reviews
Recipes

Join Date: Mar 2009
Location: Manorville, New York
Posts: 2,772
Liked 28 Times on 25 Posts

Default

Quote:
Originally Posted by schweaty View Post
Does something like this need a speed controller or just hook up an on/off switch and its good to go?
Nope, no speed controller needed. All you have to do is wire it to 115 VAC and you are set. You can pull the gear off the motor and direct couple the motor to your mill with a lovejoy coupler.
__________________

Guy

Sawdustguy is offline

Reply With Quote Quick reply to this message
