Old 06-10-2010, 09:23 PM   #61
camiller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Omaha, NE
Posts: 1,882
Liked 27 Times on 27 Posts
Likes Given: 9

Default

Quote:
Originally Posted by Walker View Post
Steel frame table that used to be in a lab at the company I worked for 10 years ago (still has the inventory tag on the back of it, too). They went out of business and sold all the furniture in 2001. Spent $5 on that table.

It sat around essentially unused for the past 5 years and just happened to be sitting in the garage when I started working on the system. Without really thinking about it, I just started bolting and screwing things to it.
Puts my "Old door thrown across a couple sawhorses" to shame.
camiller is offline

Reply With Quote Quick reply to this message
Old 06-10-2010, 09:41 PM   #62
MacBruver
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Orange County, CA
Posts: 616
Liked 3 Times on 3 Posts
Likes Given: 1

Default

Quote:
Originally Posted by klyph View Post
It's my buddy Phil's International Scout. I'm not sure what year, but I'll ask him.
I misread "Scout" as Stout, and had visions of a barrel-aged "international" stout, whatever that would mean.
__________________
Primary:
Secondary: Bee Cave Robust Porter (with coconut)
Kegged: Cascade/Citra Amber Ale
MacBruver is offline

Reply With Quote Quick reply to this message
Old 07-28-2010, 08:10 AM   #63
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default

So after seeing posts about using a RIMS tube for on demand strike/sparge water, I decided to build one to see if I could make it work.

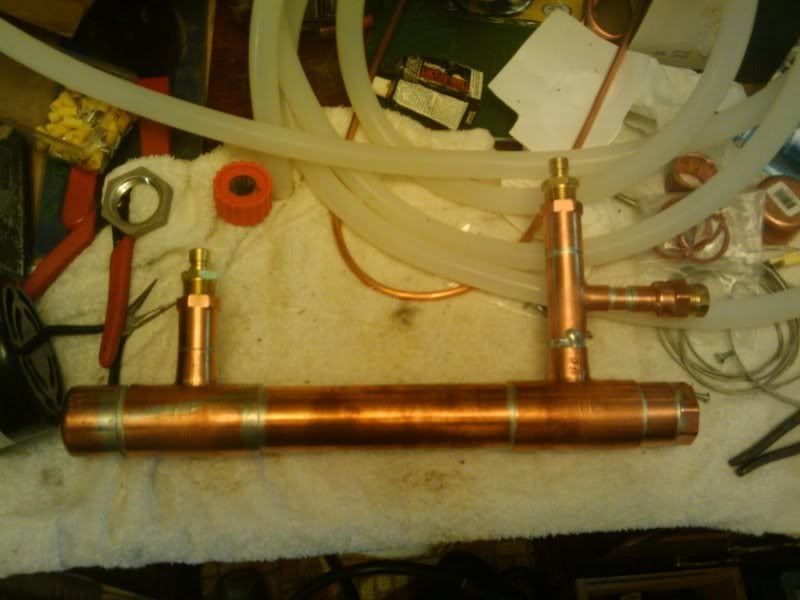

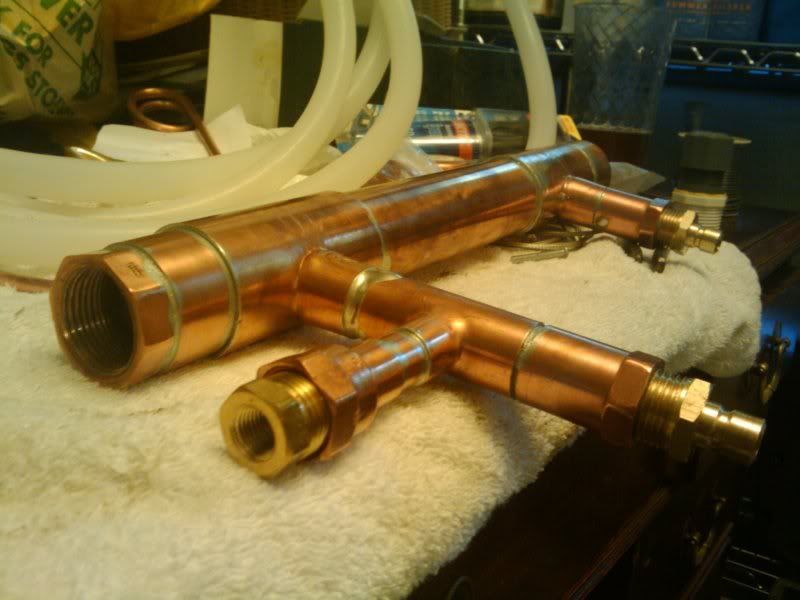

Here's the RIMS tube, McMaster quick disconnects, and Homeboy Depot everything else.





DISCLAIMER:
Do not replicate my wiring technique. It is dangerous, hazardous, irresponsible, poorly executed, and will probably kill me eventually. This is shown for demonstration purposes only, to be used by an untrained non-professional, do not attempt to recreate these stunts at home.

I hope that keeps the code-nazis at bay, here goes.

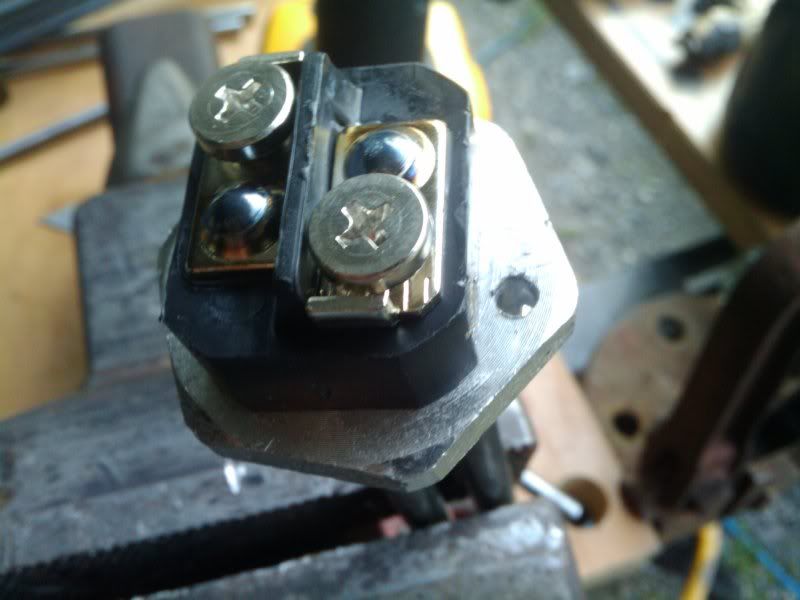

Drill hole

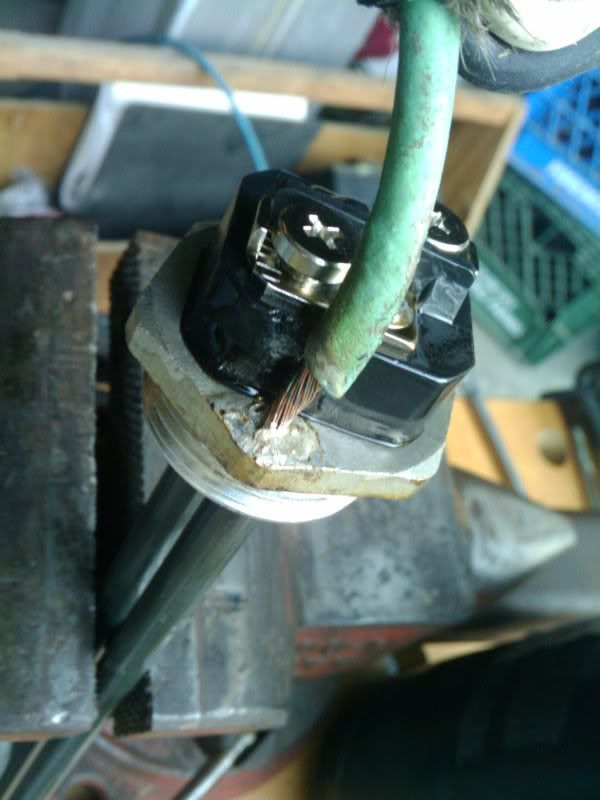

Solder ground wire

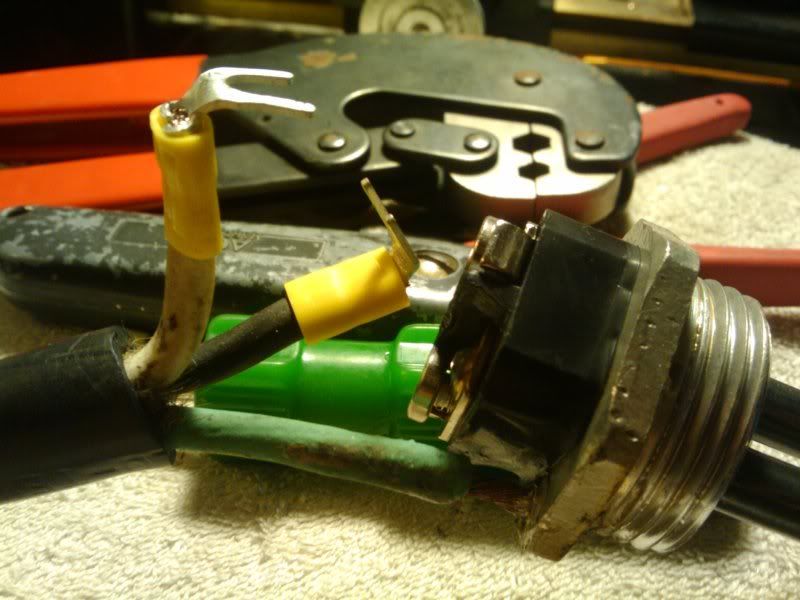

Hot side

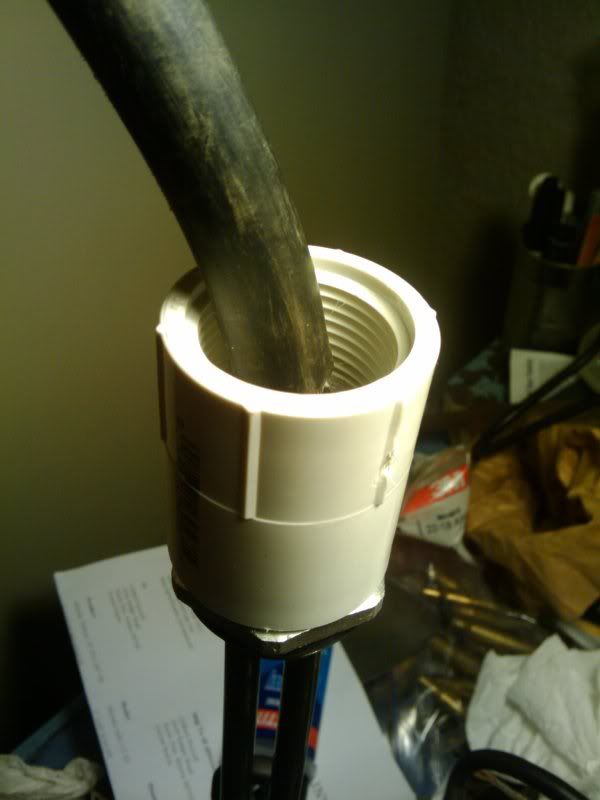

1" PVC adaptor


Potted with this


I then put a strain relief that threads into that coupler on, I'll take pictures of all that later, the epoxy is curing overnight, so I'll get more pictures/work done tomorrow. I'm tired/drunk now, so more later.

Comments/suggestions/offensive insults to my ethnic heritage welcomed.

__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
Old 07-30-2010, 05:32 PM   #64
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default

Apologies for the crappy pics and video, my phone was all I had with me.












__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
Old 07-31-2010, 12:40 AM   #65
Hogcrewer
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2005
Location: North Pole, AK
Posts: 85
Default

Damn Klyph, I might have to convert to electricity. Looks good.

__________________
Hogcrewer is offline

Reply With Quote Quick reply to this message
Old 07-31-2010, 01:09 AM   #66
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default

I'll never go back to propane. If you have a laundry hook-up, you have everything you need, 240v power, water, and I'm making a vent hood for the steam that will tie in to the dryer exhaust. Indoor brewing at 40 below is where it's at. Lemme know if you're serious about it, I'd be happy to lend a hand.

__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
Old 08-09-2010, 06:07 PM   #67
Homercidal
Moderator
Feedback Score: 0 reviews

Homercidal's Avatar
Recipes

Join Date: Feb 2008
Location: Reed City, MI
Posts: 22,837
Liked 1900 Times on 1371 Posts
Likes Given: 1045

Default

Oh, I'm so going to try and get a RIMS going some day. I have 220V in the garage where I brew, so this should be a no-brainer. But it seems to be taking forever to get a spigot on my kettle, so look for RIMS to happen in 2012, just in time for the apocalypse.

I already have a controller, just need to figure out what relay to get and how to wire it, and start collecting the material.

Oh, and I got an ammo can, which is ultra-cool BTW.

__________________
Homercidal is offline

Reply With Quote Quick reply to this message
Old 10-05-2010, 01:37 AM   #68
rtichota
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Centennial, CO
Posts: 51
Default

Klyph, did you ever get your on-demand sparge water dialed in? I'd be interested to know how that went.

__________________
rtichota is offline

Reply With Quote Quick reply to this message
Old 10-05-2010, 02:11 AM   #69
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 38 Times on 34 Posts
Likes Given: 3

Default

Quote:
Originally Posted by rtichota View Post
Klyph, did you ever get your on-demand sparge water dialed in? I'd be interested to know how that went.
No, I never did, but I know it's possible. I just need a gate valve to more precisely control the flow. The flow rate will only be good for fly sparging, however this is also going from 50F to 170F, the warmer the input water, the higher the flow rate can be. If I run it off the hot water tap, on demand sparge water will be easy.
If I heat strike water in the BK, I can eliminate the need for a HLT altogether. I think Sizz already does this. Anyway, more testing to come.
__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote Quick reply to this message
Old 10-05-2010, 07:54 PM   #70
jfkriege
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2009
Location: Bloomington, IN
Posts: 419
Liked 1 Times on 1 Posts

Default

What was the fitting that you used to screw the heating element into? And what was your tube size overall?

__________________
The Modular Electric Brewery
jfkriege is offline

Reply With Quote Quick reply to this message
