Default Adding a pilot light

The recent article in BYO magazine on building a brewery stand (Brutus 10, I think they called it) has me contemplating adding an automated recirculation temp control to a keggle in my system for a mash tun. The author of that article uses a low-pressure propane system, and made a pilot light by just drilling small holes in a block of brass and running propane through it.
Does anybody know if this will work in a high-pressure propane system? (I use Hurricane burners)
Or any tips or links to info on adding a pilot light would be appreciated.

__________________
Isles of Langerhans Brewery
Alemental is offline

Reply With Quote Quick reply to this message
Old 11-24-2007, 06:39 PM   #2
Yuri_Rage
Gritty.
Feedback Score: 0 reviews

Yuri_Rage's Avatar
Recipes

Join Date: Jul 2006
Location: Southwest
Posts: 13,897
Liked 603 Times on 373 Posts
Likes Given: 54

Default

Quote:
Originally Posted by Alemental
Does anybody know if this will work in a high-pressure propane system?
No reason it wouldn't work. Pay attention to the article - the holes are drilled in a very specific pattern to keep the pilot lit even in a light breeze. Also, start with REALLY small holes (#60 or smaller) since you're using high pressure. A set of drill bits like this might be helpful:

__________________
Homebrewed Blog..........YouTube Channel .......... Shirts, posters, etc
Yuri_Rage is offline

Reply With Quote Quick reply to this message
Old 11-24-2007, 06:53 PM   #3
Alemental
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Grand Rapids, MI
Posts: 123
Default

I'm glad that you pointed out the hole pattern. I glossed over the fact that 4 sides would keep at least one side shielded at all times.
I have number drills, I think that the smallest in my set is a #60, but I'll start smaller if I can.

__________________
Isles of Langerhans Brewery
Alemental is offline

Reply With Quote Quick reply to this message
Old 11-24-2007, 10:47 PM   #4
HenryHill
Feedback Score: 0 reviews

HenryHill's Avatar
Recipes

Join Date: Mar 2007
Location: Perry, MI
Posts: 3,299
Liked 11 Times on 11 Posts
Likes Given: 6

Default

I know a feller that just used an orifice-no burner attached- to serve as the pilot.

__________________
Quote:
Originally Posted by orfy
Never mock another man's brewery.
Quote:
Originally Posted by IrregularPulse View Post
This is HBT of course. Normal Thread that goes every direction but the one intended. This forum should be scientific proof the beer causes ADD
HenryHill is offline

Reply With Quote Quick reply to this message
Old 11-25-2007, 01:02 AM   #5
Alemental
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Grand Rapids, MI
Posts: 123
Default

Quote:
Originally Posted by Henry Hill
I know a feller that just used an orifice-no burner attached- to serve as the pilot.
No kidding!! You mean just a piece of tube or pipe?
__________________
Isles of Langerhans Brewery
Alemental is offline

Reply With Quote Quick reply to this message
Old 11-25-2007, 04:40 AM   #6
Lonnie Mac
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Location: Bacliff, TX
Posts: 326
Liked 4 Times on 3 Posts

Default

Hi Alemental...

You know when I built Brutus 5, I had high pressure burners and a single capillary tube plumbed to the burner with a fitting and a single hole for the pilot. I had it positioned just a bit below the burner because when the burner lit it would snuff the flame out on the pilot. Once I found the right position for the single pilot it worked GREAT with my high pressure burner!

Look at Brutus Ten carefully and you can see that running the pilot is very easy in spite of the fact that I may have talked it up, and it will work for you. You simply need to get a small adjustable flame next to your burner. It may take a little fiddling, but it works… Let me know and I can send you better pics if need be. Maybe one or two of the old Brutus 5!

__________________

Lonnie Mac...
President of the Brutus Ten cult!

Lonnie Mac is offline

Reply With Quote Quick reply to this message
Old 11-25-2007, 01:48 PM   #7
Alemental
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Grand Rapids, MI
Posts: 123
Default

Good, coplink,
If it worked for you, it should work for me. One question: what is a capillary tube? A quick search shows them to be thin glass tubes.
By the way, I just bookmarked your website, and will be listening to your podcasts soon.
Thanks,
Bob.

__________________
Isles of Langerhans Brewery
Alemental is offline

Reply With Quote Quick reply to this message
Old 11-25-2007, 02:05 PM   #8
david_42
Feedback Score: 0 reviews

david_42's Avatar
Recipes

Join Date: Oct 2005
Location: Willamina & Oak Grove, Oregon, USA
Posts: 25,651
Liked 133 Times on 126 Posts

Default

A capillary tube is just a very small gage tube: glass, brass, copper, whatever. Small enough that the tube itself functions as a flow restricter. Back in the days when ballpoint pens had metal refills, I used an empty for a capillary.

__________________

Remember one unassailable statistic, as explained by the late, great George Carlin: "Just think of how stupid the average person is, and then realize half of them are even stupider!"

"I would like to die on Mars, just not on impact." Elon Musk

david_42 is offline

Reply With Quote Quick reply to this message
Old 11-25-2007, 04:03 PM   #9
Lonnie Mac
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2006
Location: Bacliff, TX
Posts: 326
Liked 4 Times on 3 Posts

Default

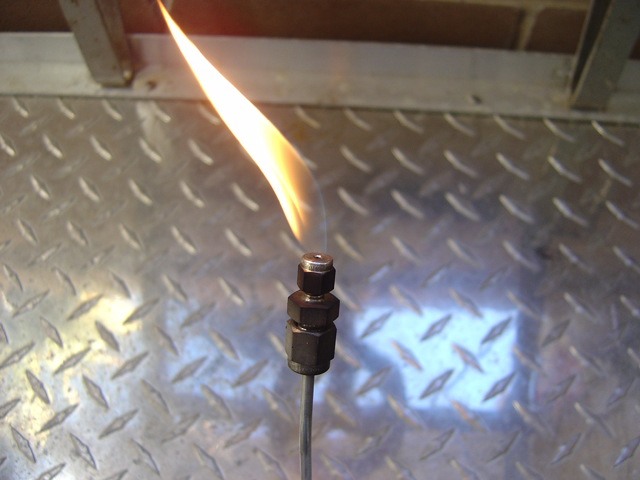

Very true... Mine was a very small dia SS tube with a swagelok fitting.

__________________

Lonnie Mac...
President of the Brutus Ten cult!

Lonnie Mac is offline

Reply With Quote Quick reply to this message
Old 11-26-2007, 10:21 PM   #10
HenryHill
Feedback Score: 0 reviews

HenryHill's Avatar
Recipes

Join Date: Mar 2007
Location: Perry, MI
Posts: 3,299
Liked 11 Times on 11 Posts
Likes Given: 6

Default

Quote:
Originally Posted by Alemental
No kidding!! You mean just a piece of tube or pipe?
Burner line, minus the burner, I believe.

http://blog.flaminio.net/blogs/index.php?cat=18
__________________
Quote:
Originally Posted by orfy
Never mock another man's brewery.
Quote:
Originally Posted by IrregularPulse View Post
This is HBT of course. Normal Thread that goes every direction but the one intended. This forum should be scientific proof the beer causes ADD
HenryHill is offline

Reply With Quote Quick reply to this message
